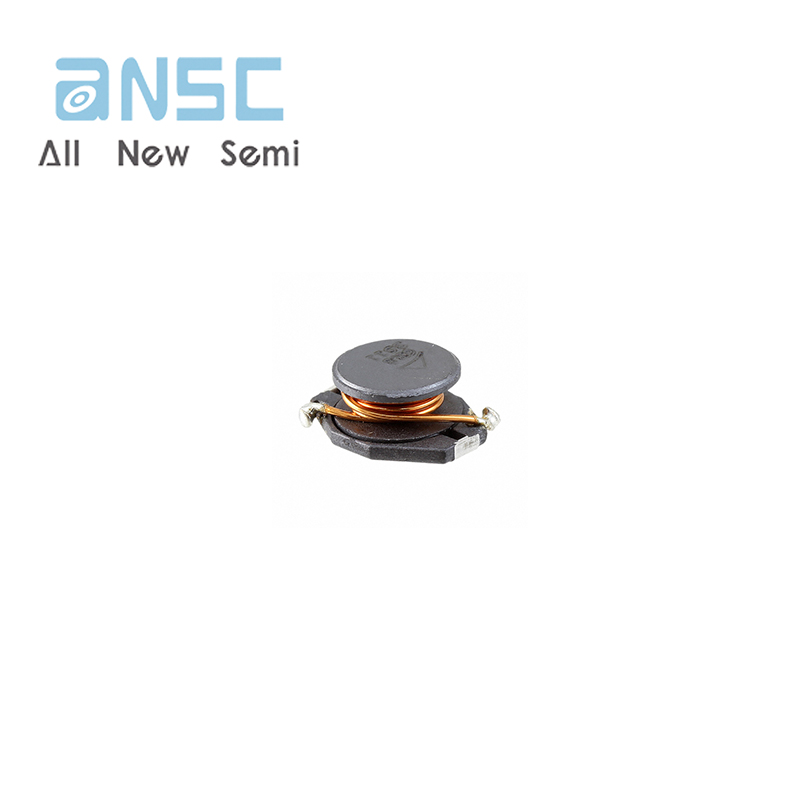

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original B82476B1224M100 Inductor FIXED IND 220UH Unshielded Drum Core, Wirewound Inductor 880 mA 530mOhm
Manufacturer
Manufacturer Product Number
B82476B1224M100
Description
Original B82476B1224M100 Inductor FIXED IND 220UH Unshielded Drum Core, Wirewound Inductor 880 mA 530mOhm Max Nonstandard
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - B82476B1224M100 |
|
Category |
Inductors, Coils, Chokes Fixed Inductors |
|
Mfr |
EPCOS - TDK Electronics |
|
Series |
B82476B1 |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Type |
Drum Core, Wirewound |
|
Material - Core |
Ferrite |
|
Inductance |
220 µH |
|
Tolerance |
±20% |
|
Current Rating (Amps) |
880 mA |
|
Current - Saturation (Isat) |
800mA |
|
Shielding |
Unshielded |
|
DC Resistance (DCR) |
530mOhm Max |
|
Q @ Freq |
- |
|
Frequency - Self Resonant |
- |
|
Ratings |
AEC-Q200 |
|
Operating Temperature |
-55°C ~ 150°C |
|
Inductance Frequency - Test |
100 kHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Nonstandard |
|
Supplier Device Package |
- |
|
Size / Dimension |
0.510" L x 0.370" W (12.95mm x 9.40mm) |
|
Height - Seated (Max) |
0.200" (5.08mm) |
Actual image of the product

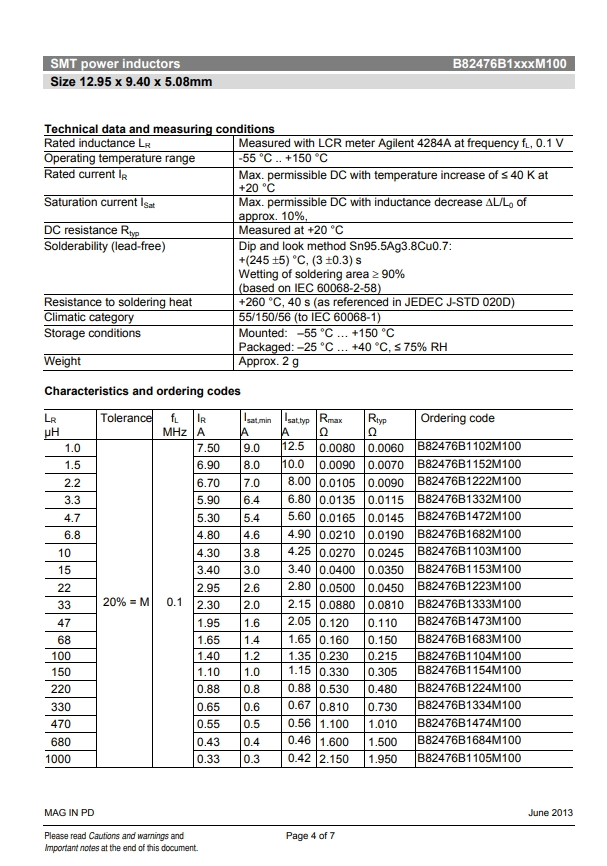

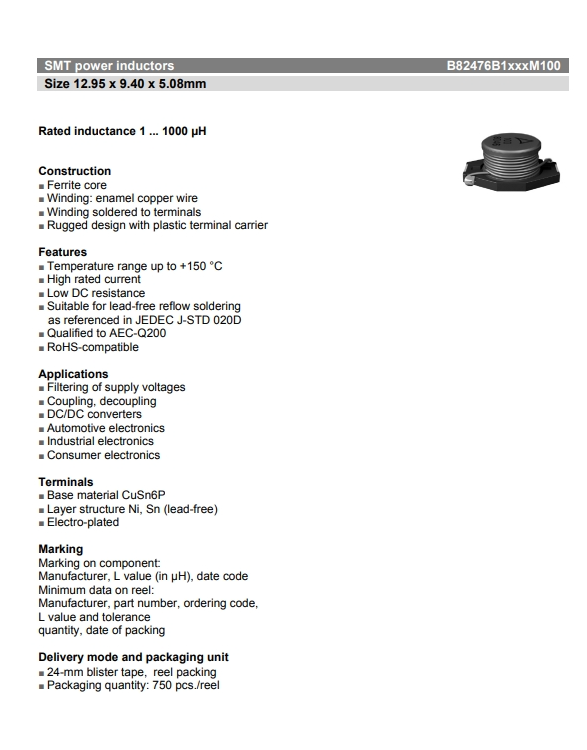

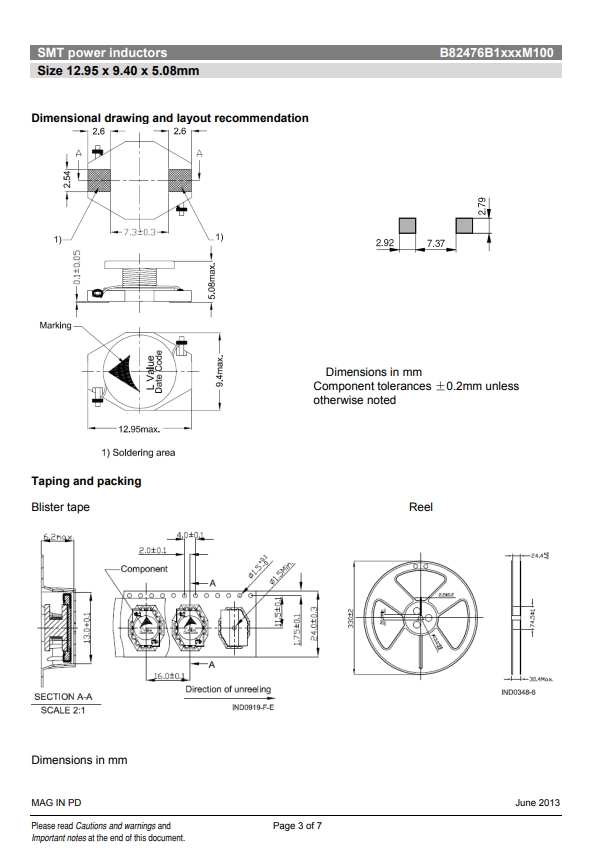

Product datasheet
For more information, please download
