Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original PA0277NL FIXED IND 700NH 10.7A 95MOHM SMD 700 nH Unshielded Inductor 10.7 A 95mOhm Max Nonstandard
Manufacturer Product Number
PA0277NL
Description
Original PA0277NL FIXED IND 700NH 10.7A 95MOHM SMD 700 nH Unshielded Inductor 10.7 A 95mOhm Max Nonstandard
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
HIGH FREQUENCY
EFD Platforms - EFD15, EFD20 and EFD25
Transformers
● Power: 30W to 180W
● Three Different Platforms: THT and SMT
● Low Profile Platforms: 8.4mm to 13.5mm
● Custom designs available
Product Description
| Type | Description |
| ANSC PART# | ANSC - PA0277NL |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | VOLTA 2 |
| Packaging | Tray |
| Part Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 700 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10.7 A |
| Current - Saturation (Isat) | 12.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.350" L x 0.250" W (8.89mm x 6.35mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |

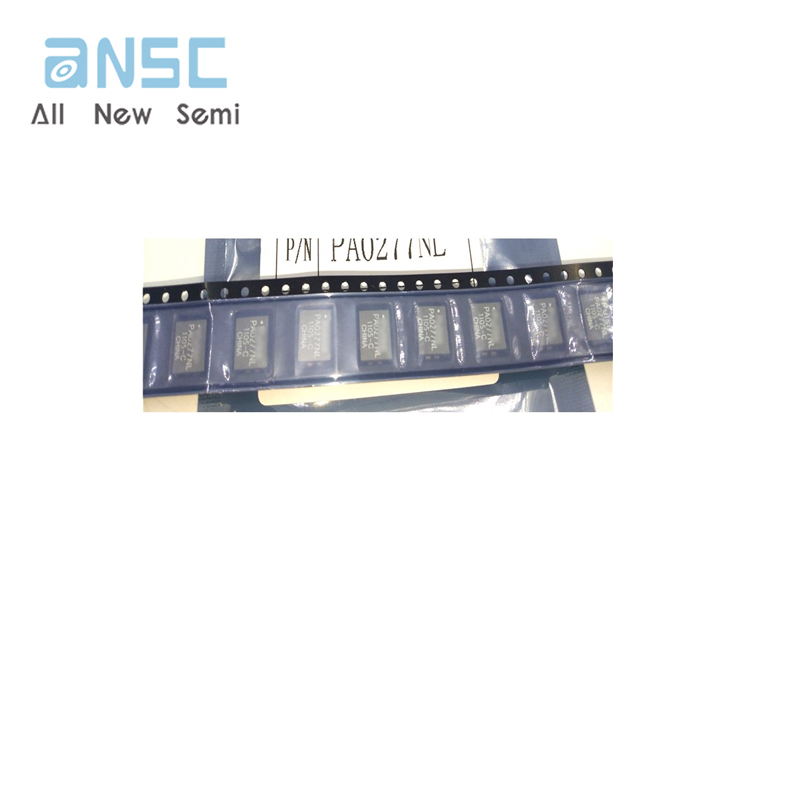

Actual image of the product

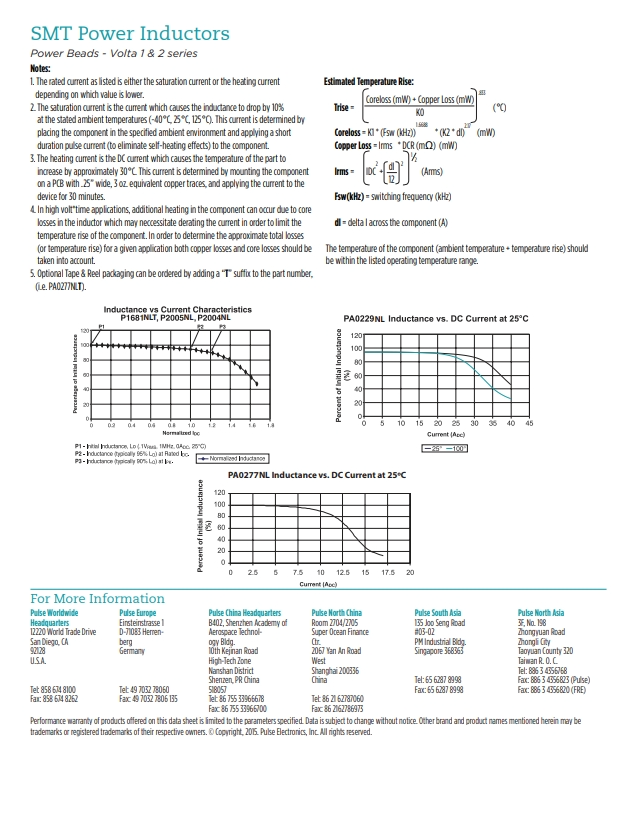

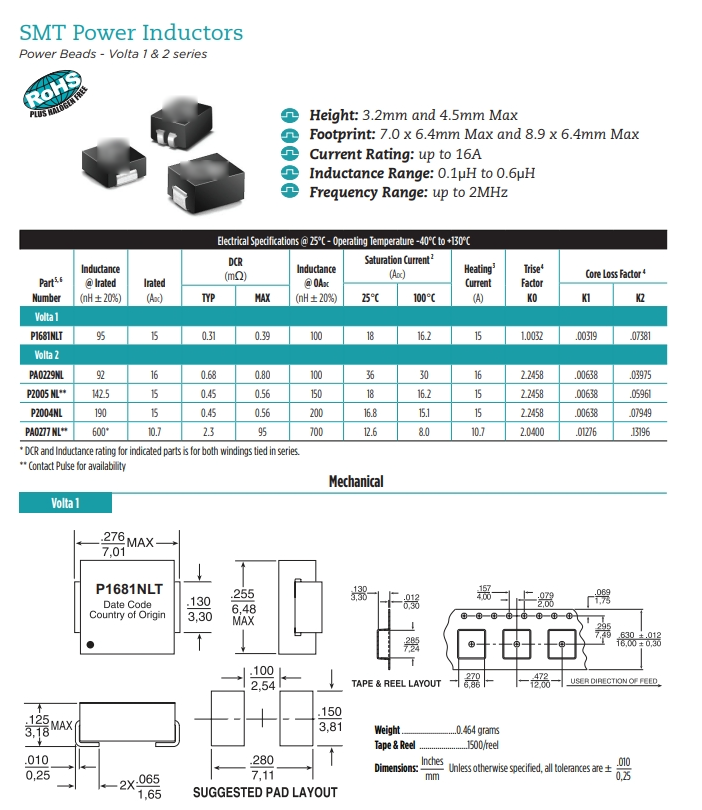

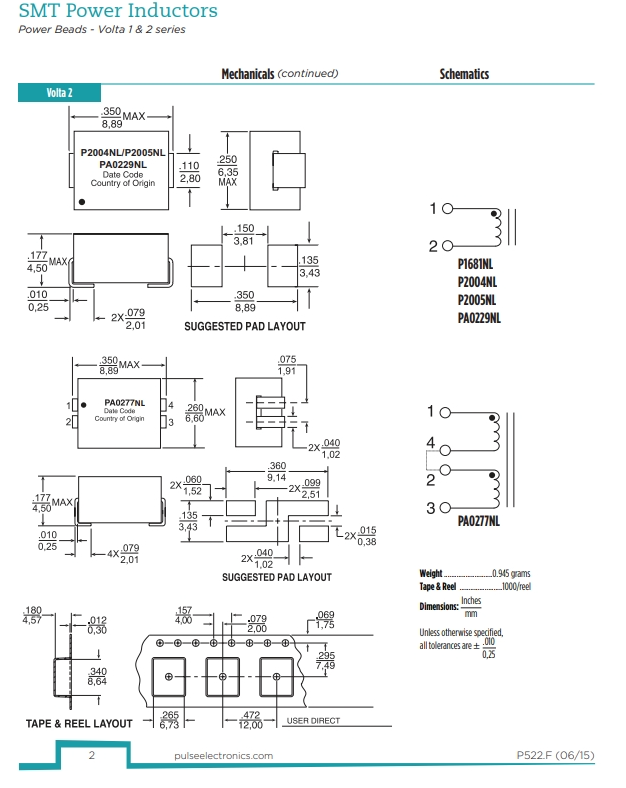

Product datasheet
For more information, please download
