You can contact me for the best price DS55121J IC Line Driver, 2 Func, 2 Driver, BIPolar, CDIP16 Hot sale original
Manufacturer Product Number
DS55121J
Description
DS55121J IC Line Driver, 2 Func, 2 Driver, BIPolar, CDIP16 Hot sale original
Package Condition
BULK
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
As a result of the ic receiver, the resolution of the driver was increased to 2 bits.IC receiver has an interface IC type called LINE DRIVER, which controls and manages the sharing of data.With 16 terminals, including two external ones, this rf transceiver module is designed to handle a wide range of applrf transceiver moduleations.
Product Features
16 terminals used for its configuration
Product Applications
DS55121J Drivers/Receivers/Transceivers applications.
-
Wireless network systems
-
Satellite communications networks
-
Ethernet circuitry
-
Wired telephone
-
Cordless telephone
-
Desktop PC
-
Notebook
-
Pocket PC
-
Desktop radio
-
Clock radio
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DS55121J |
| Ihs Manufacturer | Original |
| Package Description | DIP, DIP16,.3 |
| Differential Output | NO |
| Driver Number of Bits | 2 |
| High Level Input Current-Max | 0.00004 A |
| Input Characteristics | GATED |
| Interface IC Type | LINE DRIVER |
| Interface Standard | GENERAL PURPOSE |
| Length | 19.43 mm |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Out Swing-Min | 2.4 V |
| Output Characteristics | OPEN-EMITTER |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Transmit Delay-Max | 50 ns |
| Width | 7.62 mm |

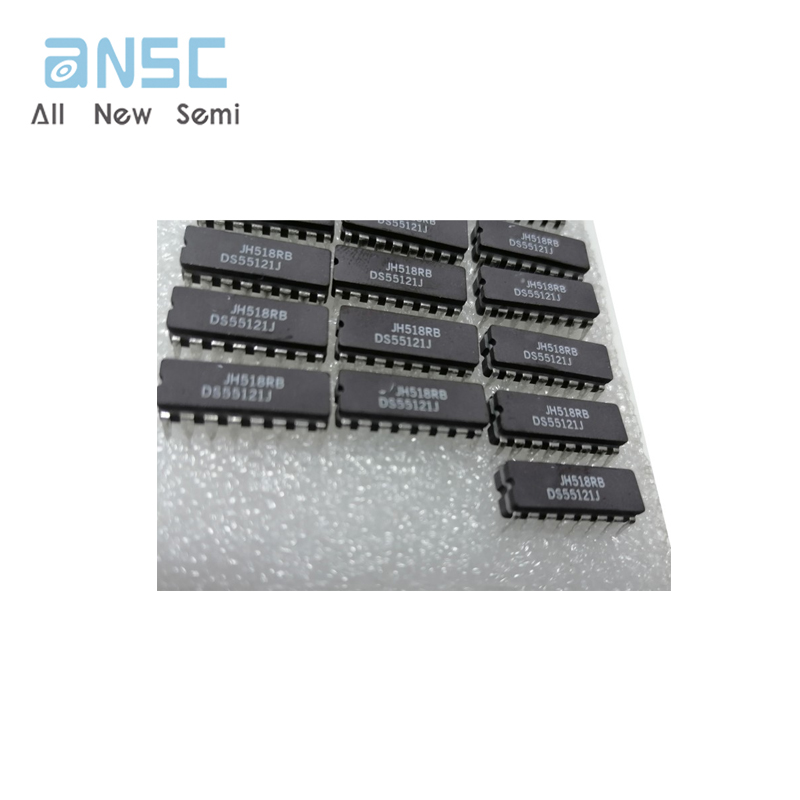

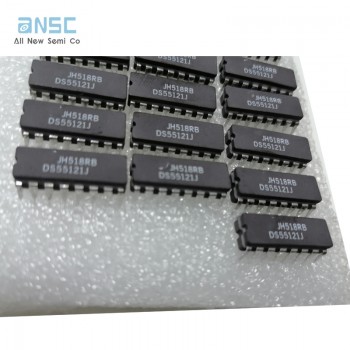

Product Photos

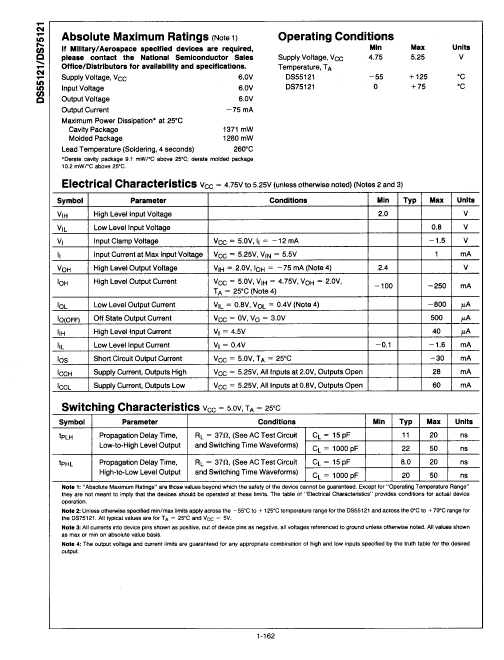

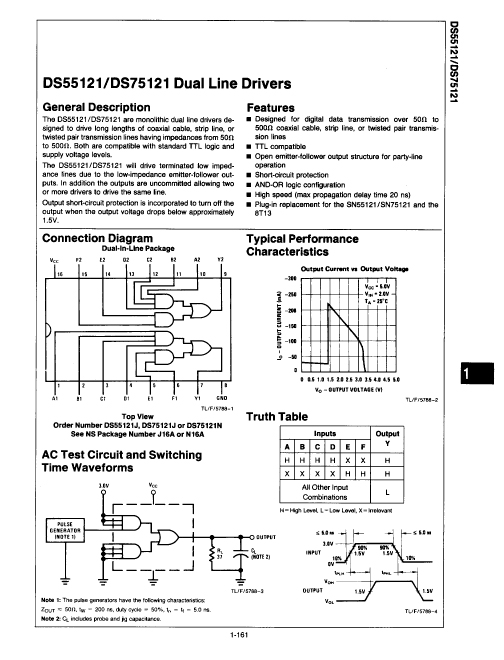

Product datasheet
For more information, please download
