Hot sale Original ST485ECDR IC TRANSCEIVER HALF 1/1 8SOIC 1/1 Transceiver Half RS422, RS485 8-SOIC Interface
Manufacturer Product Number
ST485ECDR
Description
ST485ECDR IC TRANSCEIVER HALF 1/1 8SOIC 1/1 Transceiver Half RS422, RS485 8-SOIC Interface Surface Mount
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The ST485E is a low power transceiver for RS- 485 and RS-422 communication. Each driver output and receiver input is protected against ±15KV electrostatic discharge (H.B.M.) (ESD) shocks, without latch-up. These parts contain one driver and one receiver in half duplex configuration. This transceiver draws 300µA (typ.) of supply current when unloaded or fully loaded with disabled drivers. General features ■ Low quiescent current: 300µA ■ Designed for RS-485 interface application ■ -7V to 12V common mode input voltage range ■ Driver maintains high impedance in 3-state or with the power OFF ■ 70mV typical input hysteresis ■ 30ns propagation delay, 5ns skew ■ Operates from a single 5V supply ■ Current limiting and thermal shutdown for driver overload protection ■ ESD protection: – ±15KV (H.B.M.) – ±8KV (IEC-1000-4-2 contact discharge) ■ Allows up to 64 transceivers on the bus |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ST485ECDR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Original |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| - | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 70 mV |
| Data Rate | 5Mbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ST485 |

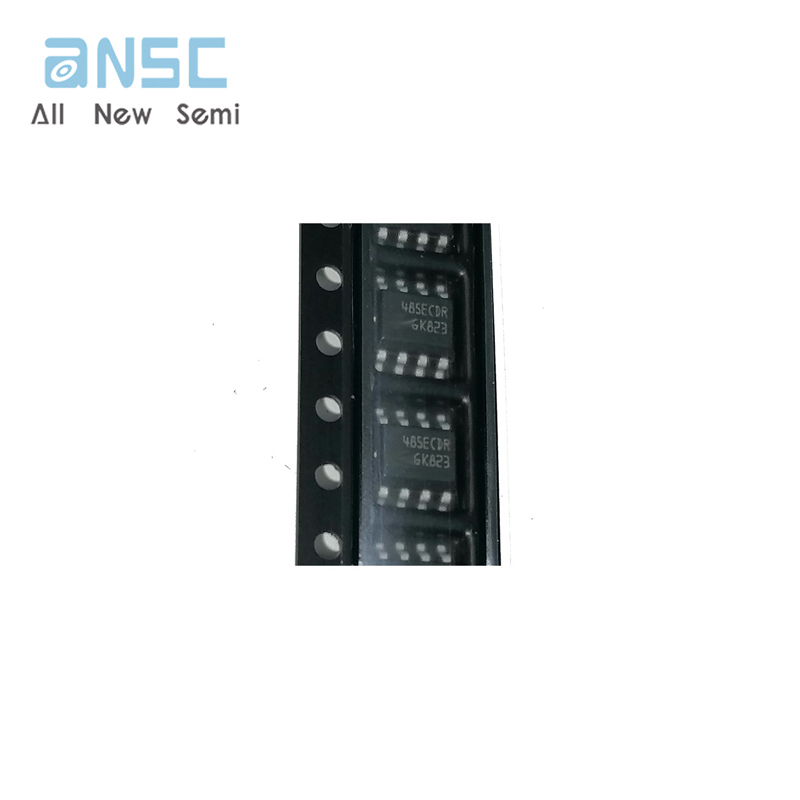

Actual image of the product

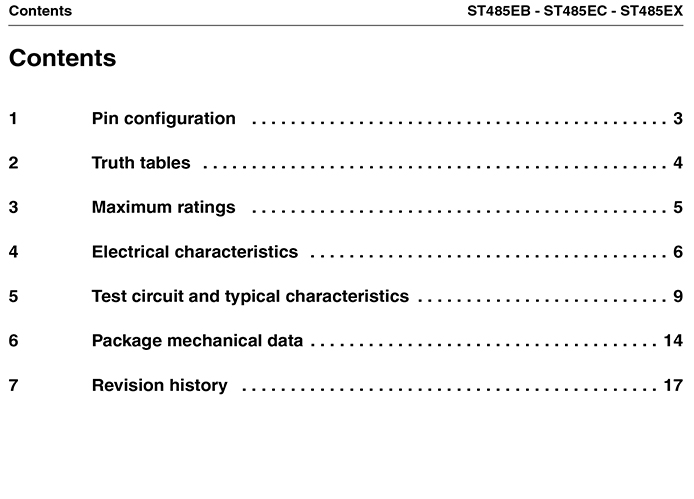

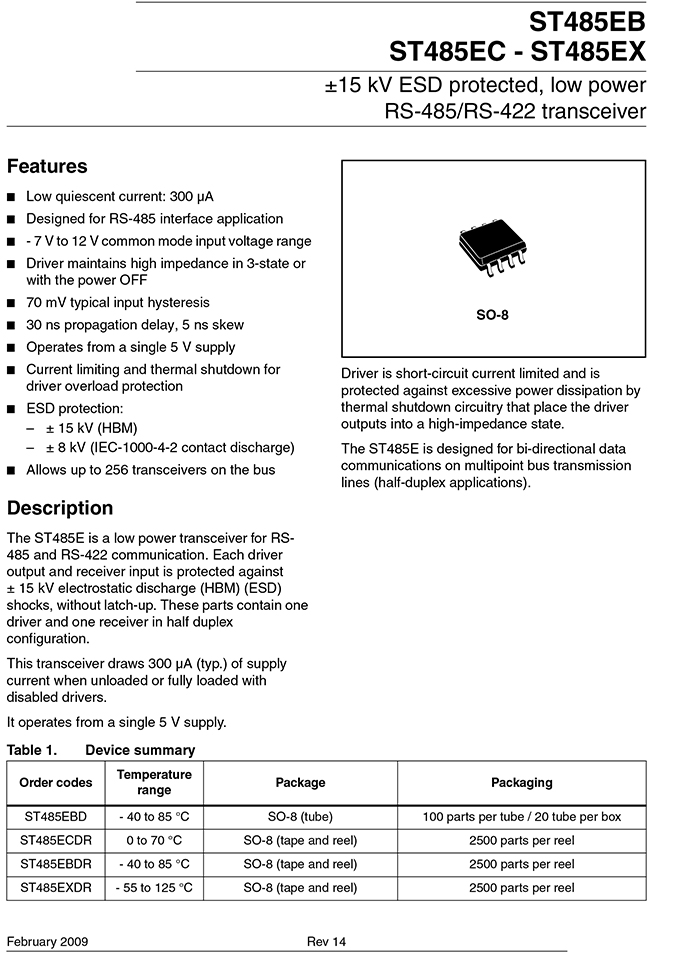

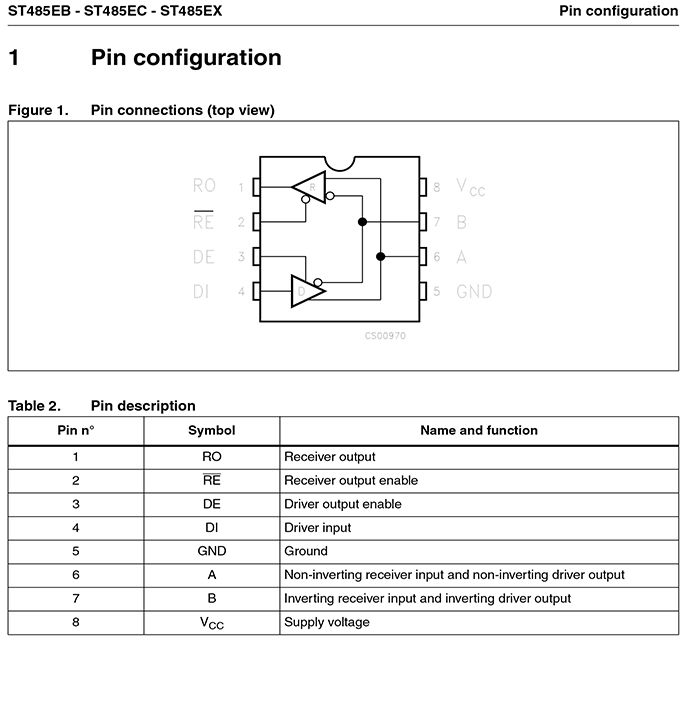

Product datasheet
For more information, please download
