Hot sale original MAX31855KASA+ Thermocouple to Digital Converter IC Thermocouple (Multiple) Input Digital Output 8-SOIC

Manufacturer Product Number
MAX31855KASA+
Description

MAX31855KASA+ IC CONV THERMOCOUPLE-DGTL SOIC

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

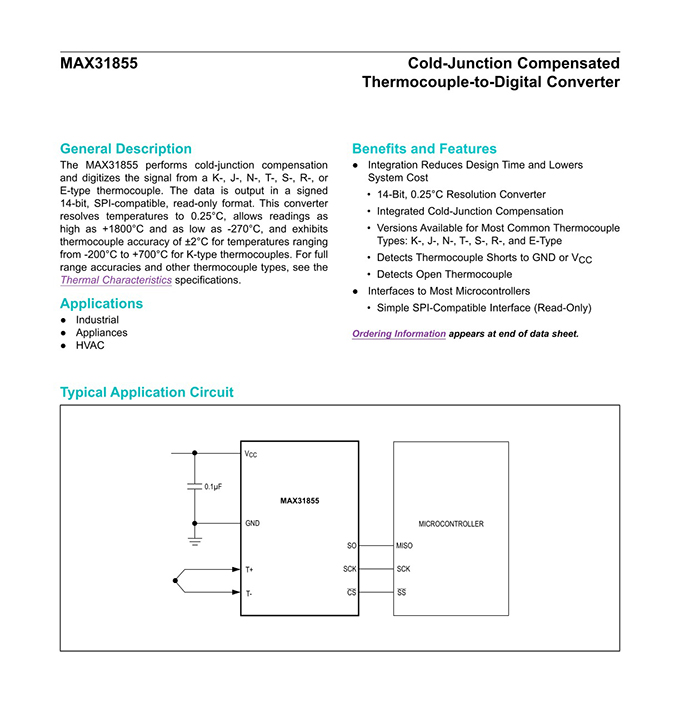

General Description
The MAX31855 performs cold-junction compensation and digitizes the signal from a K, J, N, T, or E type ther mocouple. (Contact the factory for S and R type thermo couples.) The data is output in a signed 14-bit, SPI™-compatible, read-only format. This converter resolves temperatures to 0.25NC, allows readings as high as +1800NC and as low as -270NC, and exhibits thermo couple accuracy of ±2NC for temperatures ranging from -200NC to +700NC for K-type thermocouples. For full range accuracies and other thermocouple types, see the Thermal Characteristics specifications.
Features
● Cold-Junction Compensation
● 14-Bit, 0.25NC Resolution
● Versions Available for K, J, N, T, and E Type
Thermocouples (Contact Factory for S and R Type
Availability) (see Table 1)
● Simple SPI-Compatible Interface (Read-Only)
● Detects Thermocouple Shorts to GND or VCC
● Detects Open Thermocouple

Product Description

Type Description
ANSC PART# ANSC- MAX31855KASA+
Category Integrated Circuits (ICs)
Interface
Sensor and Detector Interfaces
Manufacturer Original
Series -
Packaging Tube
Part Status Active
DigiKey Programmable Not Verified
Type Thermocouple to Digital Converter
Input Type Thermocouple (Multiple)
Output Type Digital
Current - Supply 900 µA
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number MAX31855

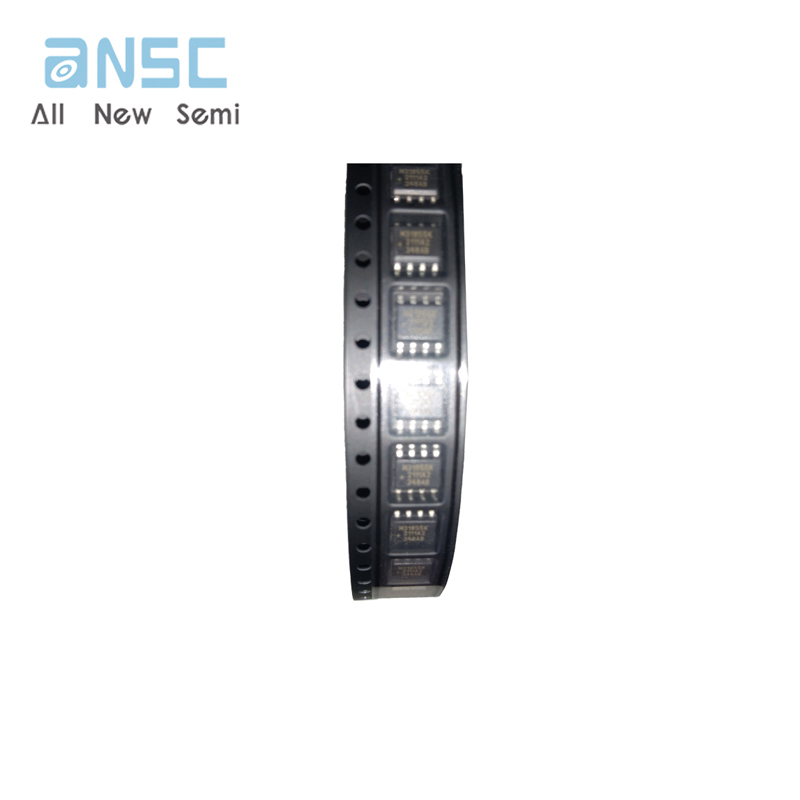

Product Photos

MAX31855KASA+

Product datasheet

For more information, please download
