Hot sale Original LM239DRG4 IC COMPARATOR 4 DIFF 14SOIC Comparator Standard (General Purpose) Open-Collector 14-SOIC

Product Overview

A convenient packaging is provided in the form of 14-SOIC (0.154, 3.90mm Width) .

The comparator has a type CMOS, MOS, Open-Collector, TTL output.As a result, it is designed with Tape & Reel (TR) package.

14 terminals are found on the comparator.With a voltage of 5V supplied, the comparator is capable of performing a wide range

 of demanding tasks.A comparator of this type is typically of type Differential .

The total number of elements is 4 .There are 14 pins on this board.Electronic comparator is recommended

to mount the device using type Surface Mount .As a precaution, it is recommended to set the operating temperature

to -25°C~85°C to prevent malfunctions.Electronic comparator has 14 pins.

You can search LM239 if you are looking for more pin-to-pin solutions.In this comparator, the quiescent current is 2mA .

The board has a Surface Mount for mounting on a PCB or any other board.Electronic comparator is recommended that

 the nominal supply current for the device be set to 2mA .If the current supply exceeds 2mA , the comparator could malfunction.

The device can be powered by 5V power supplies.Input current to the device is limited to 250nA .

In accordance with the voltage formula, the part's voltage gain is 106.02dB .In order to operate normally, a supply voltage

of 0 is required.With a TR package, this device is designed for general use (usually in ADC circuits).

Product Features

CMOS, MOS, Open-Collector, TTL output capability

Differential IC

Employing 4 elements

Operates under -25°C~85°C

Quiescent Current: 2mA

Voltage Gain: 106.02dB

Product Applications

There are a lot of Texas Instruments

LM239DRG4 linear comparators applications.

General-Purpose Portable Devices

General-Purpose, Low-Voltage Applications

Self-diagnostics

Lithium ion battery monitoring

Battery management and protection

Current and voltage sensing

Analog front end

Power management

Point of load regulators

DC/DC and AC/DC power supplies

Product Description

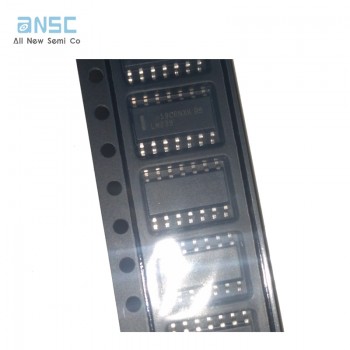

Actual image of the product

Product datasheet

For more information, please download

​
