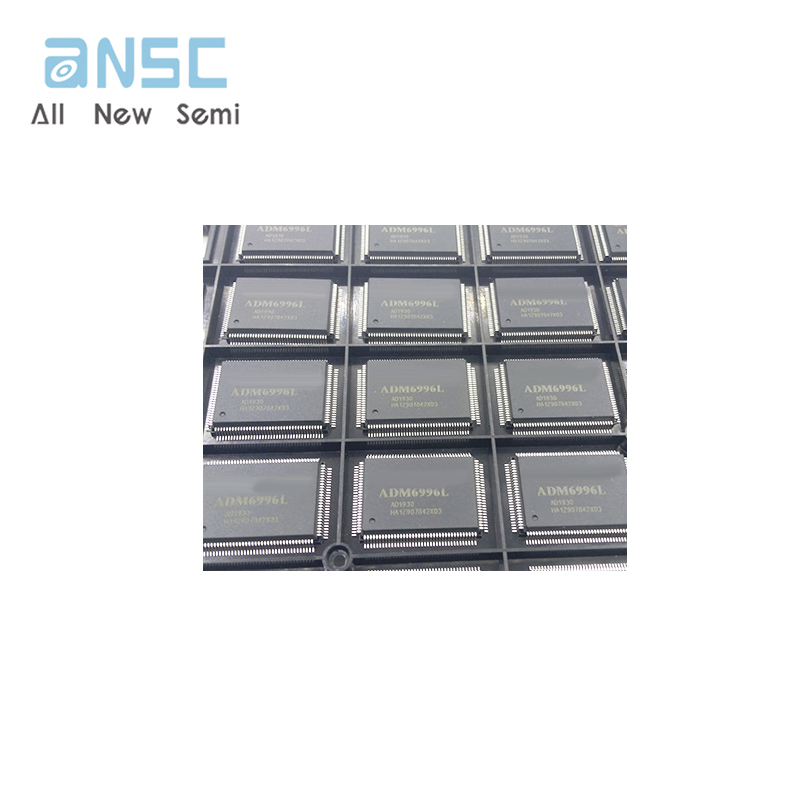

You can contact me for the best price Hot sale original electronics ADM6996L Single Chip Ethernet Switch Controller
Manufacturer Product Number
ADM6996L
Description
ADM6996L 6 port 10/100 Mb/s Single Chip Ethernet Switch Controller
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Overview
The ADM6996L is a high performance, low cost, highly integration (Controller, PHY and Memory) five-port 10/100 Mbps TX/FX plus one 10/100 MAC port Ethernet switch controller with all ports supporting 10/100 Mbps Full/Half duplex. The ADM6996L is intended for applications to stand alone bridge for low cost SOHO market such as 5Port, Router application.
Features
• Supports five 10M/100M auto-detect Half/Full duplex switch ports with TX/FX interfaces and one MII/GPSI port.
• Supports 2048 MAC addresses table.
• Supports four queue for QoS
• Supports priority features by Port-Based, 802.1p VLAN & IP TOS of packets.
• Supports Store & Forward architecture and performs forwarding and filtering at nonblocking full wire speed.
• Supports buffer allocation with 256 bytes per block
• Supports Aging function Enable/Disable.
• Supports per port Single/Dual color mode with Power On auto diagnostic.
• Supports 802.3x Flow Control pause packet for Full Duplex in case buffer is full.
• Supports Back Pressure function for Half Duplex operation in case buffer is full.
• Supports packet length up to 1522 bytes.
• Broadcast Storming Filter function.
• Supports 802.1Q VLAN. Up to 16 VLAN groups is implemented by the last four bits of VLAN ID.
• 2bit MAC clone to support multiple WAN application
• Supports TP interface Auto MDIX function for auto TX/RX swap by strapping-pin.
• Easy Management 32bits smart counter for per port RX/TX byte/packet count, error count and collision count.
• Support PHY status output for management system.
• 25M Crystal only for the whole system.
• 128 QFP package with 0.18um technology. 1.8V/3.3V power supply.
Applications
ADM6996L in 128-pin PQFP: SOHO 5-port switch 5-port switch + Router with MII CPU interface.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- ADM6996L |
| Ihs Manufacturer | Original |
| Part Package Code | QFP |
| Package Description | FQFP, |
| Pin Count | 128 |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY |
| Boundary Scan | NO |
| Clock Frequency-Max | 25 MHz |
| Data Encoding/Decoding Method | NRZ; NRZI; BIPH-LEVEL(MANCHESTER) |
| Data Transfer Rate-Max | 12.5 MBps |
| Length | 20 mm |
| Low Power Mode | NO |
| Number of Serial I/Os | 6 |
| Number of Terminals | 128 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | FQFP |
| Package Shape | RECTANGULAR |
| Package Style | FLATPACK, FINE PITCH |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.4 mm |
| Supply Voltage-Max | 1.9 V |
| Supply Voltage-Min | 1.7 V |
| Supply Voltage-Nom | 1.8 V |
| Surface Mount | YES |
| Technology | CMOS |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Width | 14 mm |
| uPs/uCs/Peripheral ICs Type | SERIAL IO/COMMUNICATION CONTROLLER, LAN |
Product Photos

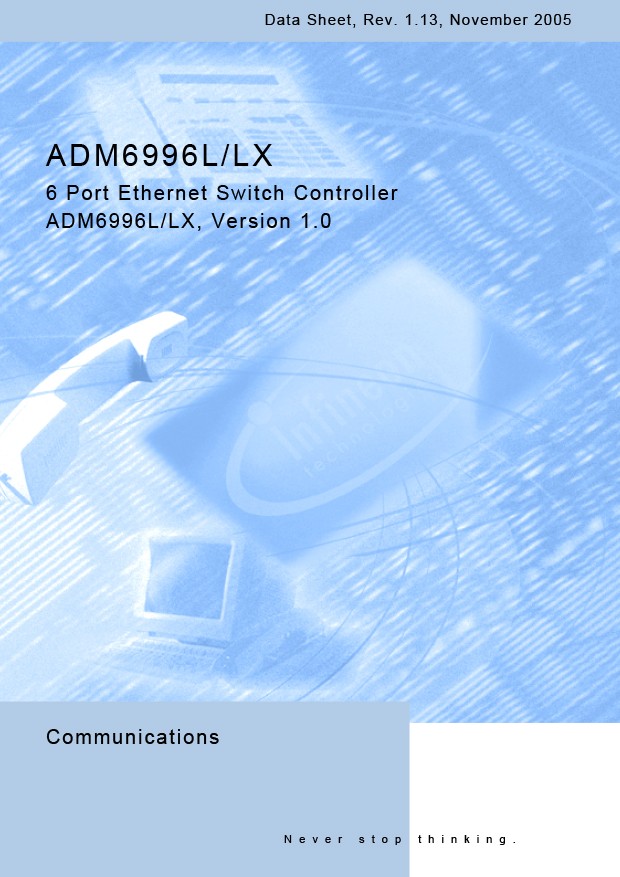

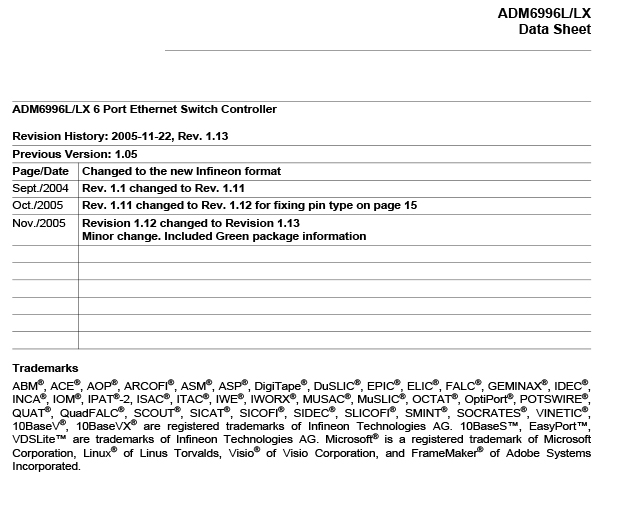

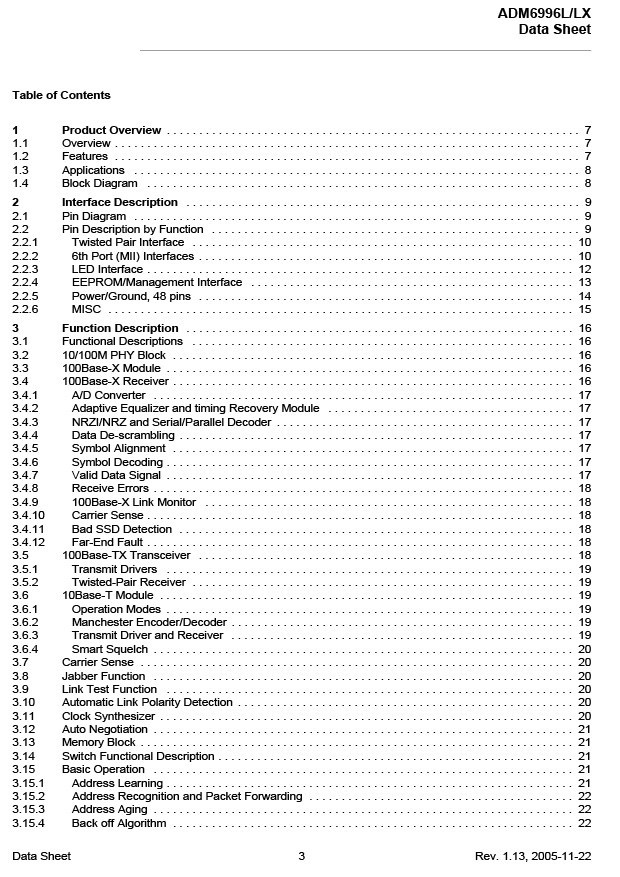

Product datasheet
