Hot sale Original LM22676MRX-ADJ IC 5.5A SWITCHING REGULATOR 600kHz SWITCHING FREQ-MAX PDSO8

Manufacturer Product Number

LM22676MRX-ADJ

Description

LM22676MRX-ADJ IC 5.5A SWITCHING REGULATOR 600kHz SWITCHING FREQ-MAX PDSO8 PLASTIC PSOP-8

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type#	Description
ANSC PART#	ANSC- LM22676MRX-ADJ
Part Package Code	SOIC
Package Description	Hlsop, Sop8,.25
Pin Count	8
UNSPSC	32101630
kg CO2e/kg	12.04
Average Weight (mg)	53.65
CO2e (mg)	645.946
Samacsys Description	Dc-Dc Converters Step-Down Adjustable 1 4.5v 42v 1.285v 37v 3a So-8 Rohs
Samacsys Modified On	2023/3/7 16:10
Category CO2 Kg	504
Compliance Temperature Grade	Automotive: -40c To +125c
Candidate List Date	2013/12/16
EFUP	50
Conflict Mineral Status	Drc Conflict Free Undeterminable
Conflict Mineral Status Source	Cmrt V2.03a
Additional Feature	Also Has Adjustable Outputs As Low As 1.285v
Analog IC - Other Type	Switching Regulator
Control Mode	Voltage-Mode
Control Technique	Pulse Width Modulation
Input Voltage-Max	42 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 Mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 °C
Operating Temperature-Min	-40 °C
Output Current-Max	5.5 A
Package Body Material	Plastic/Epoxy
Package Code	HLSOP
Package Equivalence Code	SOP8,.25
Package Shape	Rectangular
Package Style	Small Outline, Heat Sink/Slug, Low Profile
Qualification Status	Not Qualified
Seated Height-Max	1.68 Mm
Surface Mount	Yes
Switcher Configuration	Buck
Switching Frequency-Max	600 Khz
Temperature Grade	Automotive
Terminal Finish	Tin Lead
Terminal Form	Gull Wing
Terminal Pitch	1.27 Mm
Terminal Position	Dual
Width	3.9 Mm

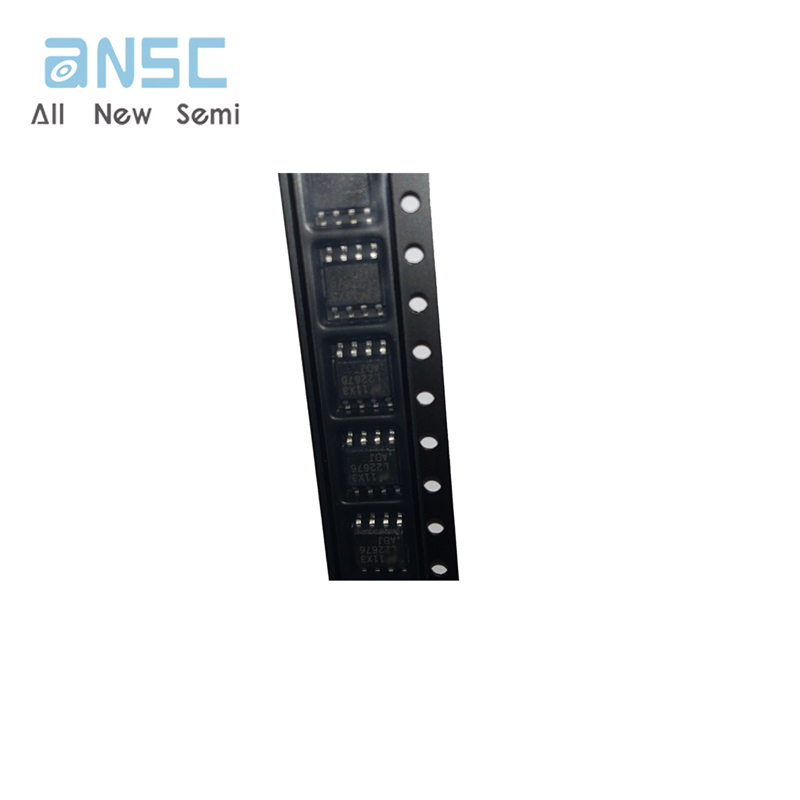

Actual image of the product

LM22676MRX-ADJ

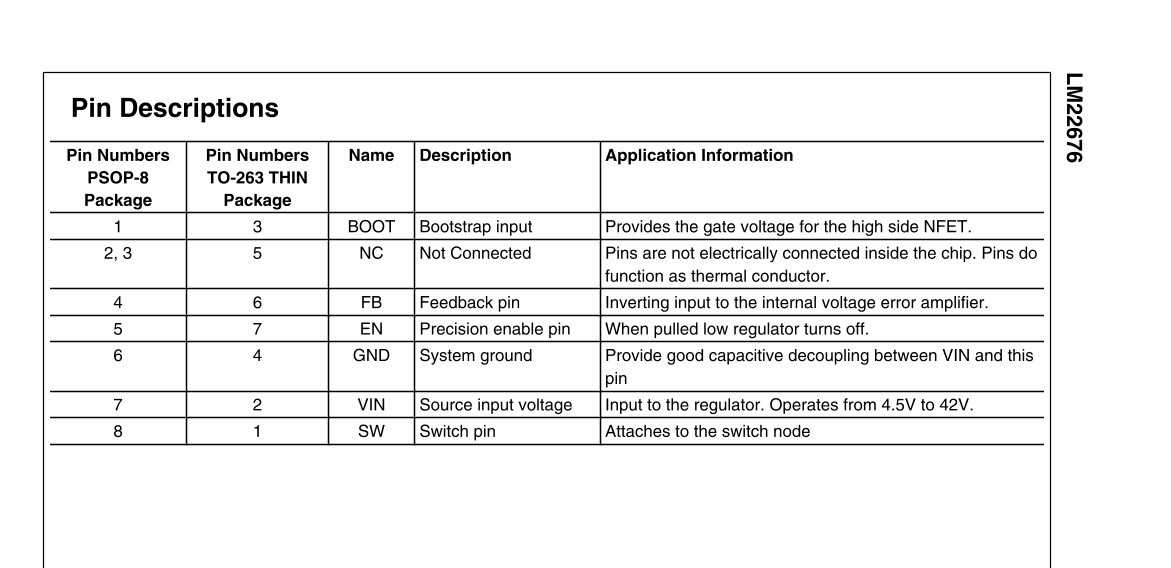

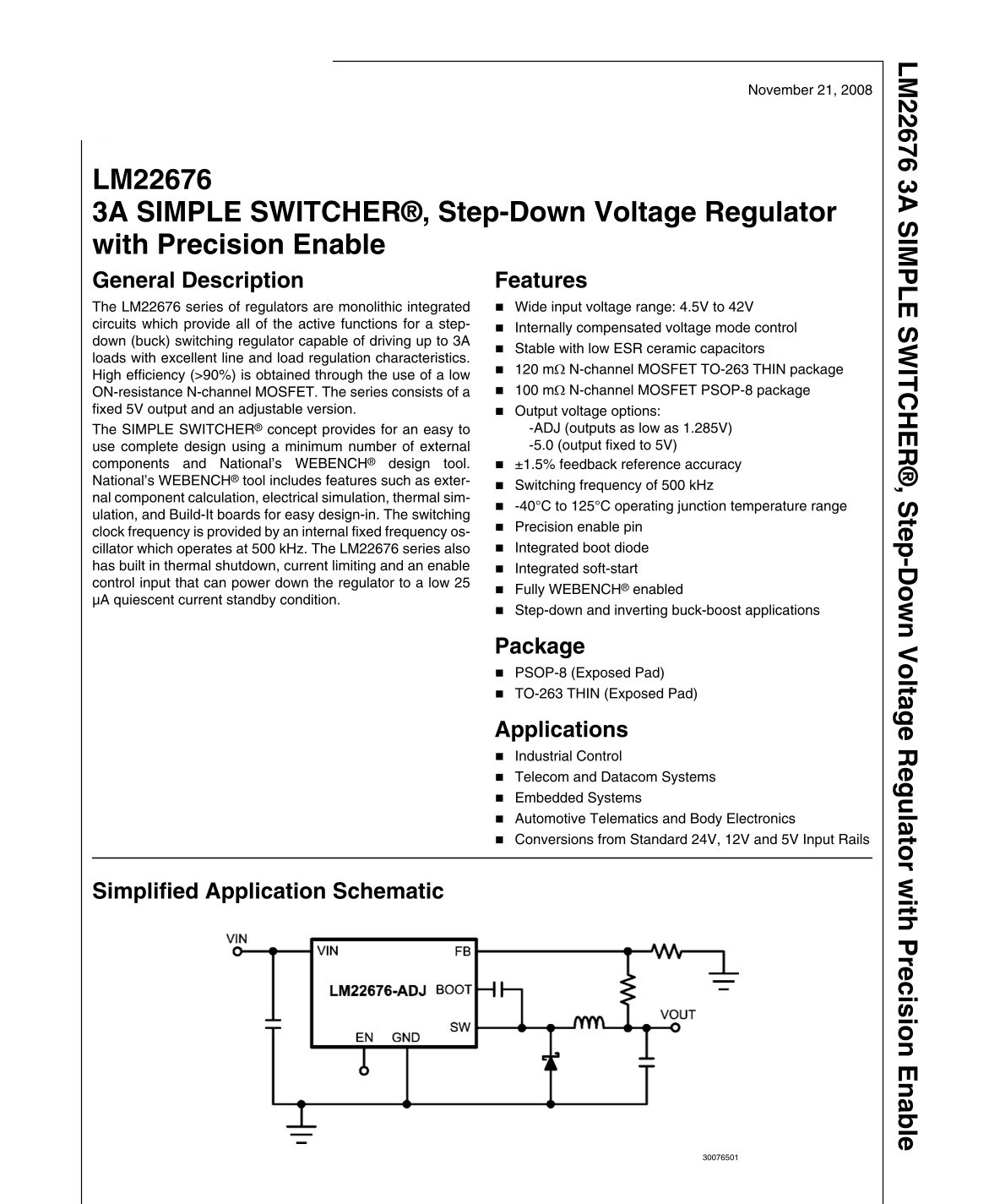

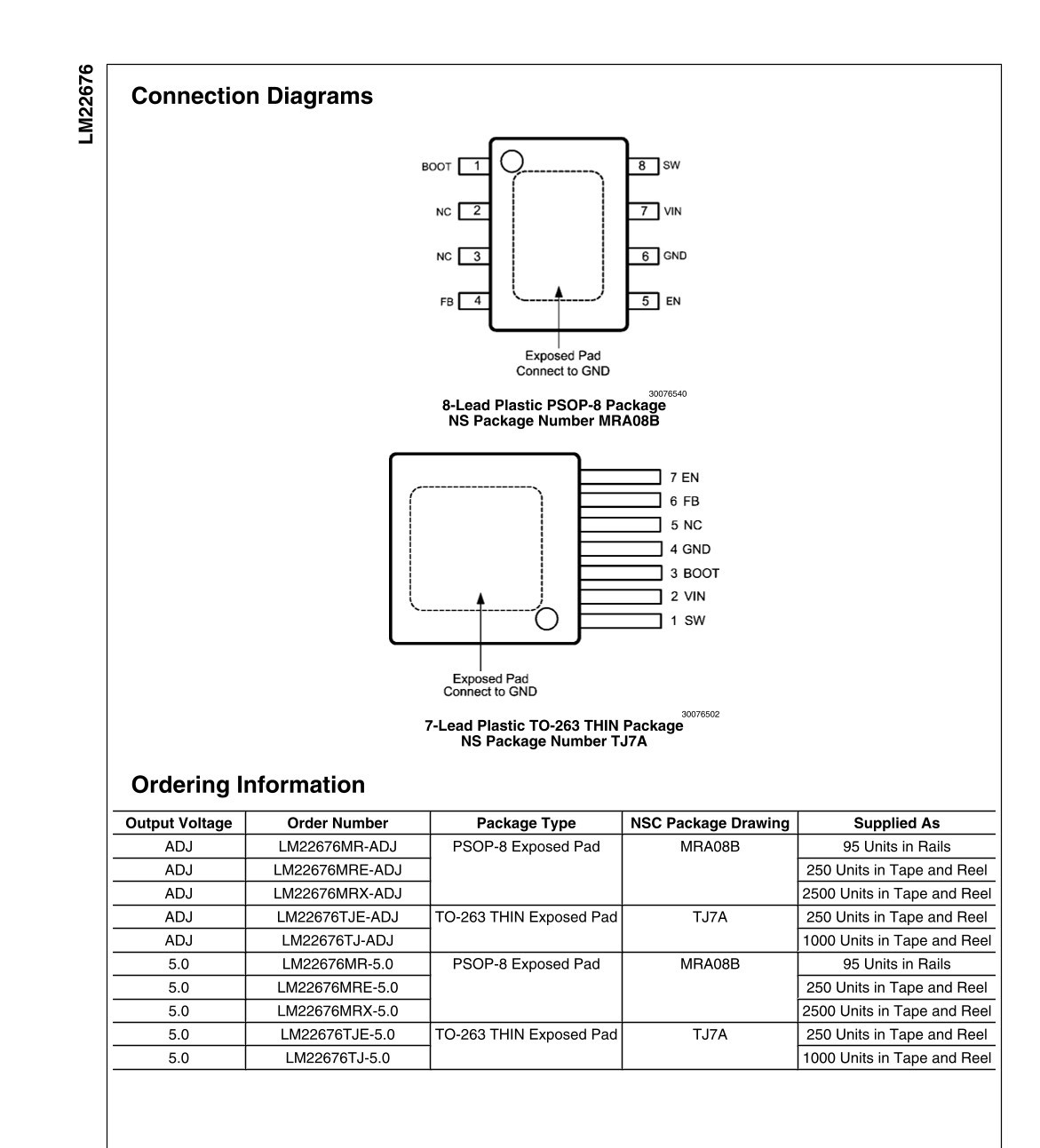

Product datasheet

For more information, please download
