Hot sale Original TPS54040ADGQR PMIC IC REG Buck Switching Regulator IC Positive Adjustable 0.8V 1Output 10-HVSSOP Surface Mount

Manufacturer Product Number
TPS54040ADGQR
Description

TPS54040ADGQR Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 500mA 10-PowerTFSOP, 10-MSOP

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

TPS54040ADGQR Description
The TPS54040ADGQR is a voltage regulator with an integrated high-side MOSFET that offers high efficiency, excellent performance, and a large voltage regulation range. The TPS54040ADGQR offers a switching frequency of 581 kHz in the MSOP-PowerPad-10 envelope and supports output voltages from 800mV to 39V. The device is designed to operate from -40°C to 125°C and should ensure that the maximum and minimum temperatures of the application being used do not exceed this range.

TPS54040ADGQR Features
• 0.8-V Internal Voltage Reference
• 3.5 V to 42 V Input Voltage Range
• Available in MSOP-10 and VSON-10 Packages
• 200-mΩ High-Side MOSFET
• Supported by WEBENCH® and SwitcherPro™ Software Tool
• High Efficiency at Light Loads with a Pulse Skipping Eco-mode™
• Tighter Enable Threshold than TPS54040 for More Accurate UVLO Voltage
• Adjustable UVLO Voltage and Hysteresis
• 116 μA Operating Quiescent Current
• 1.3 μA Shutdown Current
• UV and OV Power Good Output
• 100 kHz to 2.5 MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing



TPS54040ADGQR Applications
• 12-V and 24-V industrial and commercial low power systems
• Aftermarket anto accessories: video, GPS, entertainment



Product Description

TYPE DESCRIPTION
ANSC PART# ANSC - TPS54040ADGQR
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr Original
Series Eco-Mode™
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3.5V
Voltage - Input (Max) 42V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 39V
Current - Output 500mA
Frequency - Switching 100kHz ~ 2.5MHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-HVSSOP
Base Product Number TPS54040

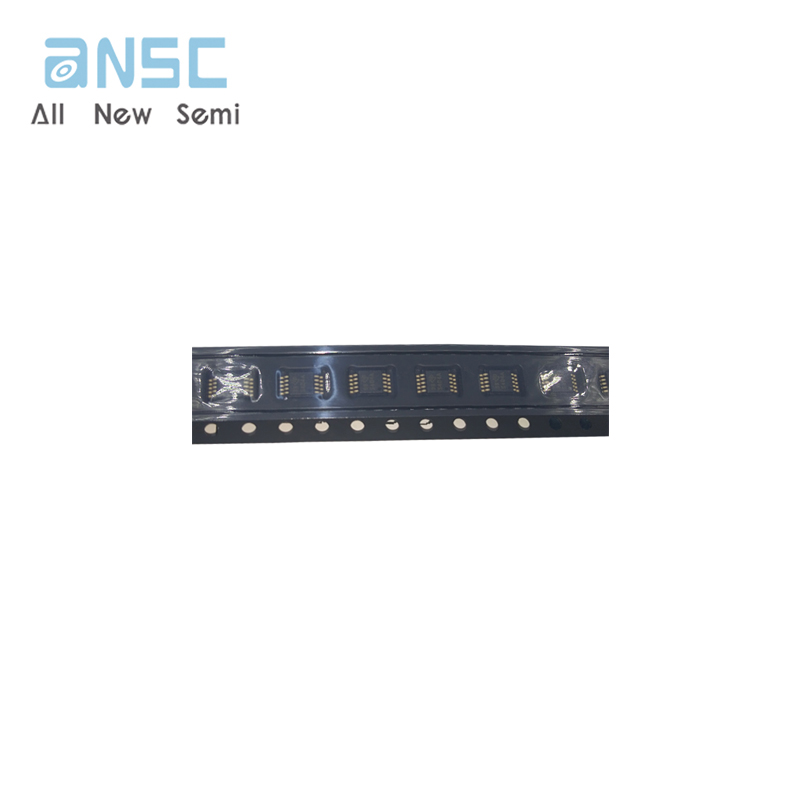

Actual image of the product

TPS54040ADGQR

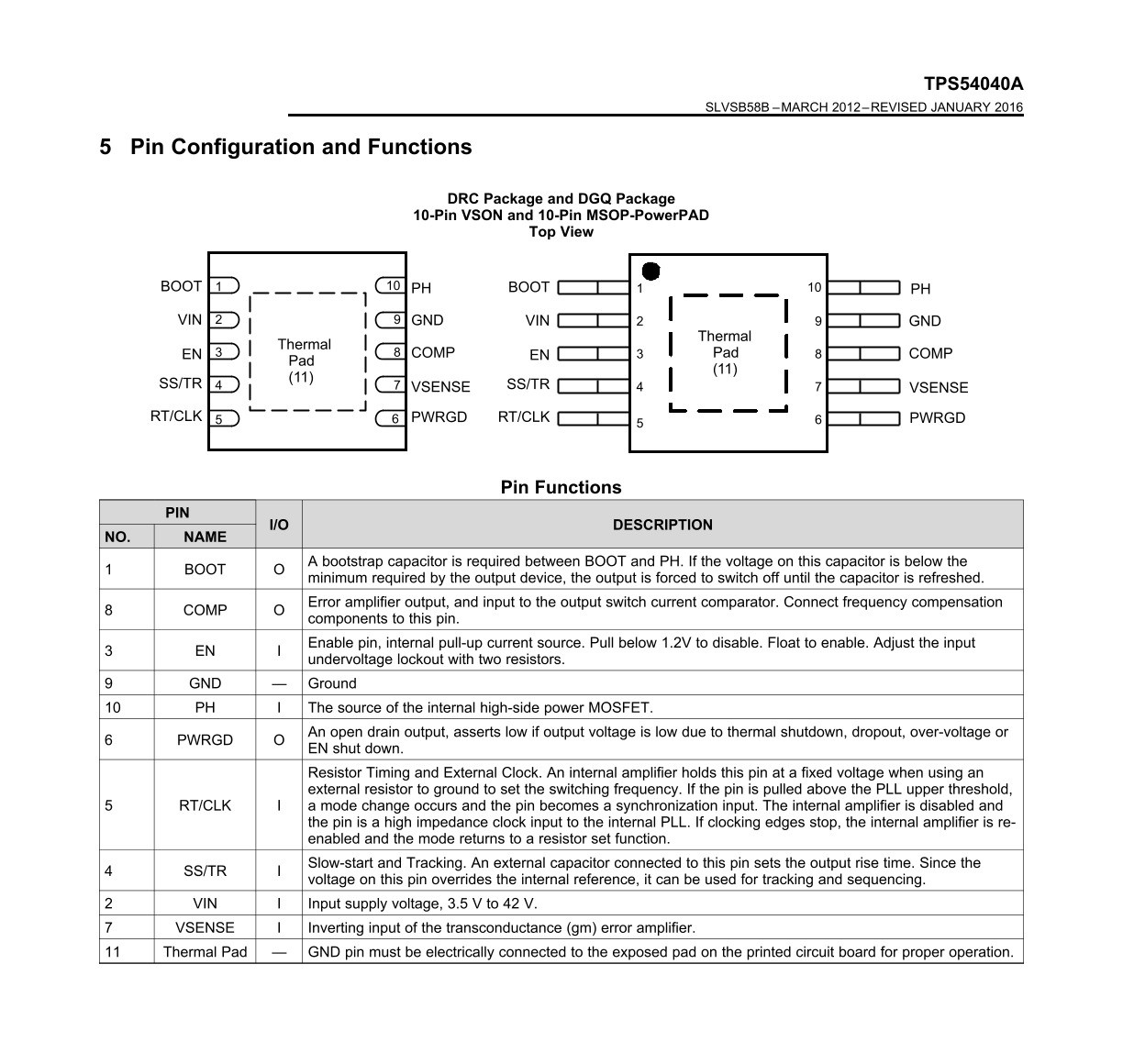

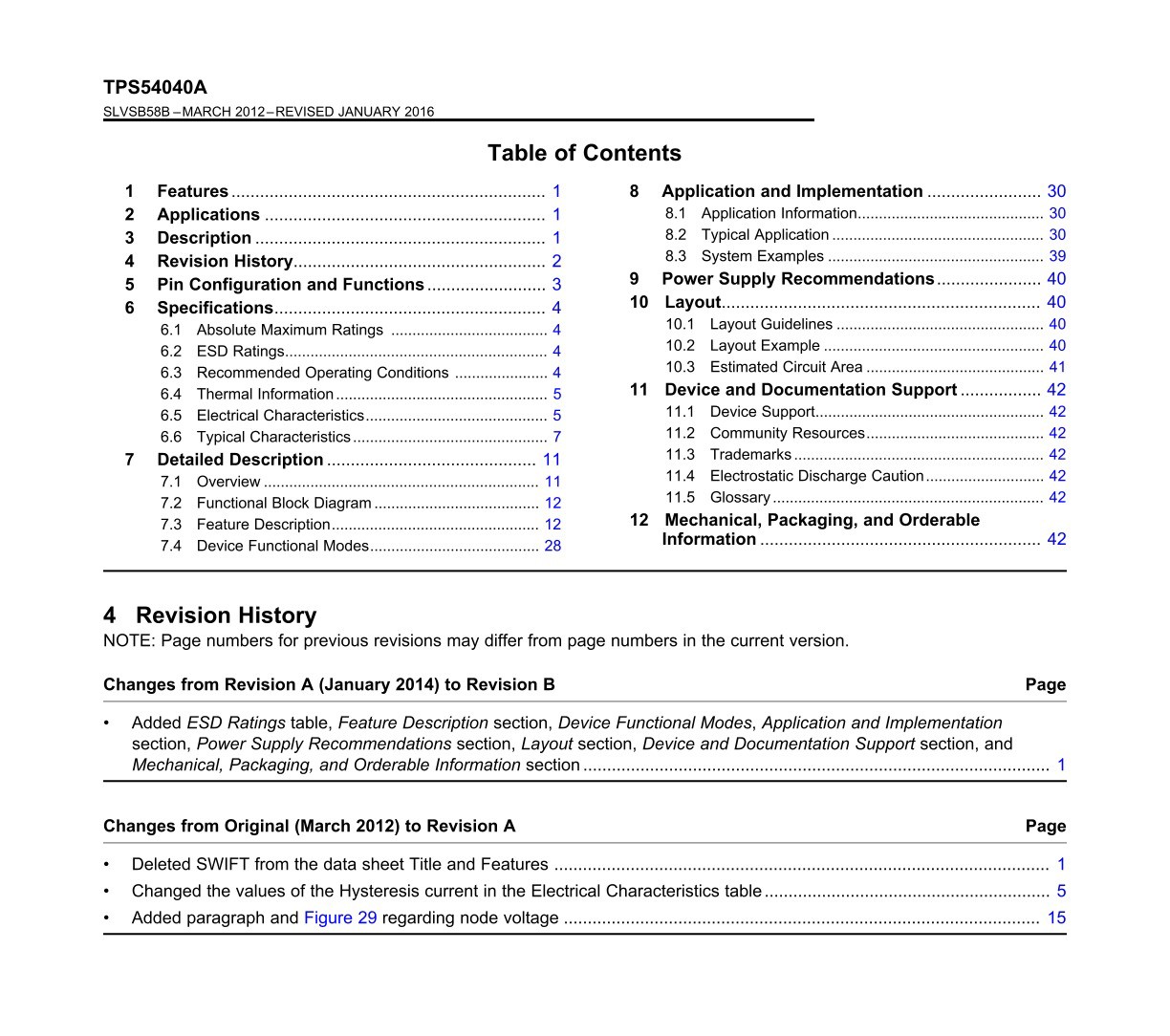

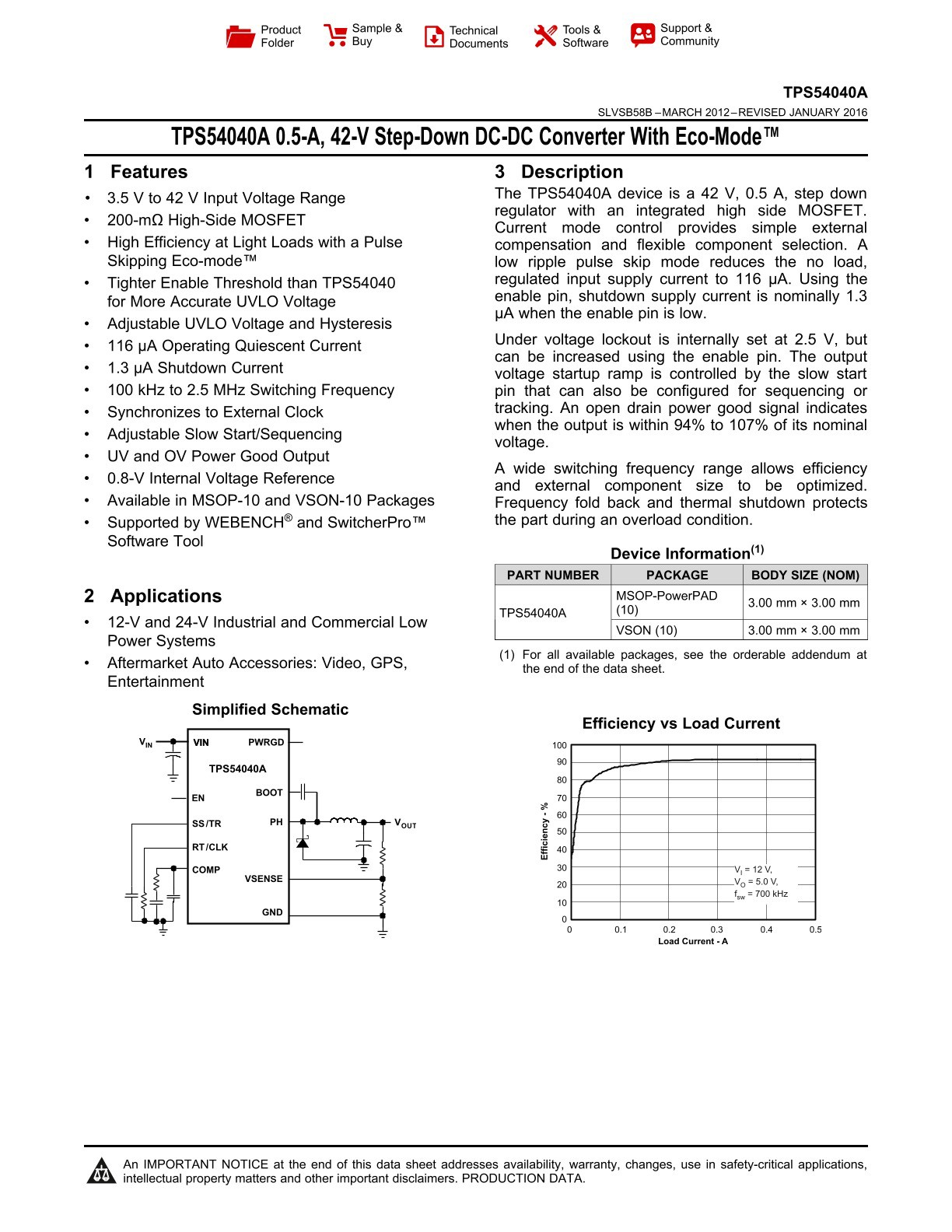

Product datasheet

For more information, please download
