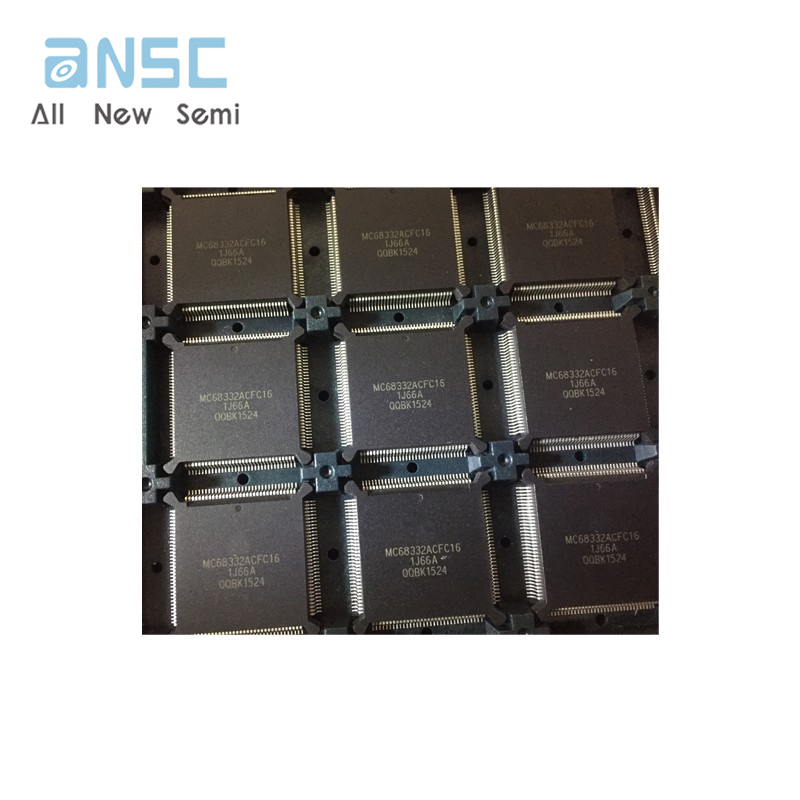

Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

Hot sale Original MC68332ACFC16 IC 32-BIT, 16MHz, MICROCONTROLLER, PQFP132 0.025 INCH PITCH, PLASTIC, QFP-132

Manufacturer Product Number
MC68332ACFC16
Description

MC68332ACFC16 IC 32-BIT, 16MHz, MICROCONTROLLER, PQFP132 0.025 INCH PITCH, PLASTIC, QFP-132

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

The MC68332, a highly-integrated 32-bit microcontroller, combines high-performance data manipula tion capabilities with powerful peripheral subsystems. The MCU is built up from standard modules that interface through a common intermodule bus (IMB). Standardization facilitates rapid development of devices tailored for specific applications.

Features
• Central Processing Unit (CPU32)
— 32-Bit Architecture
— Virtual Memory Implementation
— Table Lookup and Interpolate Instruction
— Improved Exception Handling for Controller Applications
— High-Level Language Support
— Background Debugging Mode
— Fully Static Operation
• System Integration Module (SIM)
— External Bus Support
— Programmable Chip-Select Outputs
— System Protection Logic
— Watchdog Timer, Clock Monitor, and Bus Monitor
— Two 8-Bit Dual Function Input/Output Ports
— One 7-Bit Dual Function Output Port
— Phase-Locked Loop (PLL) Clock System
• Time Processor Unit (TPU)
— Dedicated Microengine Operating Independently of CPU32
— 16 Independent, Programmable Channels and Pins
— Any Channel can Perform any Time Function
— Two Timer Count Registers with Programmable Prescalers
— Selectable Channel Priority Levels
• Queued Serial Module (QSM)
— Enhanced Serial Communication Interface
— Queued Serial Peripheral Interface
— One 8-Bit Dual Function Port
• Static RAM Module with TPU Emulation Capability (TPURAM)
— 2-Kbytes of Static RAM
— May be Used as Normal RAM or TPU Microcode Emulation RAM

Product Description

Type# Description
ANSC PART# ANSC- MC68332ACFC16
Ihs Manufacturer Original
Part Package Code QFP
Package Description 0.950 X 0.950 INCH, 0.025 INCH PITCH, PLASTIC, QFP-132
Pin Count 132
Has ADC NO
Additional Feature EXT 32.768KHZ REFERENCE CRYSTAL; DYNAMIC BUS SIZING; 12 PROGRAMMABLE CHIP SELECT SIGNALS
Address Bus Width 24
Bit Size 32
CPU Family 68000
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 16
Length 24.13 mm
Moisture Sensitivity Level 3
Number of I/O Lines 31
Number of Terminals 132
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code BQFP
Package Equivalence Code SPQFP132,1.1SQ
Package Shape SQUARE
Package Style FLATPACK, BUMPER
Peak Reflow Temperature (Cel) 220
Qualification Status Not Qualified
RAM (bytes) 2048
Seated Height-Max 4.572 mm
Speed 16 MHz
Supply Current-Max 134 mA
Supply Voltage-Nom 5 V
Surface Mount YES
Technology HCMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 24.13 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

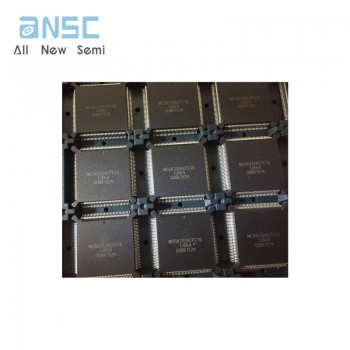

Product Photos

  MC68332ACFC16
