Hot sale Original RTL8201 SINGLE CHIP SINGLE PORT 10/100M FAST ETHERNET PHYCEIVER RTL8201BL
Manufacturer
Manufacturer Product Number
RTL8201
Description
RTL8201 SINGLE CHIP SINGLE PORT 10/100M FAST ETHERNET PHYCEIVER RTL8201BL
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description

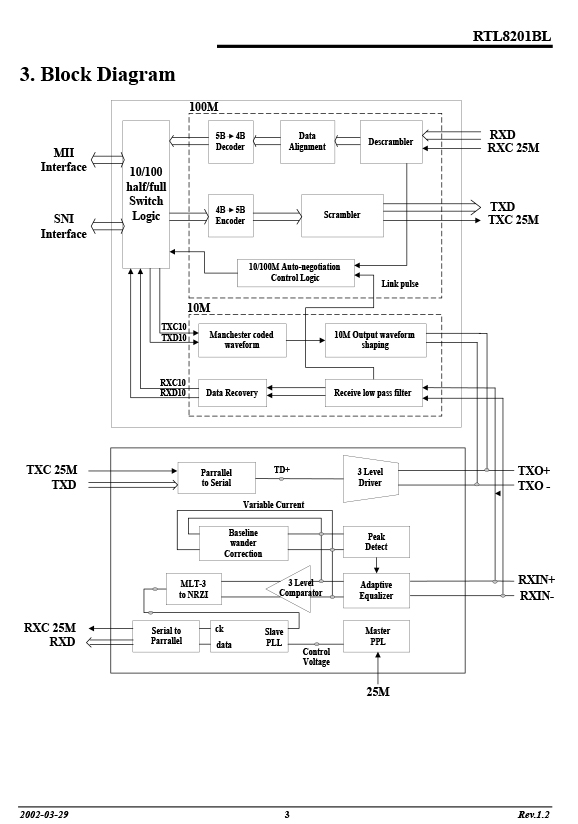

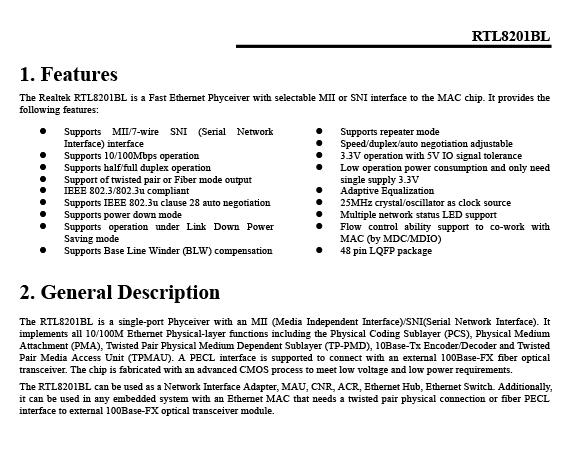

| General Description The RTL8201BL is a single-port Phyceiver with an MII (Media Independent Interface)/SNI(Serial Network Interface). It implements all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-Tx Encoder/Decoder and Twisted Pair Media Access Unit (TPMAU). A PECL interface is supported to connect with an external 100Base-FX fiber optical transceiver. The chip is fabricated with an advanced CMOS process to meet low voltage and low power requirements. The RTL8201BL can be used as a Network Interface Adapter, MAU, CNR, ACR, Ethernet Hub, Ethernet Switch. Additionally, it can be used in any embedded system with an Ethernet MAC that needs a twisted pair physical connection or fiber PECL interface to external 100Base-FX optical transceiver module. Features The RTL8201BL is a Fast Ethernet Phyceiver with selectable MII or SNI interface to the MAC chip. It provides the following features: ● Supports MII/7-wire SNI (Serial Network Interface) interface ● Supports 10/100Mbps operation ● Supports half/full duplex operation ● Support of twisted pair or Fiber mode output ● IEEE 802.3/802.3u compliant ● Supports IEEE 802.3u clause 28 auto negotiation ● Supports power down mode ● Supports operation under Link Down Power Saving mode ● Supports Base Line Winder (BLW) compensation ● Supports repeater mode ● Speed/duplex/auto negotiation adjustable ● 3.3V operation with 5V IO signal tolerance ● Low operation power consumption and only need single supply 3.3V ● Adaptive Equalization ● 25MHz crystal/oscillator as clock source ● Multiple network status LED support ● Flow control ability support to co-work with MAC (by MDC/MDIO) ● 48 pin LQFP package |

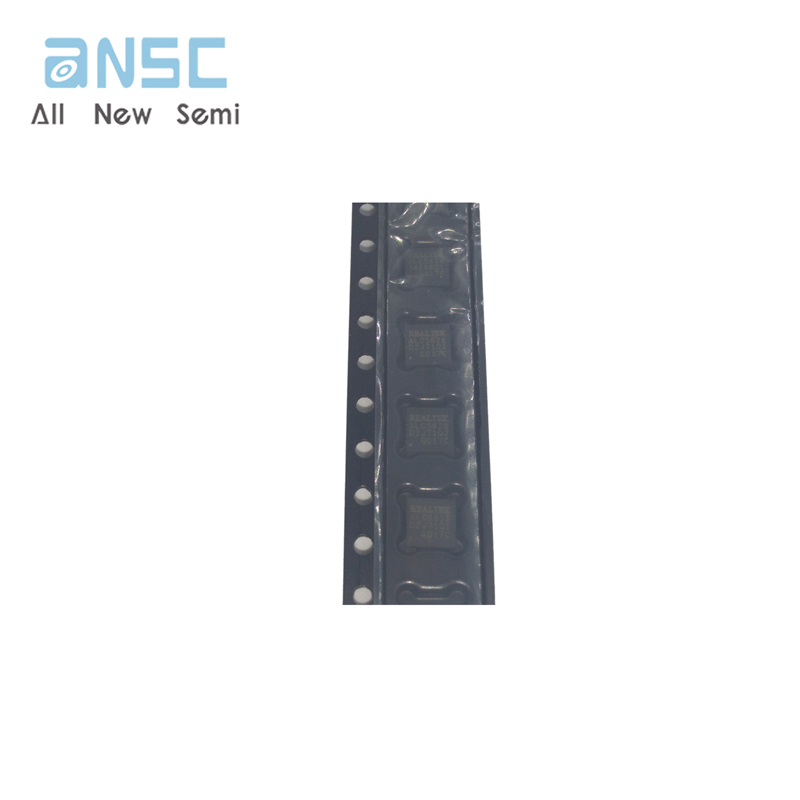

Actual image of the product

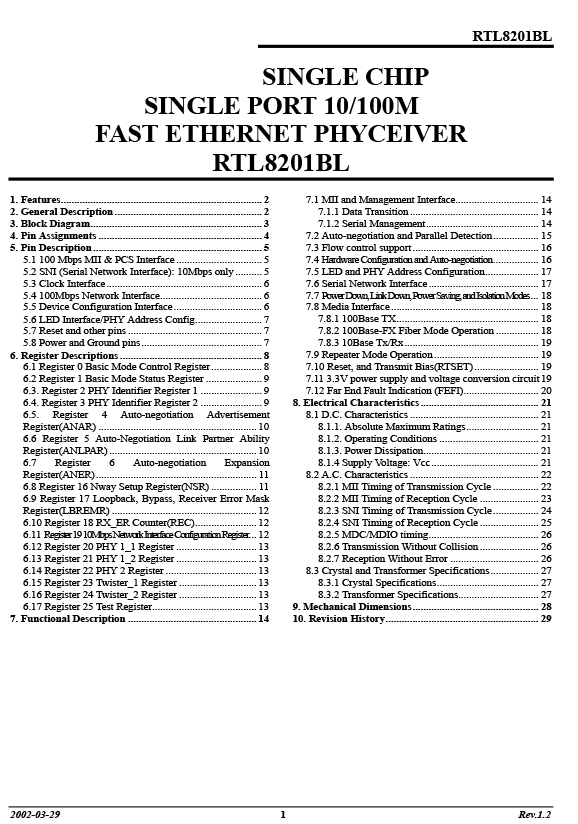

Product datasheet
For more information, please download
