You can contact me for the best price AR8035-AL1A Telecommunication IC Network Interface Ethernet Transceiver Hot sale Original

Manufacturer Product Number
AR8035-AL1A
Description

AR8035-AL1A Telecommunication IC Network Interface Ethernet Transceiver Hot sale Original

Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

AR8033, and AR8031.
The AR8031 is 4th generation, single port, 10/100/1000 Mbps Ethernet PHY. It supports both RGMII and SGMII interfaces to the MAC. The AR8031 provides a low-power, low BOM (bill-of-materials) cost solution for a wide range of applications, including enterprise, carrier and home networks, SFP modules and media converters. The AR8031 supports both Sync-E and IEEE1588-V2 timing protcols.

The AR8031 device incorporates a 1.25 GHz SERDES which can be connected directly to fiber-optic transceivers for 1000 Base-X/100 Base-FX mode.

Product Description

Type# Description
ANSC PART# ANSC- AR8035-AL1A
Ihs Manufacturer Original
Package Description QFN-48
Data Rate 1000000 Mbps
JESD-30 Code S-XQCC-N48
Length 5 mm
Number of Functions 1
Number of Terminals 48
Number of Transceivers 1
Operating Temperature-Max 70 °C
Operating Temperature-Min /
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC48,.24SQ,16
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max 0.8 mm
Supply Current-Max 113.7 mA
Supply Voltage-Nom 3.3 V
Surface Mount YES
Telecom IC Type ETHERNET TRANSCEIVER
Temperature Grade COMMERCIAL
Terminal Form NO LEAD
Terminal Pitch 0.4 mm
Terminal Position QUAD
Width 5 mm

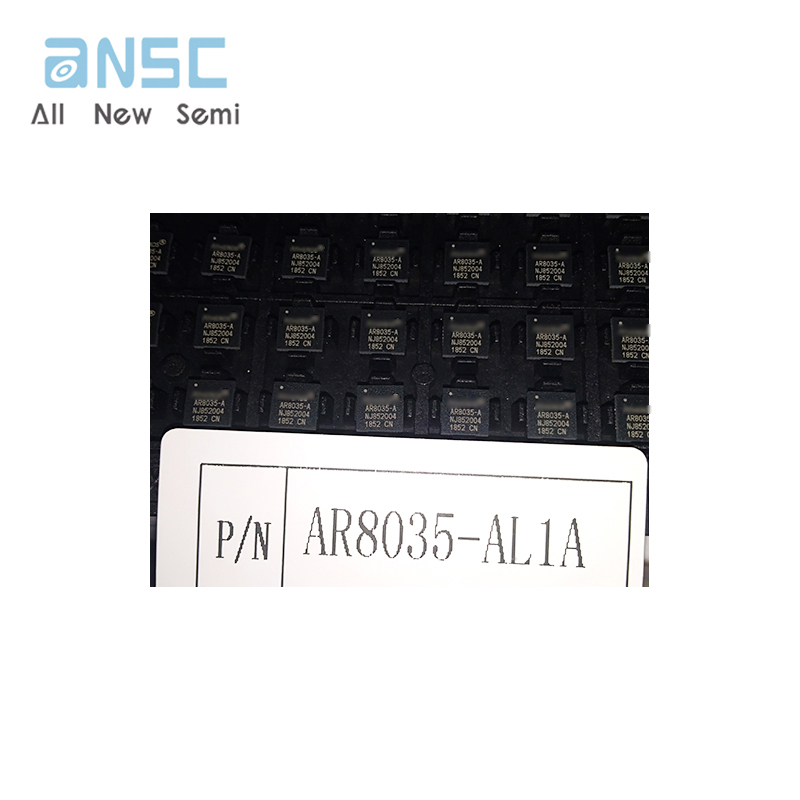

Product Photos

AR8035-AL1A

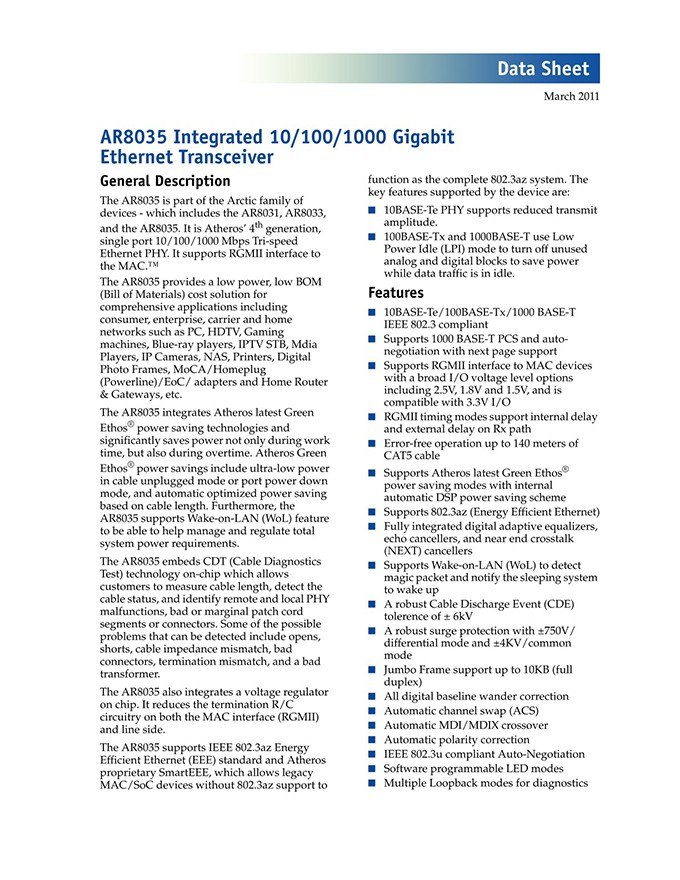

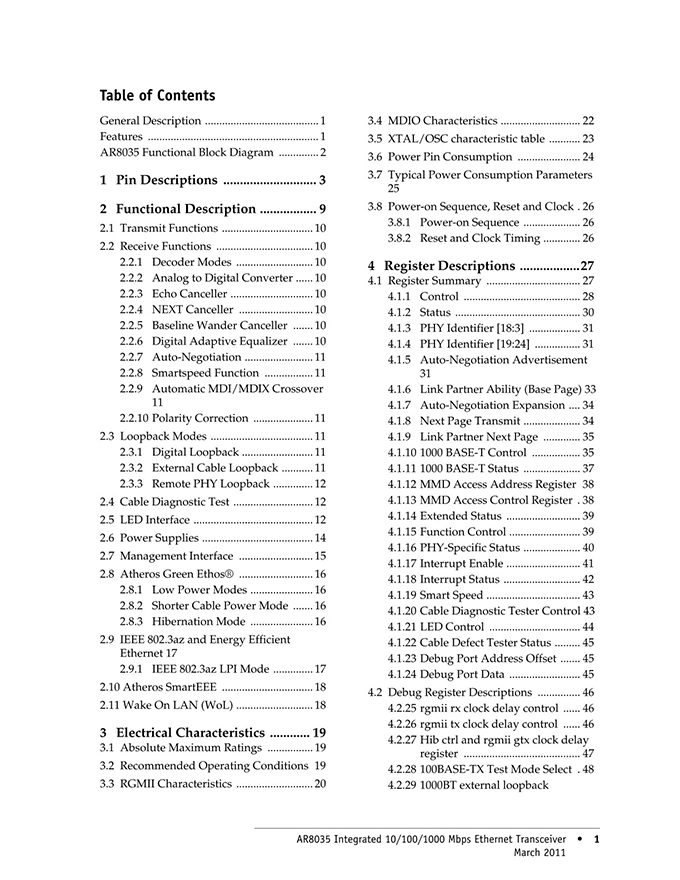

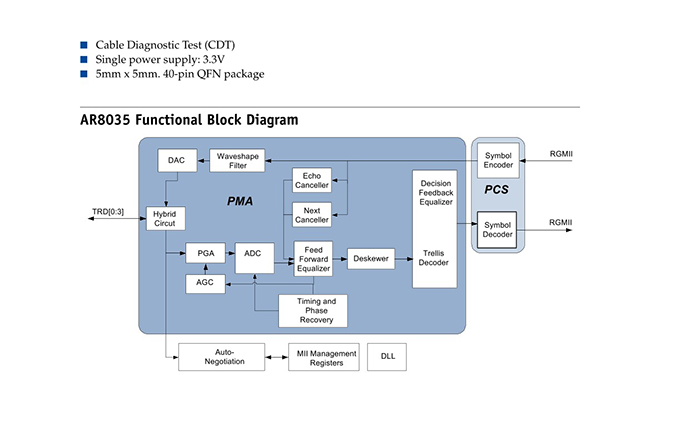

Product datasheet

For more information, please download
