Hot sale Original LM211D IC COMPARATOR 1 GEN PUR 8SOIC Comparator General Purpose DTL, MOS, Open-Collector,

Product Overview

To facilitate transportation, it comes packaged in 8-SOIC (0.154, 3.90mm Width) .There is a comparator of type DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL output on this device.The chip is packaged with Tube .The device is designed with 8 terminations.A comparator supplied with 15V voltage can complete many demanding tasks.Electronic comparator can be classified as a General Purpose chip.The board includes 8 pins.Electronic comparator is recommended to mount using type Surface Mount .If you want to avoid malfunction, you should set the operating temperature to -40°C~85°C .This comparator has 8 pins.In case you are looking for more pin-to-pin solutions, you may want to search LM211 .A quiescent current of 6mA is displayed by this comparator.Mounting on PCBs or other boards is easy with the Surface Mount .Normal operation of the device requires 5.1mA supply current.If the current supply exceeds 6mA , the comparator might be damaged.The voltage formula shows that the part has a voltage gain of 106.02dB .The operating supply voltage for normal operation should be 28V .

Product Features

DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL output capability
General Purpose IC
Operates under -40°C~85°C
Quiescent Current: 6mA
Voltage Gain: 106.02dB

Product Applications

LM211D linear comparators applications.

• Analog front end

• Power management

• Point of load regulators

• DC/DC and AC/DC power supplies

• System control and monitoring

• Wearable Devices

• Mobile Phones and Tablets

• Battery-Powered Electronics

• General Purpose Low Voltage Applications

• Limit Comparators

Product Description

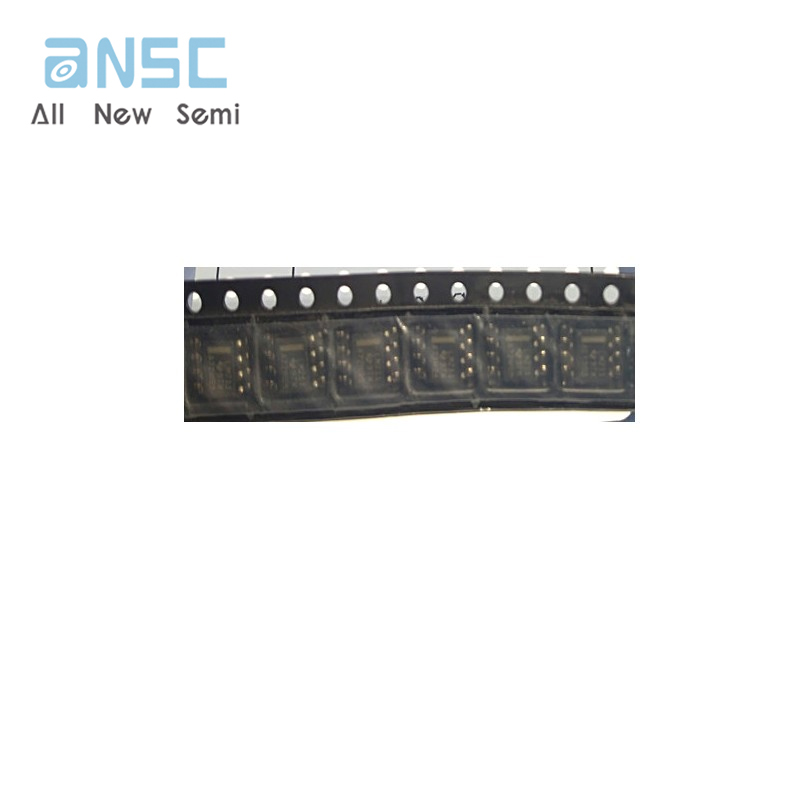

Actual image of the product

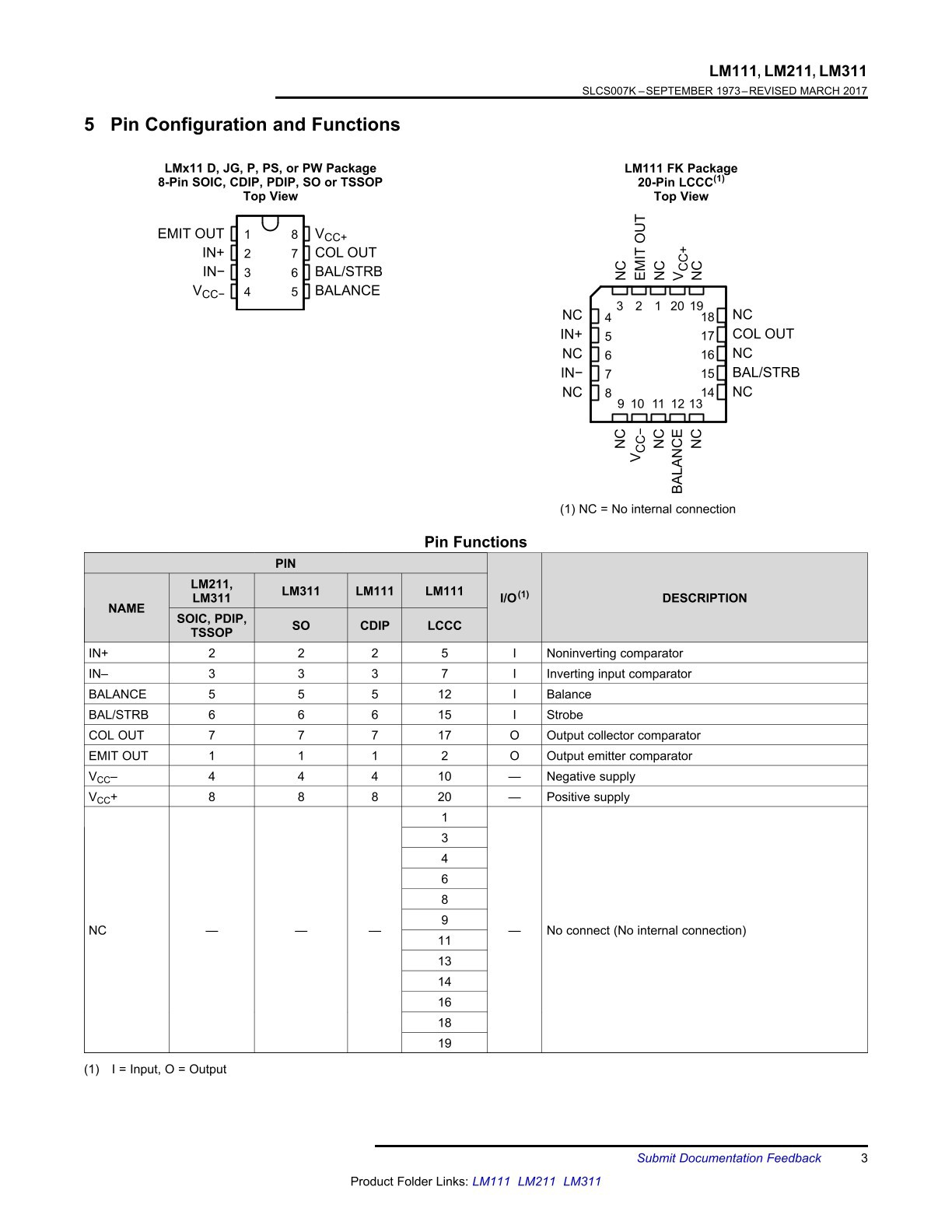

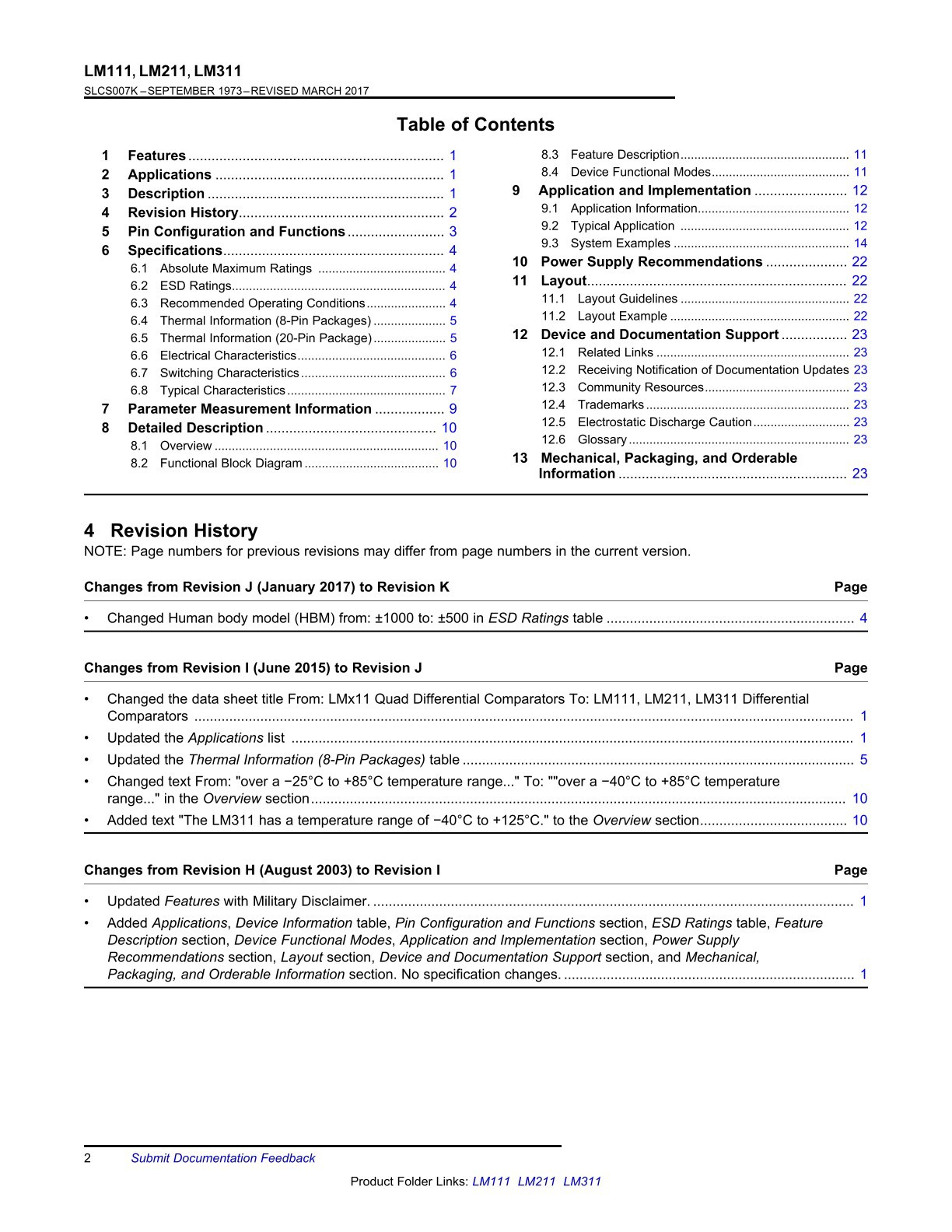

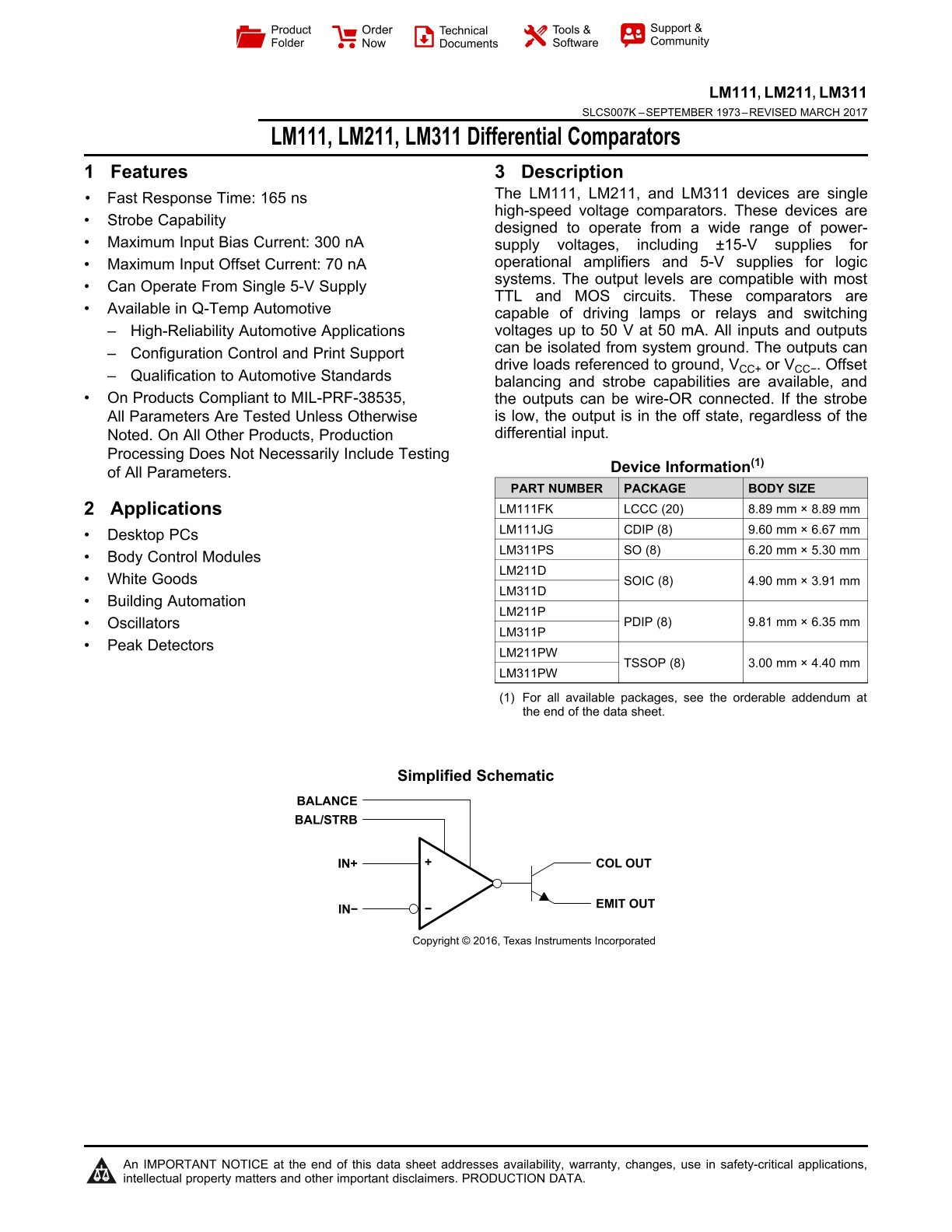

Product datasheet

For more information, please download
