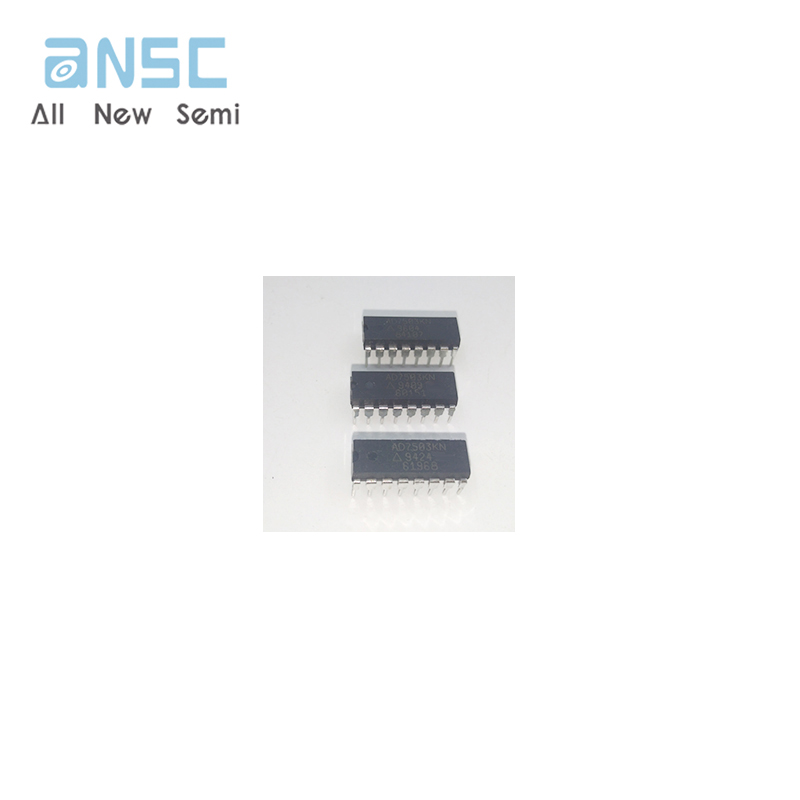

Hot sale original AD7503KN IC MUX 8:1 300OHM 16DIP 1 Circuit IC Switch 8:1 300Ohm 16-PDIP
Manufacturer Product Number
AD7503KN
Description
AD7503KN IC MUX 8:1 300OHM 16DIP 1 Circuit IC Switch 8:1 300Ohm 16-PDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The AD7501 and AD7503 are monolithic CMOS, 8-channel analog multiplexers which switch one of eight inputs to a common output, depending on the state of three binary address lines and an “enable” input. The AD7503 is identical to the AD7501 except its “enable” logic is inverted. All digital inputs are TTL/DTL and CMOS logic compatible. The AD7502 is a monolithic CMOS dual 4-channel analog multiplexer. Depending on the state of two binary address inputs and an “enable,” it switches two output buses to two of eight inputs. FEATURESDTL/TTL/CMOS Direct Interface Power Dissipation: 30µW RON: 170Ω Standard 16-Lead DlPs and 20-Terminal Surface Mount Packages |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD7503KN |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 12Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 800ns, 800ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | AD7503 |
