Hot sale Original Interface Drivers AM26LV32IDR IC RECEIVER 0/4 16SOIC 0/4 Receiver RS422, RS485 16-SOIC

Manufacturer Product Number
AM26LV32IDR
Description

Original Interface Drivers AM26LV32IDR IC RECEIVER 0/4 16SOIC 0/4 Receiver RS422, RS485 16-SOIC

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

1 Features

• Meets or exceeds standard TIA/EIA-422-B and

ITU recommendation V.11

• Operates from a single 3.3-V power supply

• Switching rates up to 32 MHz

• ESD Protection for RS422 bus pins

(See ESD Ratings)

• Low power dissipation: 27 mW typical

• Open circuit fail-safe

• ±7-V Common-mode input voltage range with

±200-mV sensitivity

• Accepts 5-V logic inputs with 3.3-V supply (enable

inputs)

• Input hysteresis: 35 mV typical

• Pin-to-pin compatible with AM26C32, AM26LS32

• Ioff Supports partial-power-down mode operation



2 Applications

• High-reliability automotive applications

• Configuration control and print support

• ATM and cash counters

• Smart grid

• AC and servo motor drive

Product Description

TYPE DESCRIPTION
ANSC PART# ANSC - AM26LV32IDR
Category Integrated Circuits (ICs)
Interface
Drivers, Receivers, Transceivers
Manufacturer Original
Series -
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Type Receiver
Protocol RS422, RS485
Number of Drivers/Receivers 0/4
Duplex -
Receiver Hysteresis 35 mV
Data Rate -
Voltage - Supply 3V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Base Product Number AM26LV32

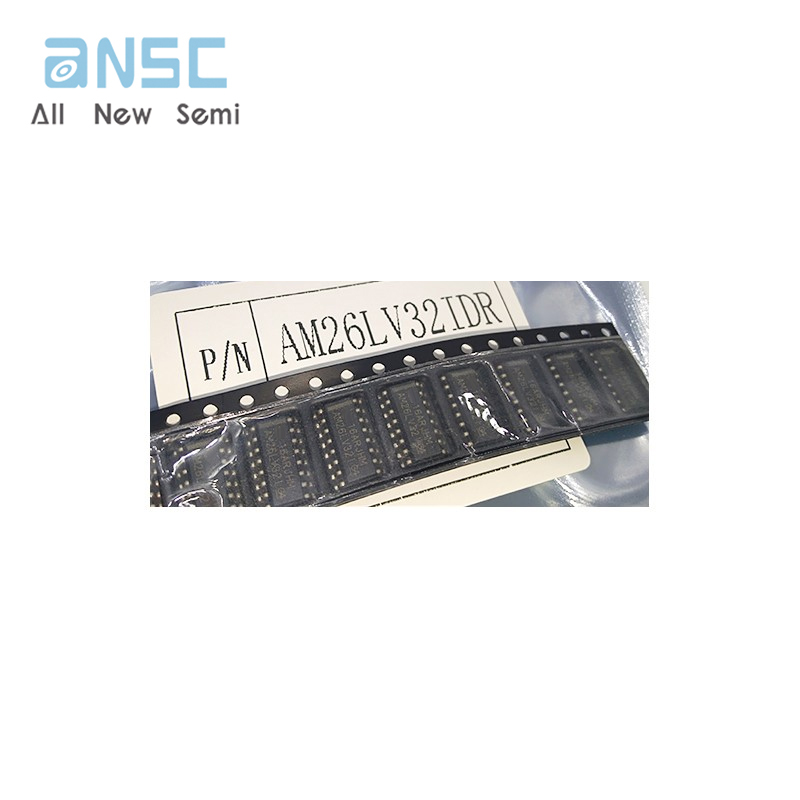

Product Photos

AM26LV32IDR

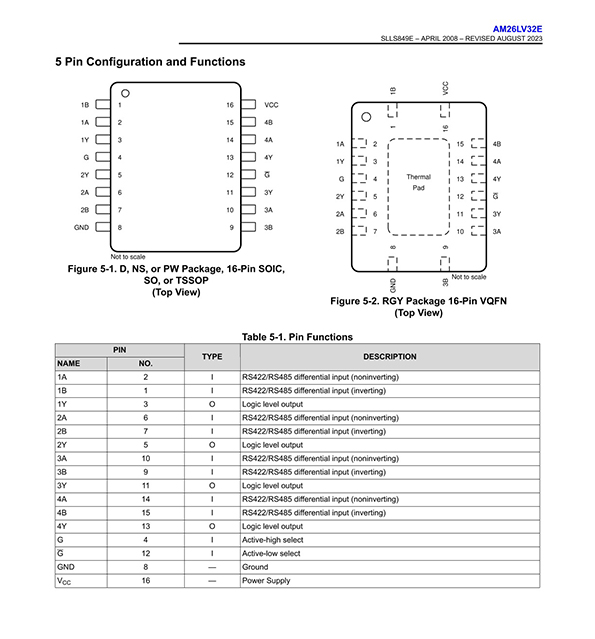

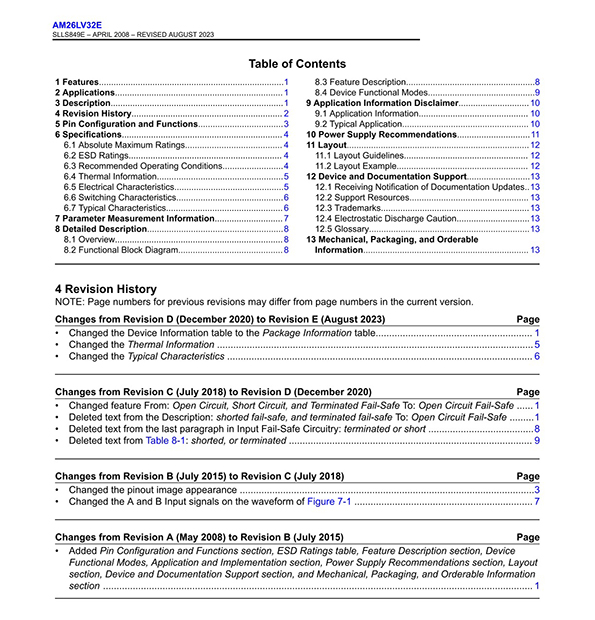

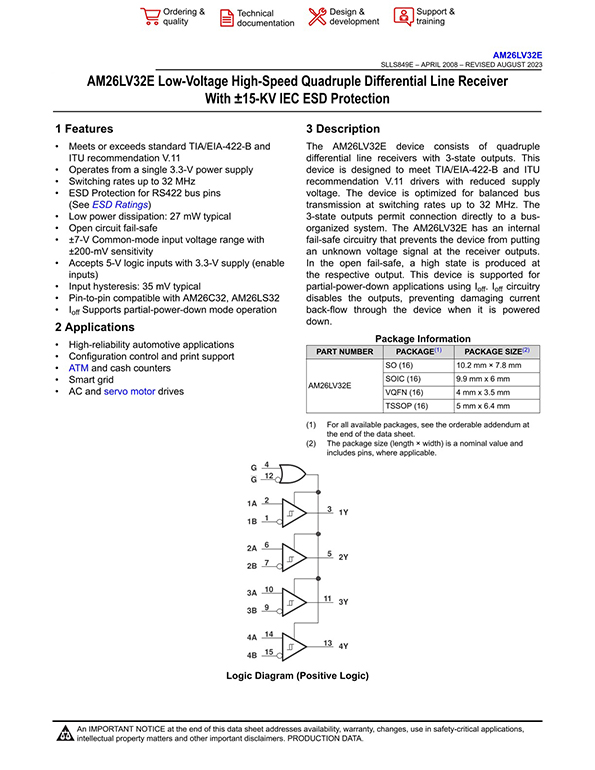

Product datasheet
