Hot sale original electronics ADV7123JST240 IC DAC VIDEO TRPL HI SPD 48-LQFP Bit Digital to Analog Converter 48-LQFP (7x7)

Manufacturer
Original
Manufacturer Product Number
ADV7123JST240
Description

ADV7123JST240 IC DAC VIDEO TRPL HI SPD 48-LQFP Bit Digital to Analog Converter 48-LQFP (7x7)

Package Condition
Bag
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

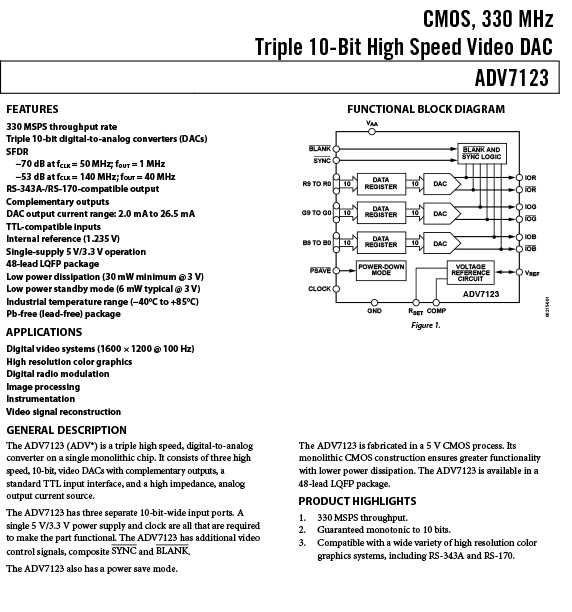

GENERAL DESCRIPTION
The ADV7123 (ADV®) is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source.
FEATURES
330 MSPS Throughput Rate
Triple 10-Bit D/A Converters
SFDR
–70 dB at fCLK = 50 MHz; fOUT = 1 MHz
–53 dB at fCLK = 140 MHz; fOUT = 40 MHz
RS-343A/RS-170 Compatible Output
Complementary Outputs
DAC Output Current Range 2 mA to 26 mA
TTL Compatible Inputs
Internal Reference (1.23 V)
Single-Supply 5 V/3.3 V Operation
48-Lead LQFP Package
Low Power Dissipation (30 mW Min @ 3 V)
Low Power Standby Mode (6 mW Typ @ 3 V)
Industrial Temperature Range (–40°C to +85°C)
APPLICATIONS
Digital Video Systems (1600 1200 @ 100 Hz)
High Resolution Color Graphics
Digital Radio Modulation
Image Processing
Instrumentation
Video Signal Reconstruction

Product Description

TYPE DESCRIPTION
ANSC PART# ANSC- ADV7123JST240
Category Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
Manufacturer Original
Series -
Packaging Bag
Part Status Obsolete
DigiKey Programmable Not Verified
Package / Case 48-LQFP
Supplier Device Package 48-LQFP (7x7)
Mounting Type Surface Mount
Base Product Number ADV7123

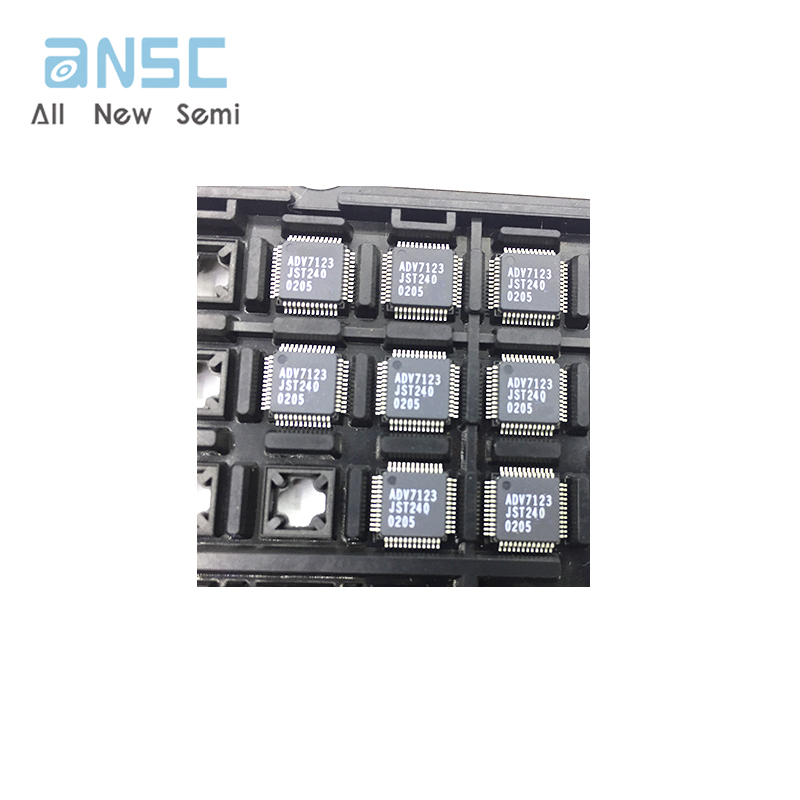

Product Photos

ADV7123JST240

Product datasheet

For more information, please download
