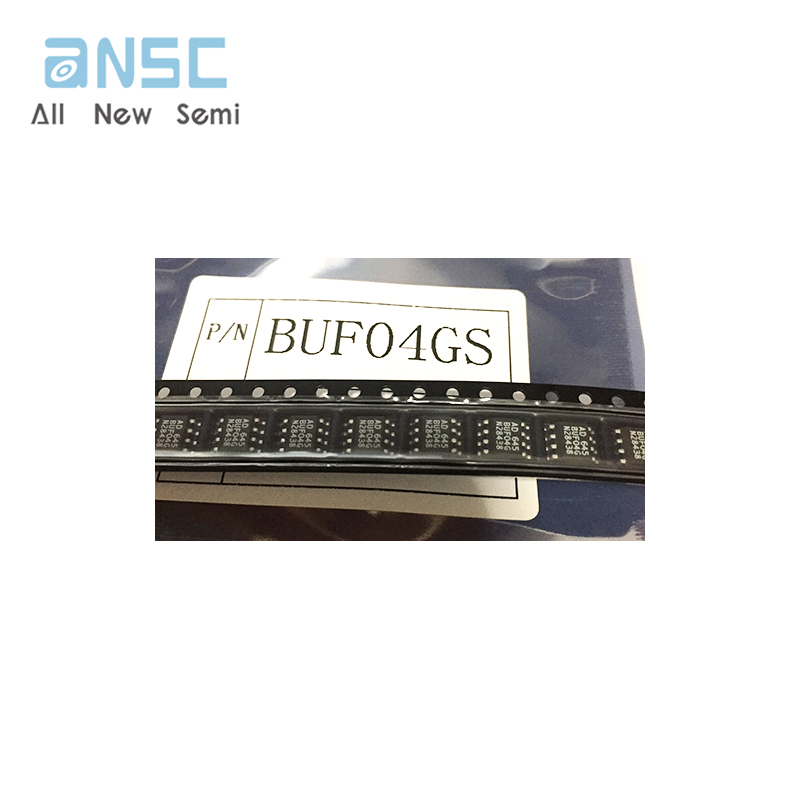

You can contact me for the best price BUF04GS IC BUFFER AMPLIFIER, PDSO8, SOIC-8, Buffer Amplifier
Manufacturer Product Number
BUF04GS
Description
BUF04GS IC BUFFER AMPLIFIER, PDSO8, SOIC-8, Buffer Amplifier
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The BUF04GS is a high-speed buffer amplifier from Analog Devices, Inc. This industrial-grade, dual-channel buffer amplifier is designed for a wide range of applications, including instrumentation, medical equipment, and industrial control systems. The device is packaged in a small outline (SOIC-8) package, making it suitable for surface-mount applications. Features: High-speed operation with a bandwidth of 110 MHz Low input offset voltage of 4000 μV Low supply current of 8.5 mA Dual supply voltage range of ±5 V to ±15 V High slew rate of 3000 V/μs Low noise and high PSRR Industrial temperature range of -40°C to 85°C Surface-mount package with gull-wing leads Applications: Instrumentation and measurement systems Medical equipment and devices Industrial control systems Automotive applications (not suitable for automotive use) General-purpose amplification and buffering |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- BUF04GS |
| Manufacturer | Original |
| Part Package | SOIC |
| Package Description | SOP, SOP8,.25 |
| Pin Count | 8 |
| Amplifier Type | BUFFER |
| Average Bias Current-Max (IIB) | 10 µA |
| Bandwidth (3dB)-Nom | 110 MHz |
| Bias Current-Max (IIB) @25C | 5 µA |
| Input Offset Voltage-Max | 4000 µV |
| Length | 4.9 mm |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Current-Min | 0.05 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 235 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Min | 2000 V/us |
| Slew Rate-Nom | 3000 V/us |
| Supply Current-Max | 8.5 mA |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Width | 3.9 mm |
