Hot sale original N80C188-20 IC CMOS High-Integration Introducing new features to the 80186/C188 family 16-Bit Microcontroller
Manufacturer Product Number
N80C188-20
Description
N80C188-20 IC CMOS High-Integration Introducing new features to the 80186/C188 family 16-Bit Microcontroller
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The N80C188-20 is a 16-bit microprocessor designed for embedded systems applications. This microprocessor features a 20MHz clock speed, 16-bit data bus width, and a 20-bit address bus width. It is packaged in a PLCC package with 68 pins and is RoHS compliant. Features: DRAM refresh control unit for efficient memory management Programmable interrupt controller for flexible interrupt handling Low power mode for reduced power consumption 2 DMA channels and 5 external interrupts for efficient data transfer and event handling 16-bit fixed-point arithmetic for precise calculations Compatible with 5V power supplies Applications: Primary applications: Embedded systems, industrial control systems, and automotive electronics Secondary applications: Consumer electronics, medical devices, and aerospace systems |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - N80C188-20 |
| Part Package Code | LCC |
| Package Description | Qccj, Ldcc68,1.0sq |
| Pin Count | 68 |
| Additional Feature | Dram Refresh Control Unit; Programmable Interrupt Controller |
| Address Bus Width | 20 |
| Bit Size | 16 |
| Boundary Scan | No |
| Clock Frequency-Max | 40 Mhz |
| External Data Bus Width | 8 |
| Format | Fixed Point |
| Integrated Cache | No |
| JESD-30 Code | S-PQCC-J68 |
| JESD-609 Code | e0 |
| Length | 24.2062 Mm |
| Low Power Mode | Yes |
| Number of DMA Channels | 2 |
| Number of External Interrupts | 5 |
| Number of Serial I/Os | |
| Number of Terminals | 68 |
| On Chip Data RAM Width | |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Package Body Material | Plastic/Epoxy |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC68,1.0SQ |
| Package Shape | Square |
| Package Style | Chip Carrier |
| Qualification Status | Not Qualified |
| RAM (words) | 0 |
| Seated Height-Max | 4.572 Mm |
| Speed | 20 Mhz |
| Supply Current-Max | 100 Ma |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Temperature Grade | Commercial |
| Terminal Finish | Tin Lead |
| Terminal Form | J Bend |
| Terminal Pitch | 1.27 Mm |
| Terminal Position | Quad |
| Width | 24.2062 Mm |
| uPs/uCs/Peripheral ICs Type | Microprocessor |

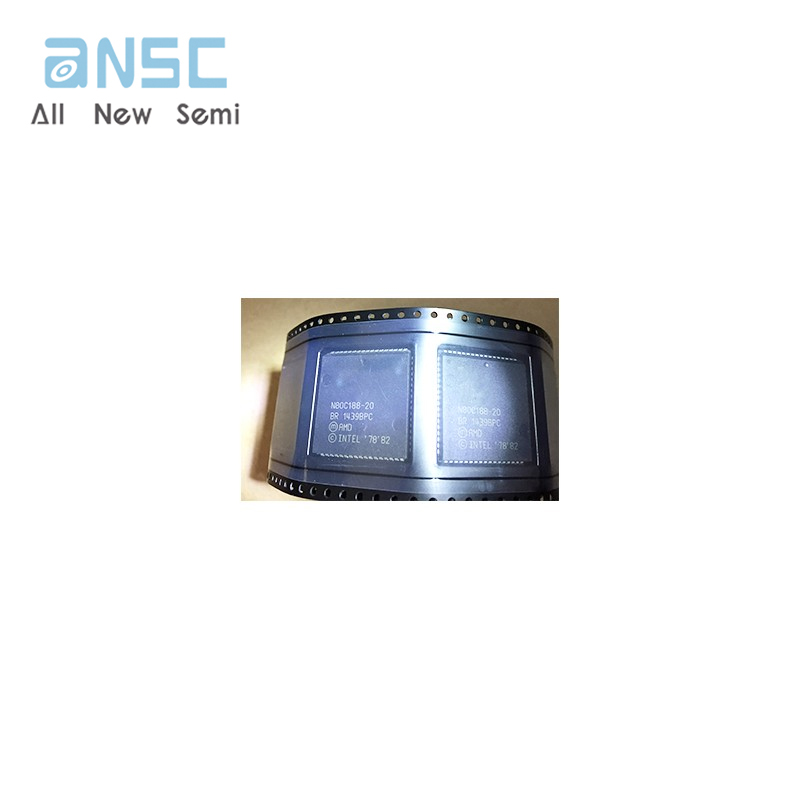

Actual image of the product

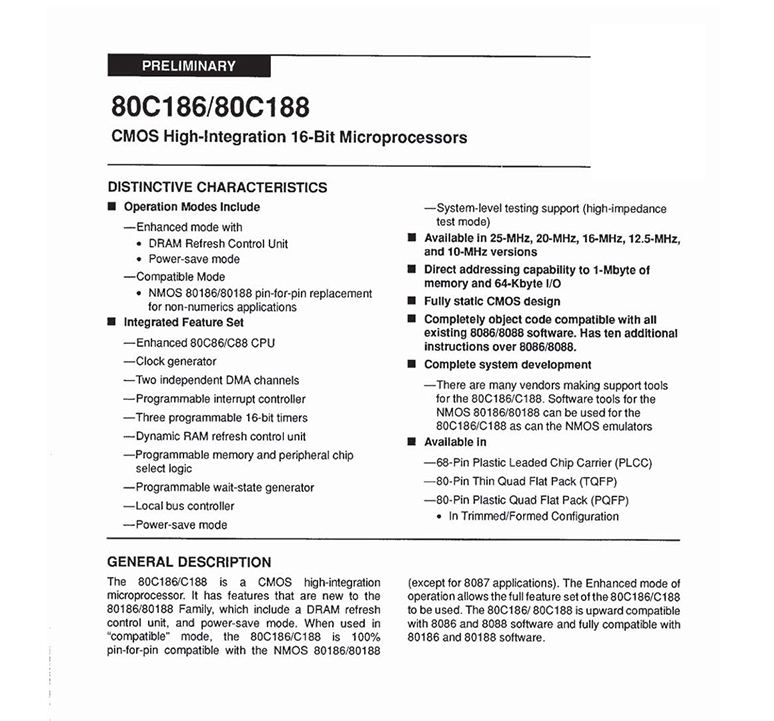

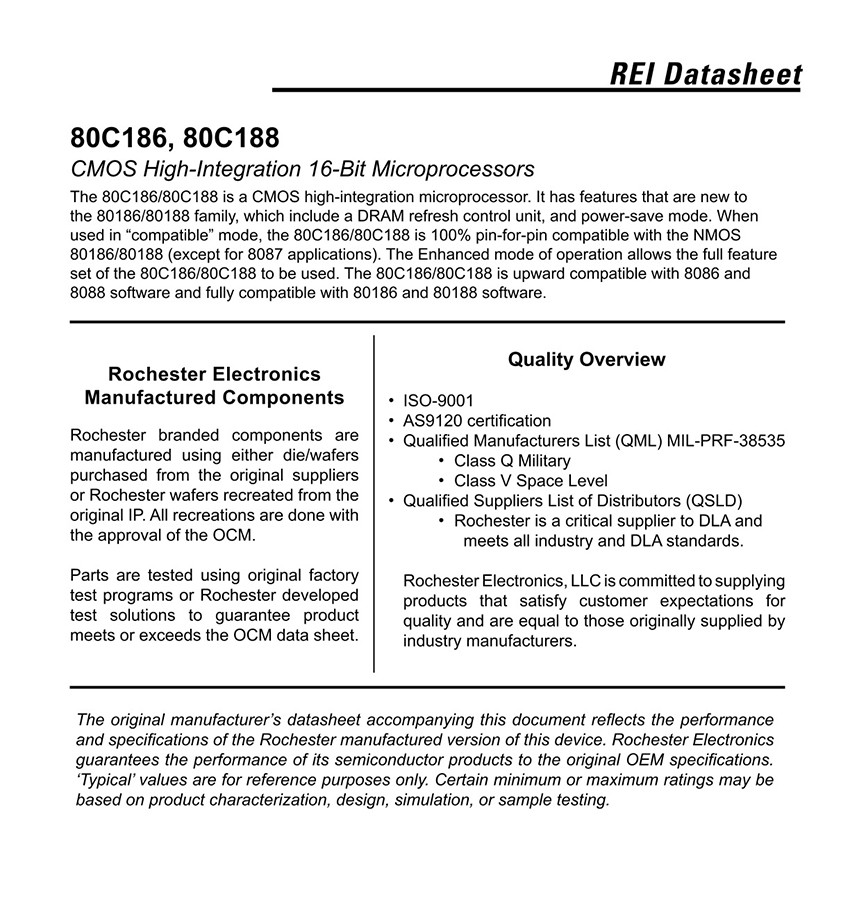

Product datasheet
