Hot sale original CD4053BE Analog switches & muxes 20-V, 2:1 (SPDT), 3-channel analog multiplexer with logic-level conversion

Manufacturer Product Number
CD4053BE
Description

CD4053BE Analog switches & muxes 20-V, 2:1 (SPDT), 3-channel analog multiplexer with logic-level conversion

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

The CD4051B, CD4052B, and CD4053B analog multiplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. Control of analog signals up to 20VP-P can be achieved by digital signal amplitudes of 4.5V to 20V (if VDD-VSS = 3V, a VDD-VEE of up to 13V can be controlled; for VDD-VDD level differences above 13V, a VDD-VDD of at least 4.5V is required). For example, if VDD = +4.5V, VDD = 0V, and VDD = -13.5V, analog signals from -13.5V to +4.5V can be controlled by digital inputs of 0V to 5V. These multiplexer circuits dissipate extremely low quiescent power over the full VDD-VDD and VDD-VDD supply-voltage ranges, independent of the logic state of the control signals. When a logic “1” is present at the inhibit input terminal, all channels are off.

Features
• Wide Range of Digital and Analog Signal Levels
- Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 20V
- Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤20VP-P
• Low ON Resistance, 125Ω (Typ) Over 15VP-P Signal Input Range for VDD-VEE = 18V
• High OFF Resistance, Channel Leakage of ±100pA (Typ) at VDD-VEE = 18V
• Logic-Level Conversion for Digital Addressing Signals of 3V to 20V (VDD-VSS = 3V to 20V) to Switch Analog Signals to 20VP-P (VDD-VEE = 20V)
• Matched Switch Characteristics, rON = 5Ω (Typ) for VDD-VEE = 15V
• Very Low Quiescent Power Dissipation Under All Digital Control Input and Supply Conditions, 0.2µW (Typ) at VDD-VSS = VDD-VEE = 10V
• Binary Address Decoding on Chip
• 5V, 10V and 15V Parametric Ratings
• 10 Tested for Quiescent Current at 20V
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range, 100nA at 18V and 25°C
• Break-Before-Make Switching Eliminates Channel Overlap
Applications
• Analog and Digital Multiplexing and Demultiplexing
• A/D and D/A Conversion
• Signal Gating

Product Description

Type Description
ANSC PART# ANSC- CD4053BE
Category Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
Manufacturer Original
Series -
Packaging Tube
Part Status Active
Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:01
Number of Circuits 3
On-State Resistance (Max) 240Ohm
Channel-to-Channel Matching (ΔRon) 5Ohm
Voltage - Supply, Single (V+) 3V ~ 20V
Voltage - Supply, Dual (V±) ±2.5V ~ 9V
Switch Time (Ton, Toff) (Max) -
-3db Bandwidth 30MHz
Charge Injection -
Channel Capacitance (CS(off), CD(off)) 0.2pF, 9pF
Current - Leakage (IS(off)) (Max) 100nA
Crosstalk -40dB @ 6MHz
Operating Temperature -55°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Base Product Number CD4053

Product Photos

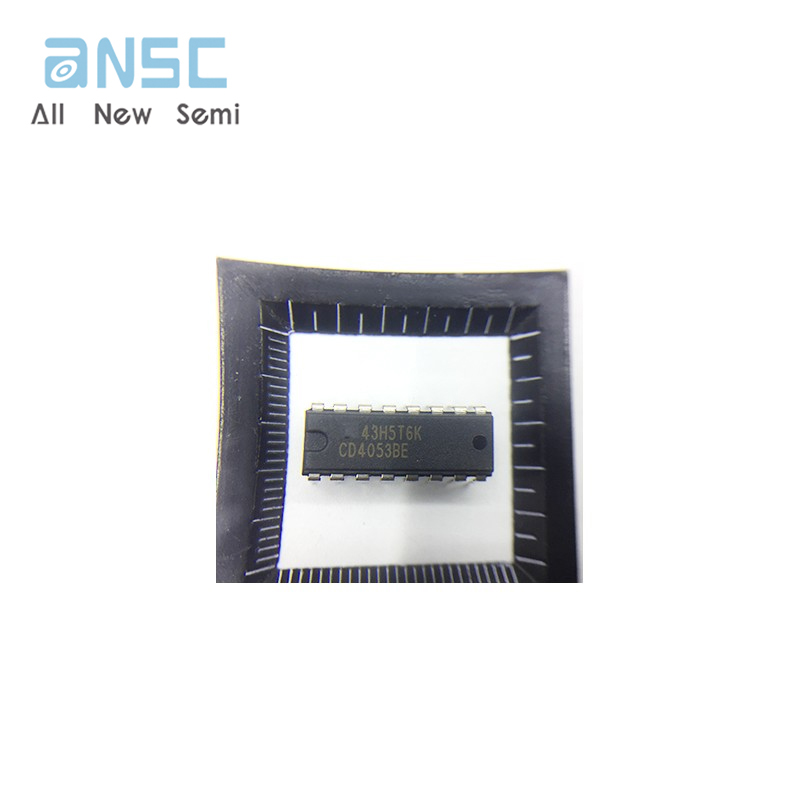

CD4053BE

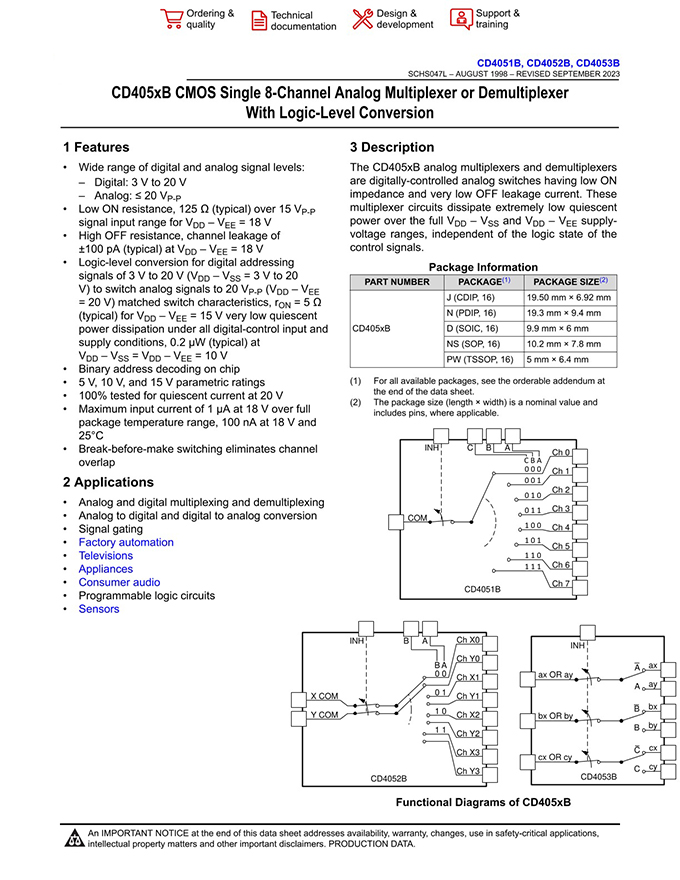

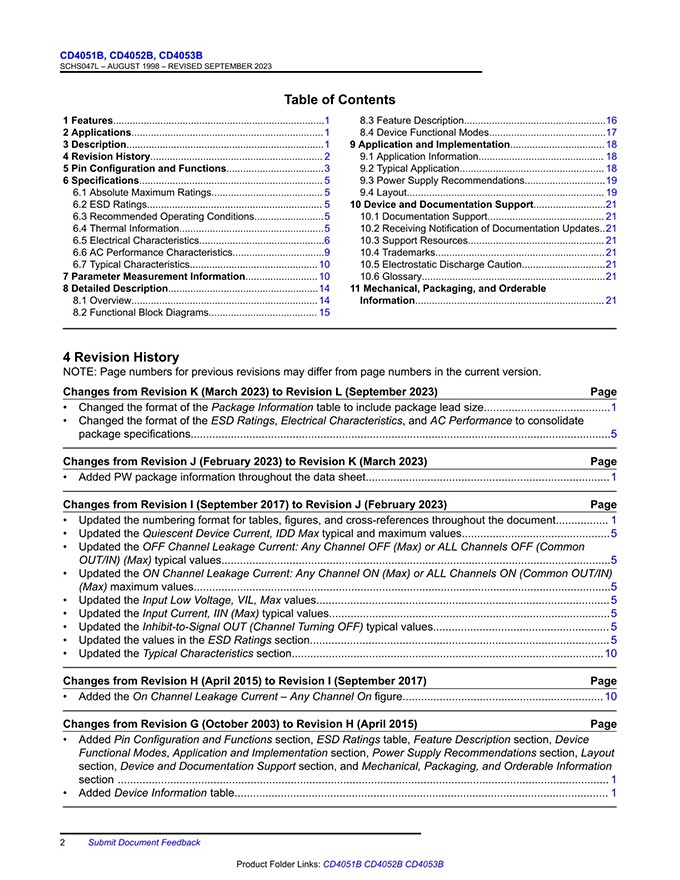

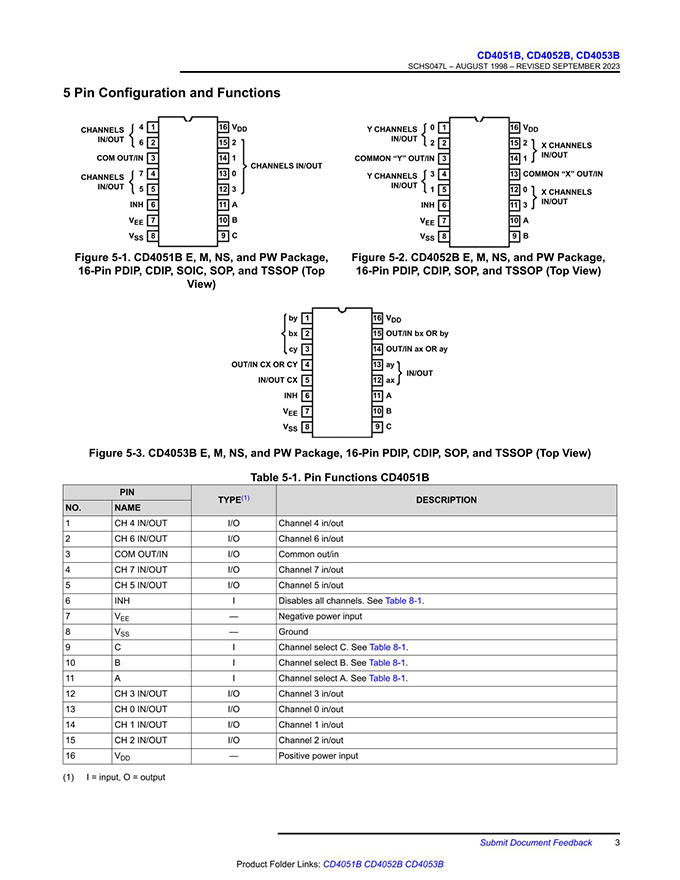

Product datasheet

For more information, please download
