Hot sale original DAC08Q IC 8-Bit, High Speed, Multiplying D/A Converter (Universal Digital Logic Interface)

Manufacturer Product Number
DAC08Q
Description

DAC08Q IC 8-Bit, High Speed, Multiplying D/A Converter (Universal Digital Logic Interface)

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

GENERAL DESCRIPTION
The DAC08 series of 8-bit monolithic digital-to-analog converters provide very high-speed performance coupled with low cost and outstanding applications flexibility.
Advanced circuit design achieves 85 ns settling times with very low “glitch” energy and at low power consumption. Monotonic multiplying performance is attained over a wide 20-to-1 reference current range. Matching to within 1 LSB between reference and full-scale currents eliminates the need for full-scale trimming in most applications. Direct interface to all popular logic families with full noise immunity is provided by the high swing, adjustable threshold logic input.
FEATURES
Fast Settling Output Current: 85 ns
Full-Scale Current Prematched to ±1 LSB
Direct Interface to TTL, CMOS, ECL, HTL, PMOS
Nonlinearity to 0.1% Maximum over Temperature Range
High Output Impedance and Compliance: –10 V to +18 V
Complementary Current Outputs
Wide Range Multiplying Capability: 1 MHz Bandwidth
Low FS Current Drift: ±10 ppm/°C
Wide Power Supply Range: ±4.5 V to ±18 V
Low Power Consumption: 33 mW @ ±5 V
Low Cost
Available in Die Form

Product Description

Type# Description
ANSC PART# ANSC- DAC08Q
Ihs Manufacturer Original
Part Package Code DIP
Package Description DIP, DIP16,.3
Pin Count 16
Analog Output Voltage-Max 18 V
Analog Output Voltage-Min -10 V
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format PARALLEL, 8 BITS
Length 19.05 mm
Linearity Error-Max (EL) 0.19%
Negative Supply Voltage-Nom -15 V
Number of Bits 8
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Settling Time-Max
Settling Time-Nom (tstl) 0.085 µs
Supply Current-Max 7.8 mA
Supply Voltage-Nom 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn63Pb37)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

Product Photos

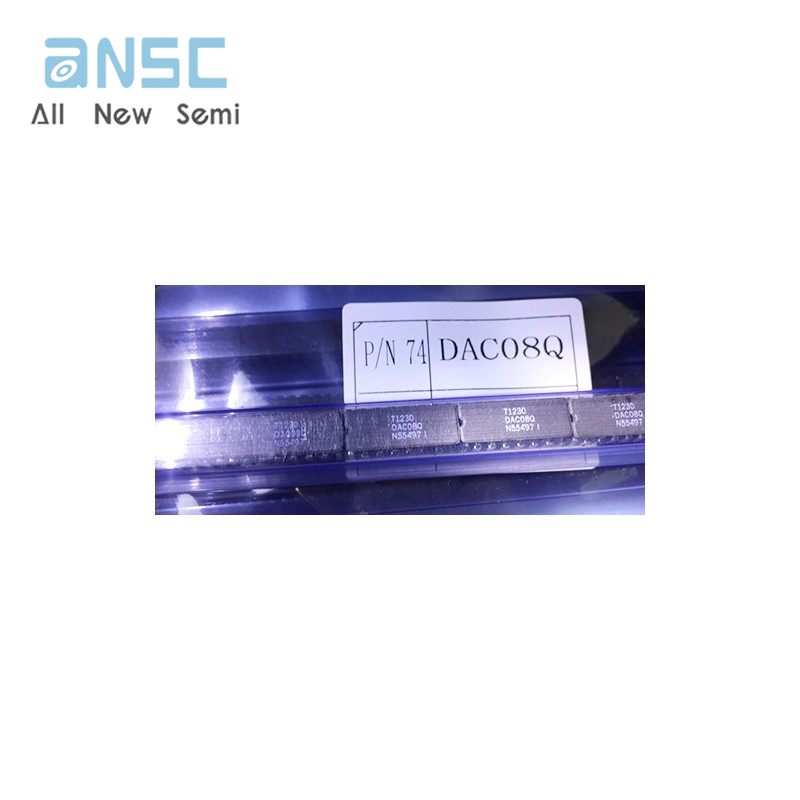

DAC08Q
