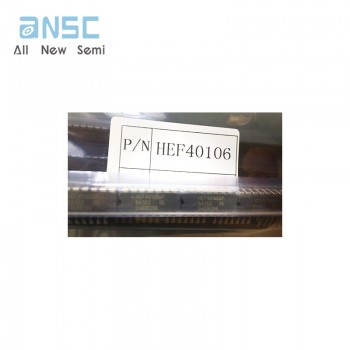

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original HEF40106BP Logic 4000/14000/40000 SERIES HEX 1-INPUT INVERT GATE PDIP14 0.300 INCH PLASTIC
Manufacturer Product Number
HEF40106BP
Description
HEF40106BP Logic 4000/14000/40000 SERIES HEX 1-INPUT INVERT GATE PDIP14 0.300 INCH PLASTIC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
DESCRIPTION Each circuit of the HEF40106B functions as an inverter with Schmitt-trigger action. The Schmitt-trigger switches at different points for the positive and negative-going input signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH). |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- HEF40106BP |
| Ihs Manufacturer | Original |
| Part Package Code | MO-001 |
| Package Description | 0.300 INCH, PLASTIC, MO-001, SC501-14, SOT27-1, DIP-14 |
| Pin Count | 14 |
| Family | 4000/14000/40000 |
| Length | 19.025 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | INVERTER |
| Number of Functions | 6 |
| Number of Inputs | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Prop. Delay@Nom-Sup | 180 ns |
| Propagation Delay (tpd) | 180 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | YES |
| Seated Height-Max | 4.2 mm |
| Supply Voltage-Max (Vsup) | 15 V |
| Supply Voltage-Min (Vsup) | 3 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
