You can contact me for the best price LXT971ALC Integrated Circuits 3.3V Dual-Speed Fast Ethernet PHY Transceiver
Manufacturer Product Number
LXT971ALC
Description
LXT971ALC Integrated Circuits 3.3V Dual-Speed Fast Ethernet PHY Transceiver Hot sale original
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
The LXT971A is an IEEE compliant Fast Ethernet PHY Transceiver that directly supports both 100BASE-TX and 10BASE-T applications. It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MACs). The LXT971A also provides a Low Voltage PECL (LVPECL) interface for use with 100BASE-FX fiber networks. Product Features ■ 3.3V Operation. ■ Low power consumption (300 mW typical). ■ Low-power “Sleep” mode. ■ 10BASE-T and 100BASE-TX using a single RJ-45 connection. ■ Supports auto-negotiation and parallel detection. ■ MII interface with extended register capability. ■ Robust baseline wander correction performance. ■ 100BASE-FX fiber-optic capable. ■ Standard CSMA/CD or full-duplex operation. ■ Supports JTAG boundary scan. ■ Configurable via MDIO serial port or hardware control pins. ■ Integrated, programmable LED drivers. ■ 64-ball Plastic Ball Grid Array (PBGA). — LXT971ABC - Commercial (0° to 70°C ambient). —LXT971ABE - Extended (-40° to 85°C ambient). ■ 64-pin Low-profile Quad Flat Package (LQFP). — LXT971ALC - Commercial (0° to 70°C ambient). — LXT971ALE - Extended (-40° to 85°C ambient). Applications ■ Combination 10BASE-T/100BASE-TX or 100BASE-FX Network Interface Cards (NICs) ■ 10/100 PCMCIA Cards ■ Cable Modems and Set-Top Boxes |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LXT971ALC |
| Part Package Code | QFP |
| Package Description | Lfqfp, Qfp64,.47sq,20 |
| Pin Count | 64 |
| Data Rate | 100000 Mbps |
| JESD-30 Code | S-PQFP-G64 |
| Length | 10 Mm |
| Number of Functions | 1 |
| Number of Terminals | 64 |
| Number of Transceivers | 1 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Package Body Material | Plastic/Epoxy |
| Package Code | LFQFP |
| Package Equivalence Code | QFP64,.47SQ,20 |
| Package Shape | Square |
| Package Style | Flatpack, Low Profile, Fine Pitch |
| Peak Reflow Temperature (Cel) | Not Specified |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.6 Mm |
| Supply Current-Max | 0.11 Ma |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Telecom IC Type | Ethernet Transceiver |
| Temperature Grade | Commercial |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.5 Mm |
| Terminal Position | Quad |
| Time@Peak Reflow Temperature-Max (s) | Not Specified |
| Width | 10 Mm |

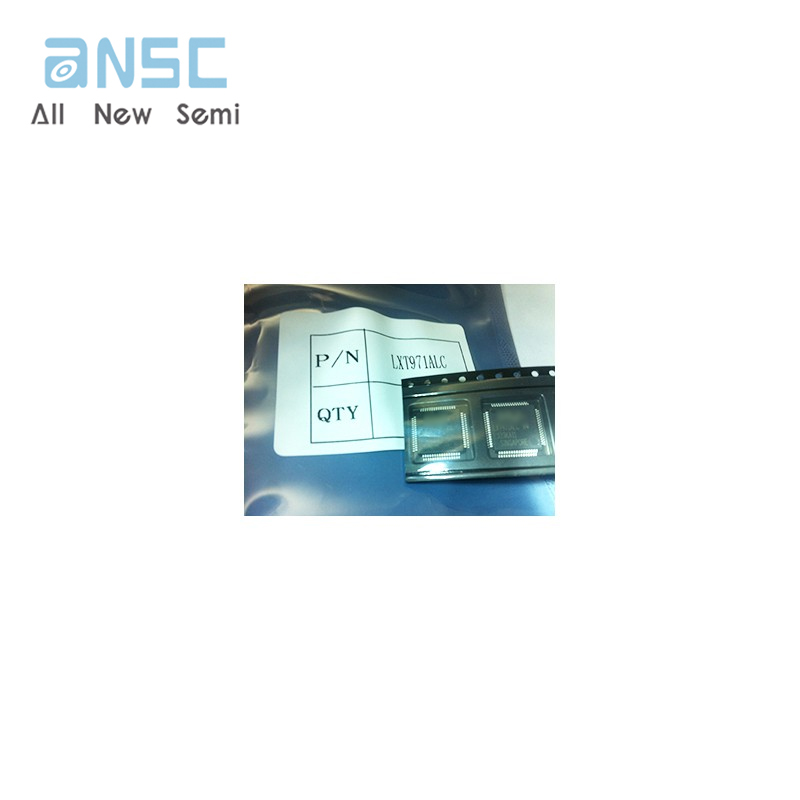

Actual image of the product

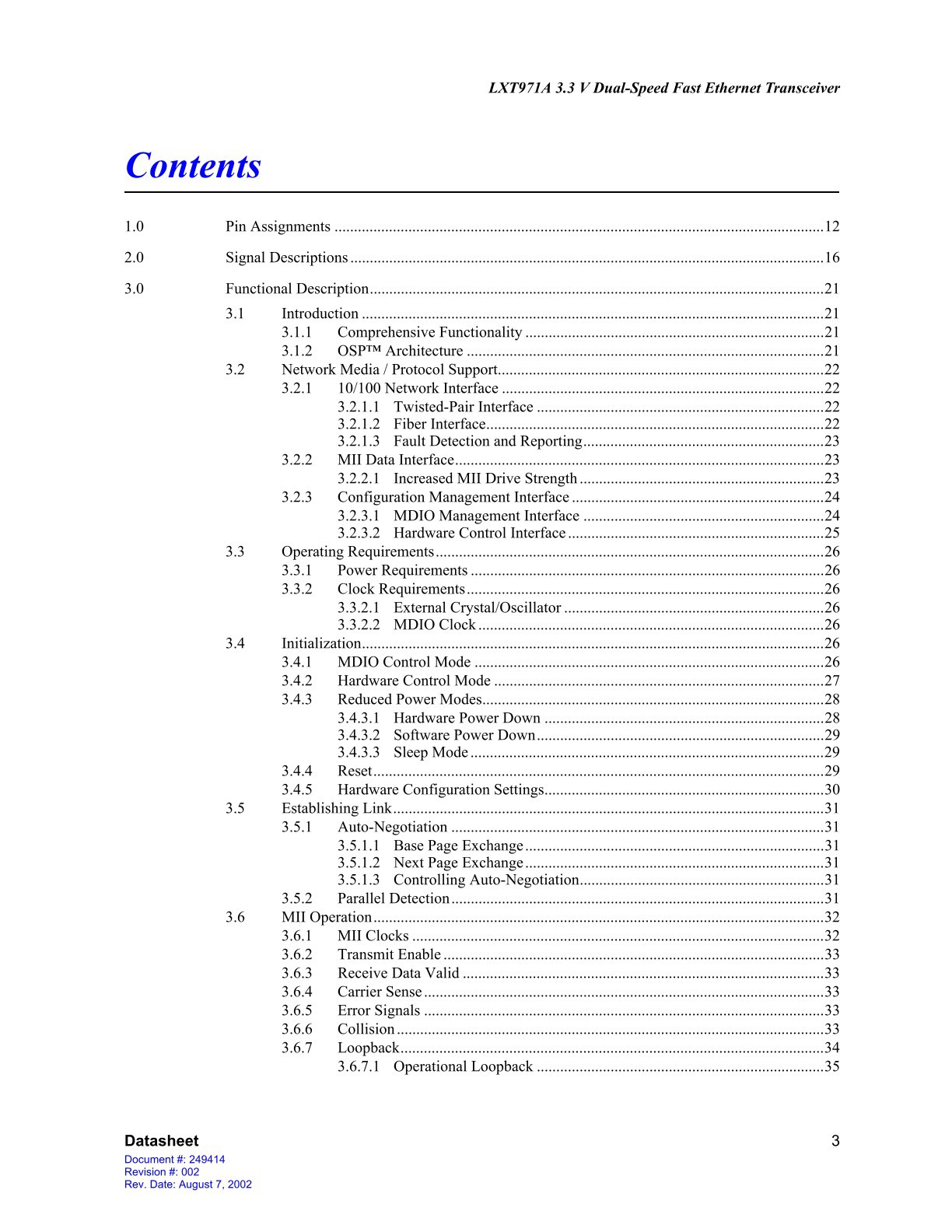

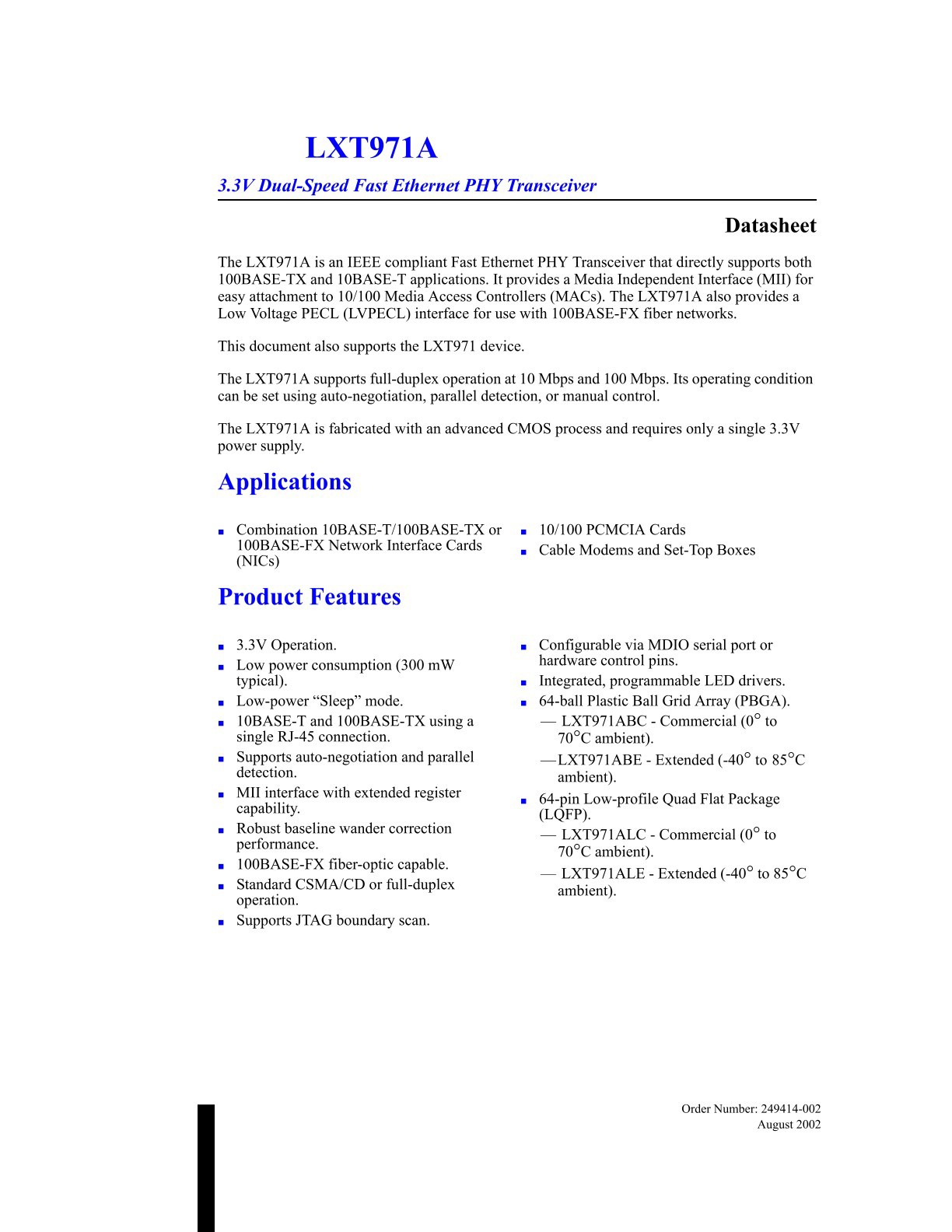

Product datasheet
For more information, please download
