Hot sale Original PALC22V10B-15PC IC Programmable Logic OT PLD 15ns PAL-Type CMOS PDIP24

Manufacturer Product Number

PALC22V10B-15PC

Description

PALC22V10B-15PC IC Programmable Logic OT PLD 15ns PAL-Type CMOS PDIP24

Package Condition

Tube

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type#	Description
ANSC PART#	ANSC - PALC22V10B-15PC
Part Package Code	DIP
Package Description	Dip, Dip24,.3
Pin Count	24
Additional Feature	10 Macrocells; 1 External Clock; Shared Input/Clock; Variable Product Terms
Architecture	Pal-Type
Clock Frequency-Max	50 Mhz
Length	30.099 Mm
Moisture Sensitivity Level	1
Number of Dedicated Inputs	11
Number of I/O Lines	10
Number of Inputs	22
Number of Outputs	10
Number of Product Terms	132
Number of Terminals	24
Operating Temperature-Max	75 °C
Operating Temperature-Min
Organization	11 Dedicated Inputs, 10 I/O
Output Function	Macrocell
Package Body Material	Plastic/Epoxy
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	Rectangular
Package Style	In-Line
Programmable Logic Type	Ot Pld
Propagation Delay	15 Ns
Qualification Status	Not Qualified
Seated Height-Max	4.826 Mm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	No
Technology	Cmos
Temperature Grade	Commercial Extended
Terminal Finish	Tin Lead
Terminal Form	Through-Hole
Terminal Pitch	2.54 Mm
Terminal Position	Dual
Width	7.62 Mm

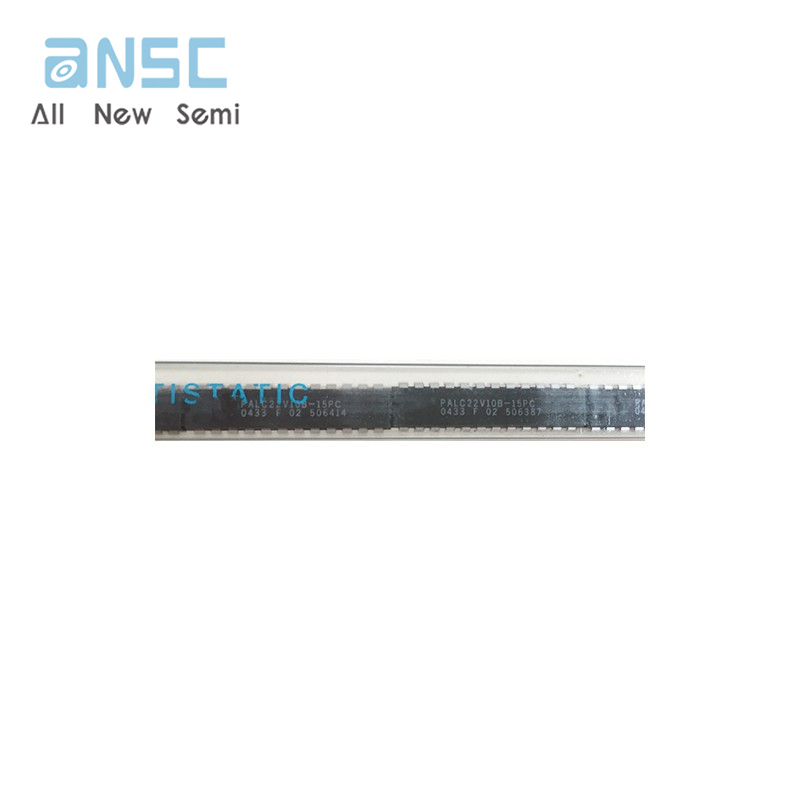

Actual image of the product

PALC22V10B-15PC

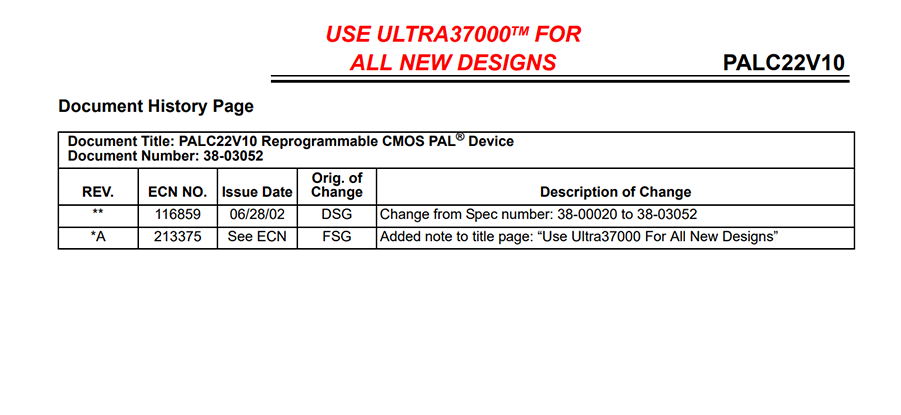

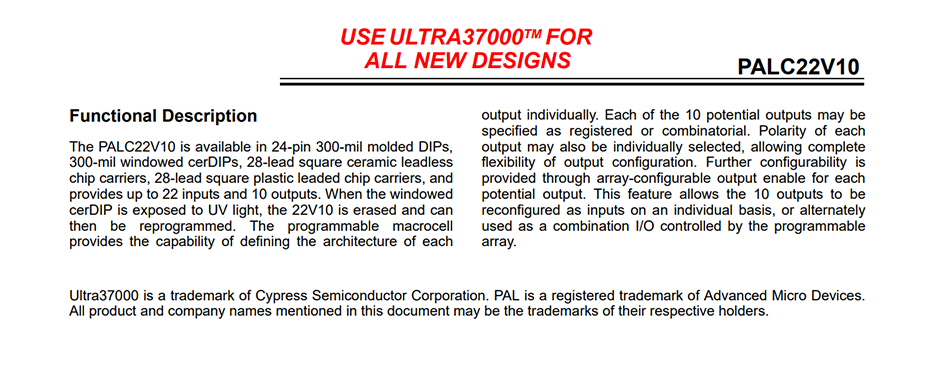

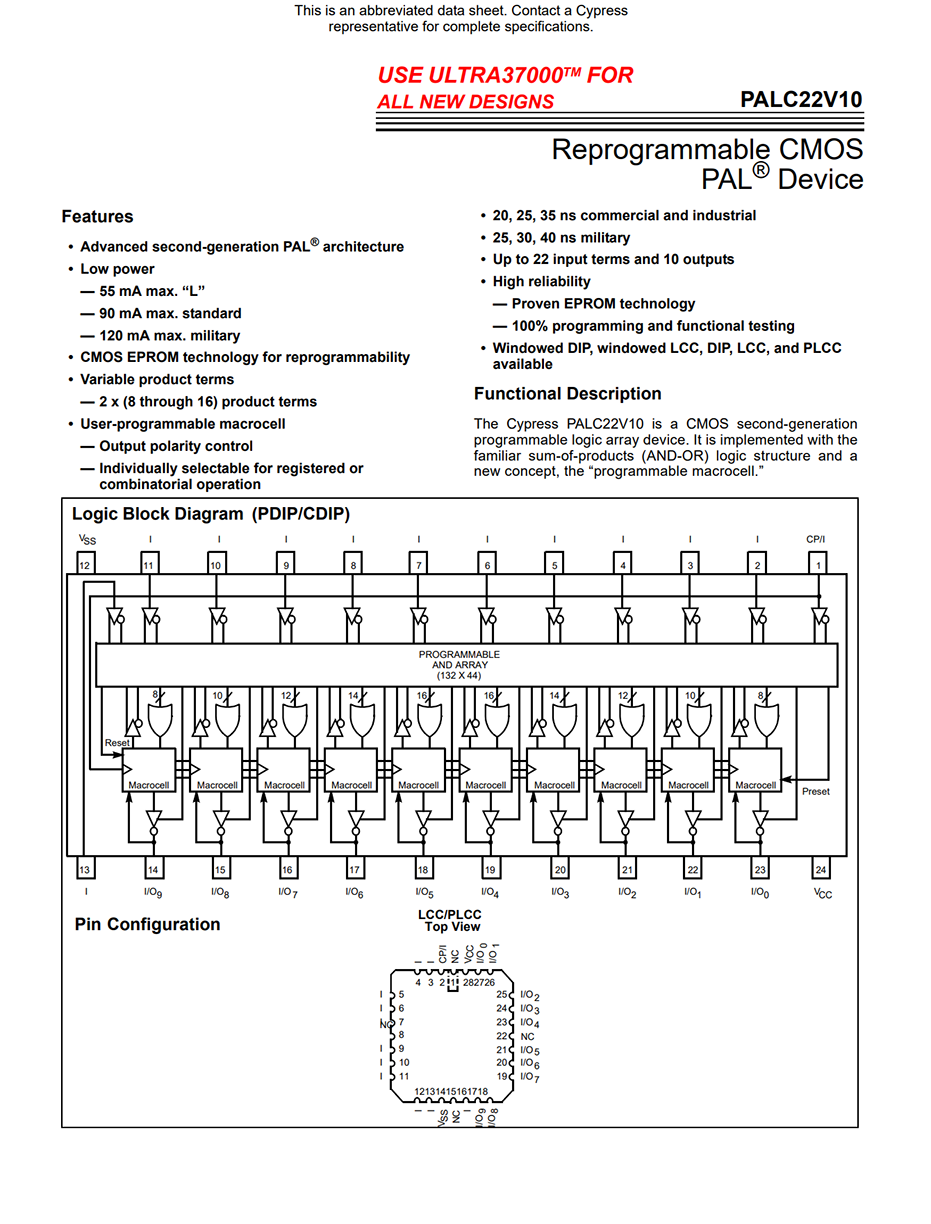

Product datasheet

For more information, please download
