You can contact me for the best price MC6850CP IC ASYNCHRONOUS COMMUNICATIONS INTERFACE ADAPTER Hot sale original
Manufacturer Product Number
MC6850CP
Description
MC6850CP IC ASYNCHRONOUS COMMUNICATIONS INTERFACE ADAPTER Hot sale original
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| MC6850CP Overview At DUAL, its terminals are located.SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is this gadget's uPs/uC/peripheral IC. MC6850CP Applications MC6850CP Microcontroller applications. Instrument control Instrument control Toys Robots Radio Television Heater/Fan Calculator Kindle Christmas lights |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - MC6850CP |
| Package Description | Dip |
| Reach Compliance Code | Unknown |
| Address Bus Width | 1 |
| Boundary Scan | No |
| Bus Compatibility | 6800 |
| Clock Frequency-Max | 1 Mhz |
| Communication Protocol | Async, Bit |
| Data Encoding/Decoding Method | Nrz |
| Data Transfer Rate-Max | 0.125 Mbps |
| External Data Bus Width | 8 |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| Length | 31.75 Mm |
| Low Power Mode | No |
| Number of DMA Channels | |
| Number of I/O Lines | |
| Number of Serial I/Os | 1 |
| Number of Terminals | 24 |
| On Chip Data RAM Width | |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | Plastic/Epoxy |
| Package Code | DIP |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Qualification Status | Not Qualified |
| RAM (words) | 0 |
| Seated Height-Max | 5.08 Mm |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | No |
| Technology | Nmos |
| Temperature Grade | Industrial |
| Terminal Finish | Tin Lead |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 15.24 Mm |
| uPs/uCs/Peripheral ICs Type | Serial Io/Communication Controller, Serial |

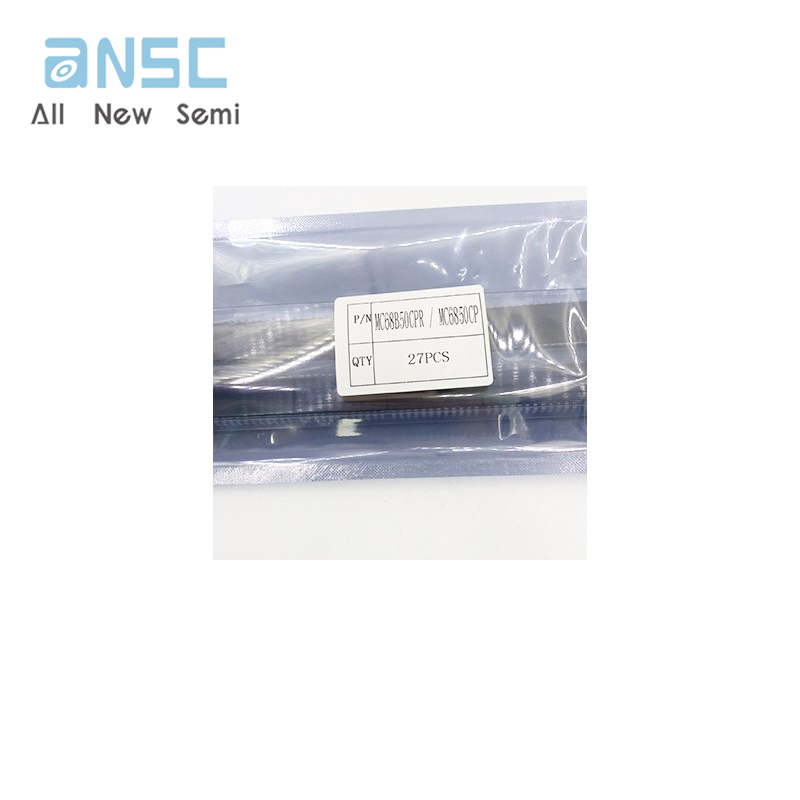

Actual image of the product

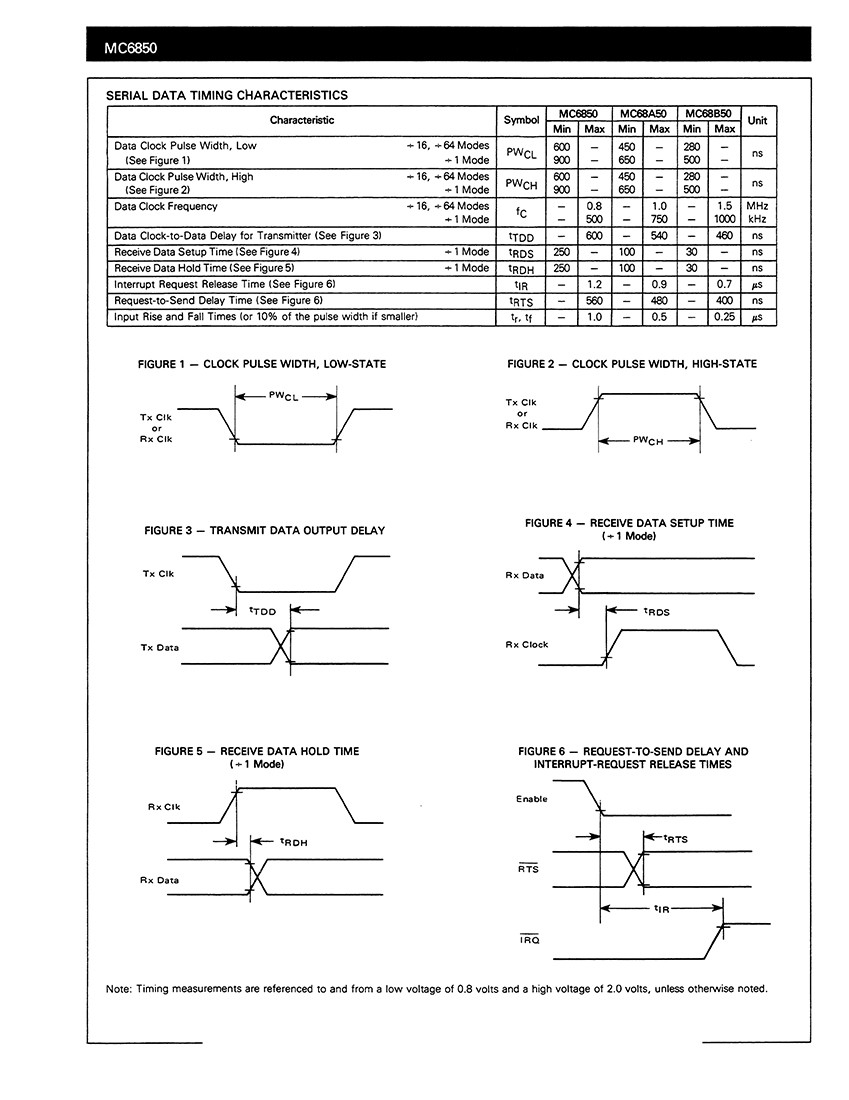

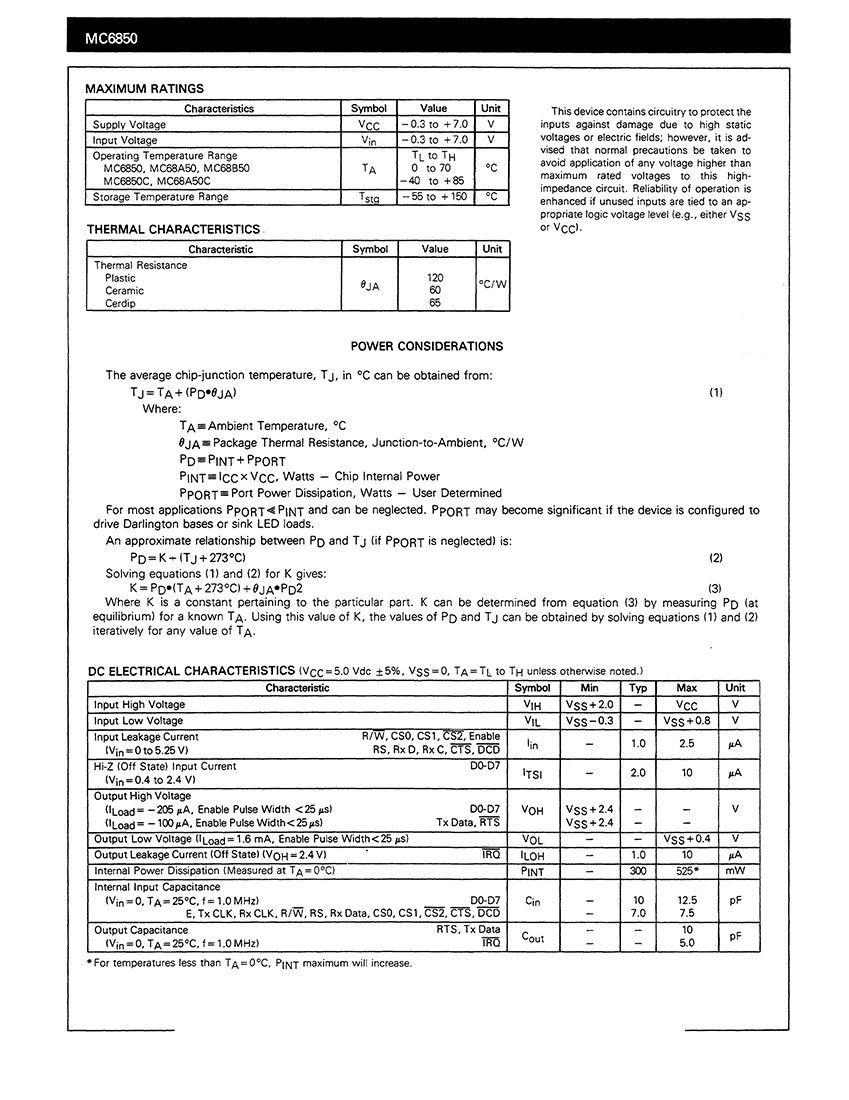

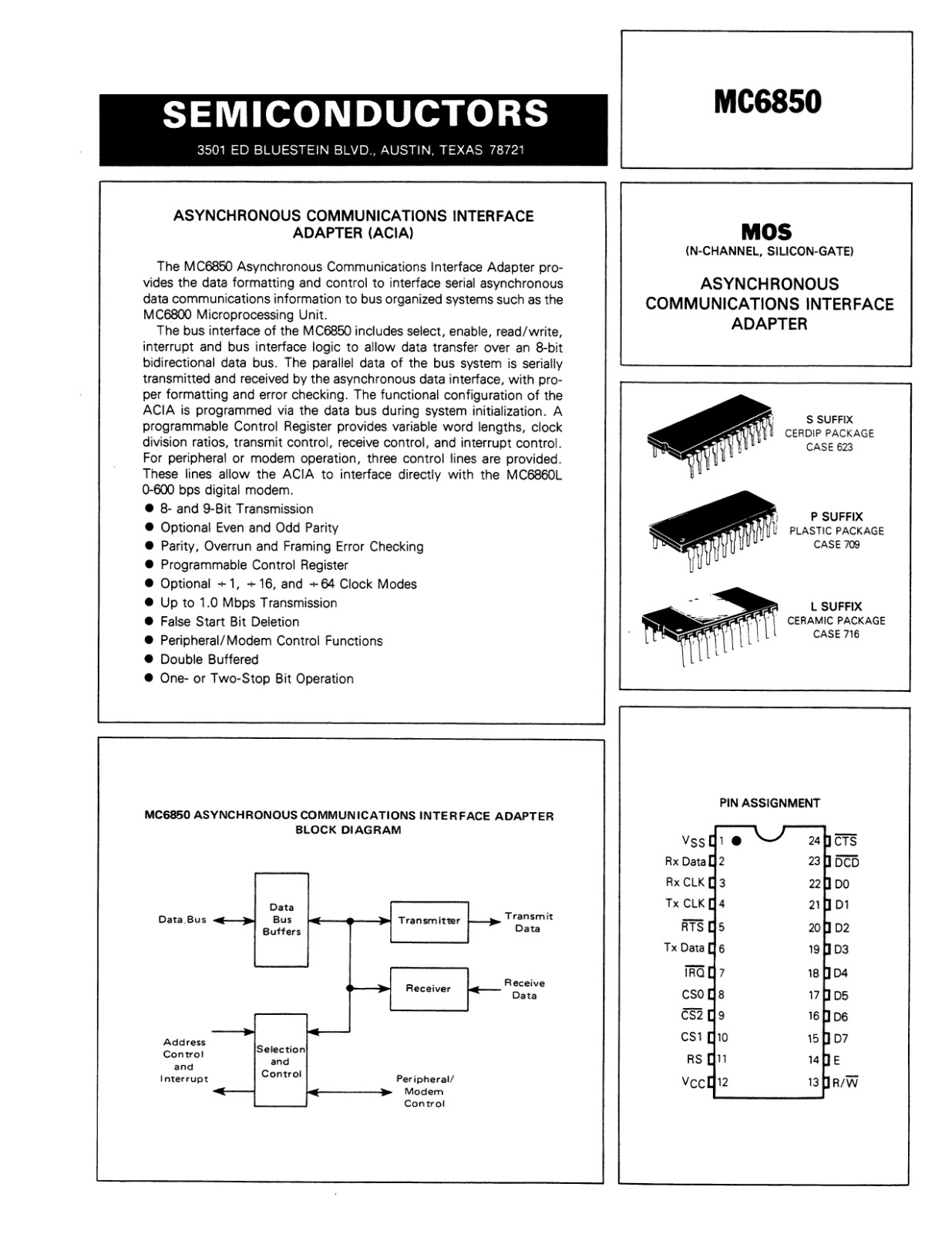

Product datasheet
