Hot sale Original PCF8574N IC I/O EXPANDER I2C 8B 16DIP I/O Expander 8 I2C 100 kHz 16-PDIP
Manufacturer
Manufacturer Product Number
PCF8574N
Description
PCF8574N IC I/O EXPANDER I2C 8B 16DIP I/O Expander 8 I2C 100 kHz 16-PDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The PCF8574 is a silicon CMOS circuit. It provides general purpose remote I/O expansion for most microcontroller families via the two-line bidirectional bus (I2C-bus). The device consists of an 8-bit quasi-bidirectional port and an I2C-bus interface. The PCF8574 has a low current consumption and includes latched outputs with high current drive capability for directly driving LEDs. It also possesses an interrupt line (INT) which can be connected to the interrupt logic of the microcontroller. By sending an interrupt signal on this line, the remote I/O can inform the microcontroller if there is incoming data on its ports without having to communicate via the I2C-bus. This means that the PCF8574 can remain a simple slave device. The PCF8574 and PCF8574A versions differ only in their slave address as shown in Fig.10. FEATURES • Operating supply voltage 2.5 to 6 V • Low standby current consumption of 10 µA maximum • I2C-bus to parallel port expander • Open-drain interrupt output • 8-bit remote I/O port for the I2C-bus • Compatible with most microcontrollers • Latched outputs with high current drive capability for directly driving LEDs • Address by 3 hardware address pins for use of up to 8 devices (up to 16 with PCF8574A) • DIP16, or space-saving SO16 or SSOP20 packages. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - PCF8574N |
| Category | Integrated Circuits (ICs) |
| Interface | |
| I/O Expanders | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Number of I/O | 8 |
| Interface | I2C |
| Interrupt Output | Yes |
| Features | POR |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 1mA, 25mA |
| Clock Frequency | 100 kHz |
| Voltage - Supply | 2.5V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | PCF8574 |

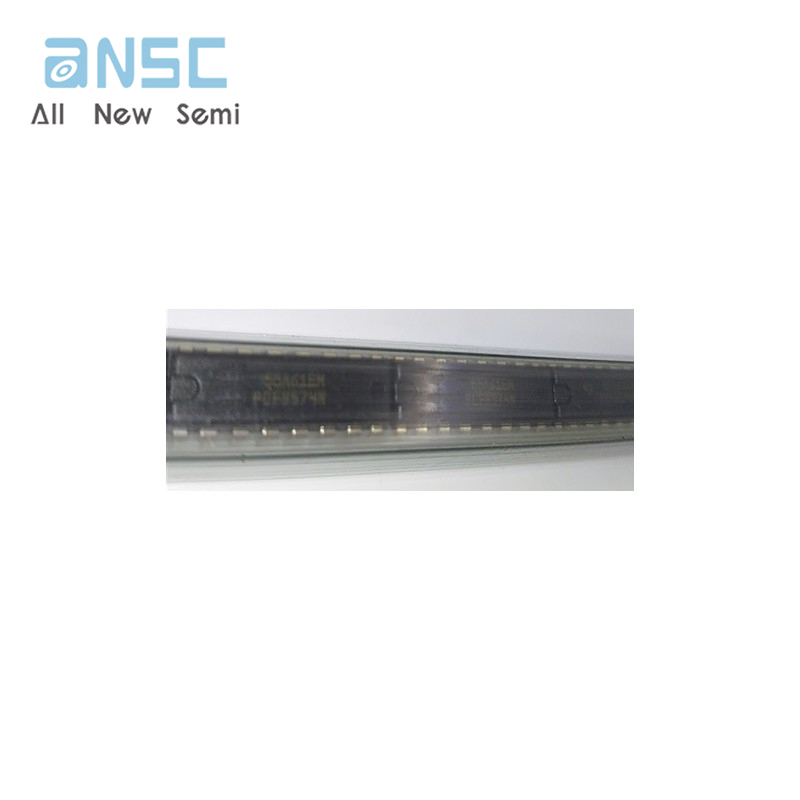

Actual image of the product

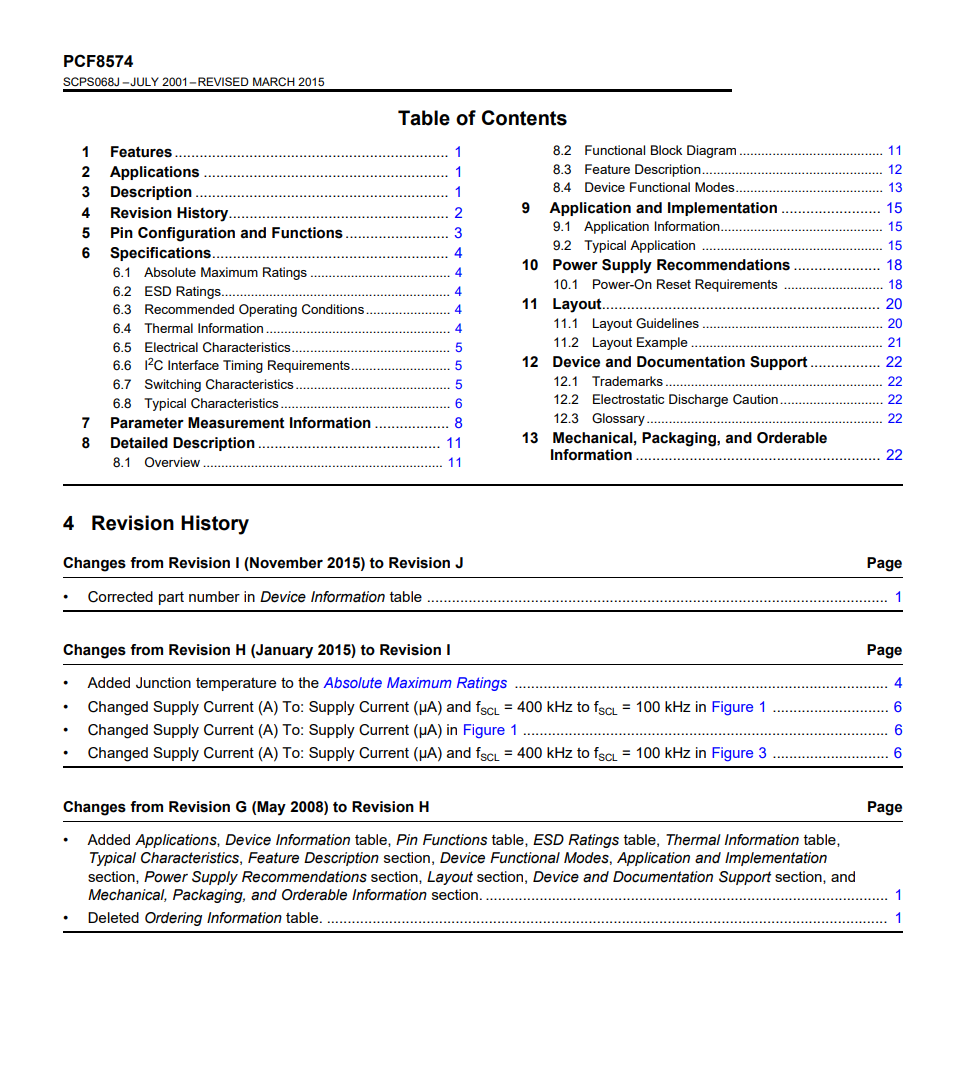

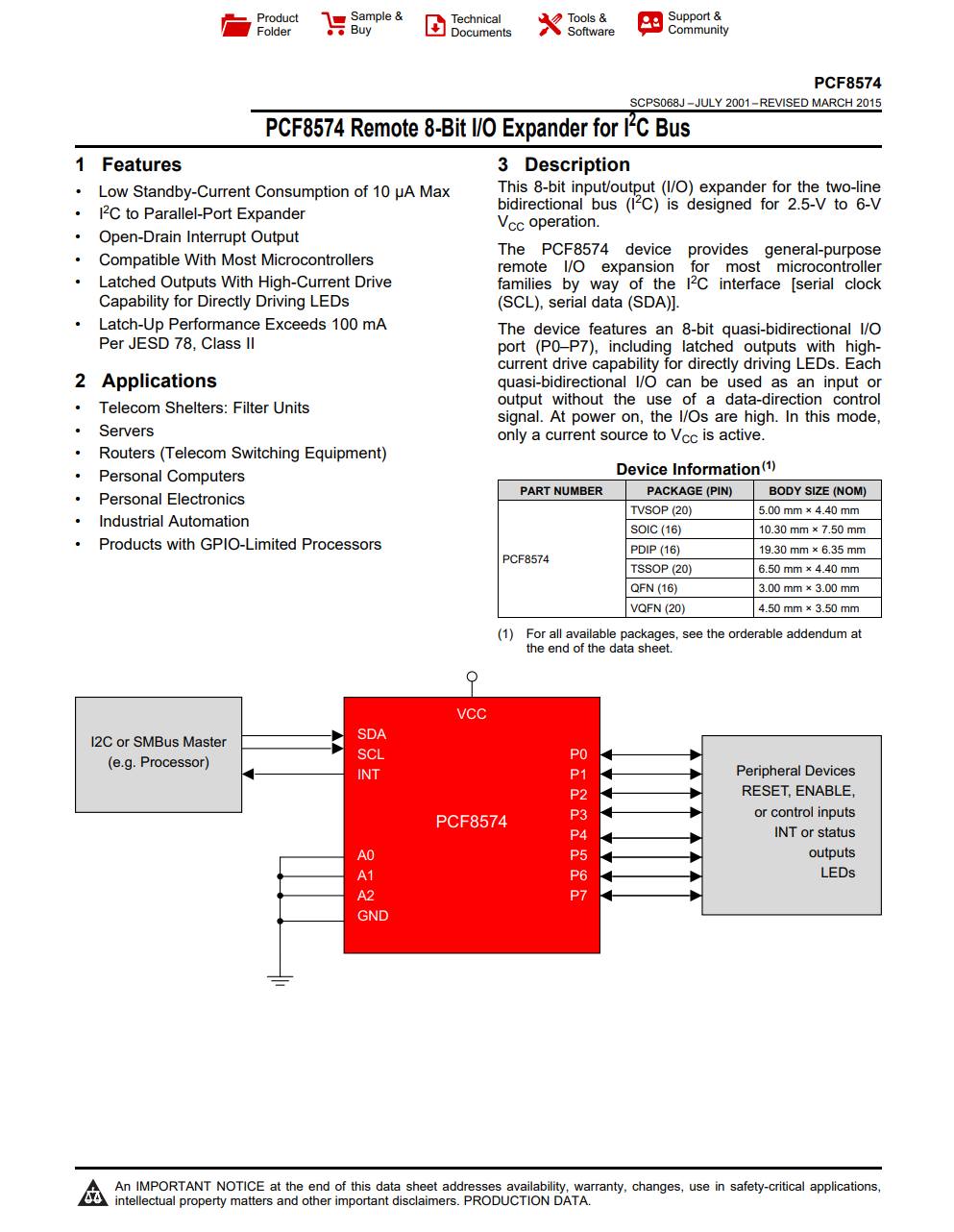

Product datasheet
