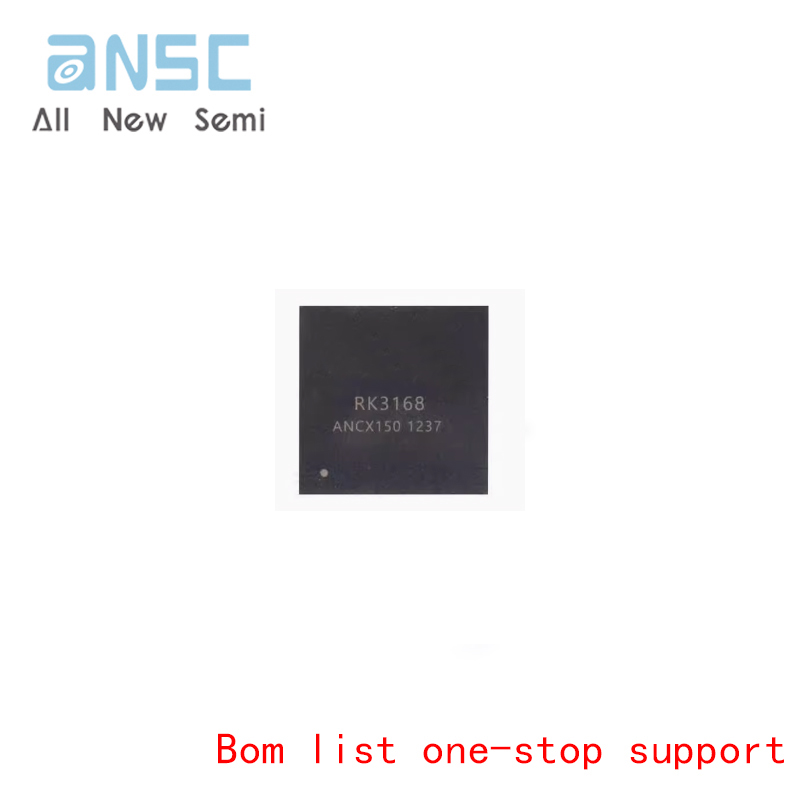

Hot selling original RK3168 low power, high performance processor for mobile phones, personal mobile internet device BGA
RK3168 low power, high performance processor for mobile phones, personal mobile internet device BGA
Product Descriptions
RK3168 is a low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates dual-core Cortex-A9 with separate NEON and FPU coprocessor.
Many embedded powerful hardware engines provide optimized performance for high-end application. RK3168 supports almost full-format video decoder by 1080p@60fps, also support H.264 encoder by 1080p@30fps, high-quality JPEG encoder/decoder, special image
preprocessor and postprocessor.
Embedded 3D GPU makes RK3168 completely compatible with OpenGL ES2.0 and 1.1, OpenVG 1.1. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.
This document will provide guideline on how to use RK3168 correctly and efficiently.
Product Features
The features listed below which may or may not be present in actual product,may be subject to the third party licensing requirements. Please contact Rockchip for actual product feature configurations and licensing requirements.
1.2.1 MicroProcessor Unit
-
Dual-core ARM Cortex-A9 MPCore processor , a high-performance, low-power and cached application processor
-
Full implementation of the ARM architecture v7-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation
-
Superscalar, variable length, out-of-order pipeline with dynamic branch prediction, 8-stage pipeline
-
Include VFPv3 hardware to support single and double-precision add, subtract, divide, multiply and accumulate, and square root operations
-
SCU ensures memory coherency between the two MPUs
-
Integrated timer and watchdog timer per MPU
-
Integrated 32KB L1 instruction cache , 32KB L1 data cache with 4-way set associative
-
256KB unified L2 Cache
-
TrustZone technology support
-
Full CoreSight™ debug solution
-
Debug and trace visibility of whole systems
-
ETM trace support
-
Invasive and non-invasive debug
-
One separate power domain for secondary core to support internal power switch and externally turn on/off based on different application scenario
-
PD_A9_1: 2nd Cortex-A9 + Neon + FPU + L1 I/D Cache
-
One isolated voltage domain to support DVFS
Actual product photos
