Hot selling original RKnanoC low-cost, low-power, high-efficiency digital multimedia chip QFP-64 Quality Online

Manufacturer Product Number
RKnanoC
Description

RKnanoC low-cost, low-power, high-efficiency digital multimedia chip QFP-64

Package Condition
QFP-64
Datasheet

Product Descriptions

RKnanoC is a low-cost, low-power, high-efficiency digital multimedia chip which is based on ARM low power processor architecture with hardware accelerator. It is designed for portable audio product applications such as MP3 player etc.

RKnanoC can support decode for various types of audio standards such as MP3/WMA /OGG/FLAG/AAC etc. Because of build-in audio hardware accelerator, RKnanoC can achieve audio decode at a very low system frequency, this can save chip power consumption. By providing a complete set of peripheral interface, RKnanoC can support very flexible applications, including NAND Flash, LCDC, USB OTG, SD/MMC, I2C, I2S, SPI, UART, PWM etc.

Product Features

System Operation

 ARM processor

 AHB-lite bus connection

 Selectable booting method

 Boot from NAND FLASH

 Boot from eMMC flash

 Boot from SPI NOR flash

Memory Organization

 Internal 224KB SRAM for IRAM and DRAM

 Embedded 64KB ROM for decoder and system code

Processor

 ARM Cortex-M3 low power core

 A Thumb instruction set subset

 Banked Stack Pointer (SP) only

 Hardware divide instructions, SDIV and UDIV (Thumb 32-bit instructions)

 Handler and Thread modes

 Thumb and Debug states

 Interruptible-continued LDM/STM, PUSH/POP for low interrupt latency

 Automatic processor state saving and restoration for low latency Interrupt Service Routine (ISR) entry and exit

 Nested Vectored Interrupt Controller (NVIC)

 26 external interrupts.

 8-level priority of interrupt

Clock & Power Management

 One on-chip PLL, system main clock can be PLL clock or OSC input clock

 Support different main clock and internal AHB Bus clock ratio: 1:1, 1:2, 1:3, 1:4, up to 1:8 modes

 Support different AHB Bus clock and ARM system tick clock ratio: 1:2, 1:3, 1:4, up to 1:8 modes

 Support different AHB Bus clock and ARM APB Bus clock ratio: 1:1, 1:2, 1:3 and 1:4 mode

 100MHz Max frequency for ARM Core

 Clock gating for ARM Cortex-M3 sleep mode and other peripherals

 Support ARM clock bypass/divider 2/divider 4 path for 24MHz arm clock

Hardware Accelerator for MP3 decode

 MP3 imdct36 calculation module

 MP3 subband synthesize module

Memory Interface

 External-Memory controller

 Support 4 chip selects for NAND flash

 Support 24/40/60bits ECC error correction

 Support 8bits data-width to external NAND

 SD/MMC controller

 SD/MMC SPI mode/1bit mode/4bit mode

 Support Multi Media Card Specification Version 4.41

 Support SD Memory Card Specification Version 3.0

 Support Secure Digital I/O(SDIO Version3.0)

 Cards Clock Rate up to PCLK, Re-scaling the SD/MMC clock (PCLK) with the 8-bits pre-scale register in SCU block

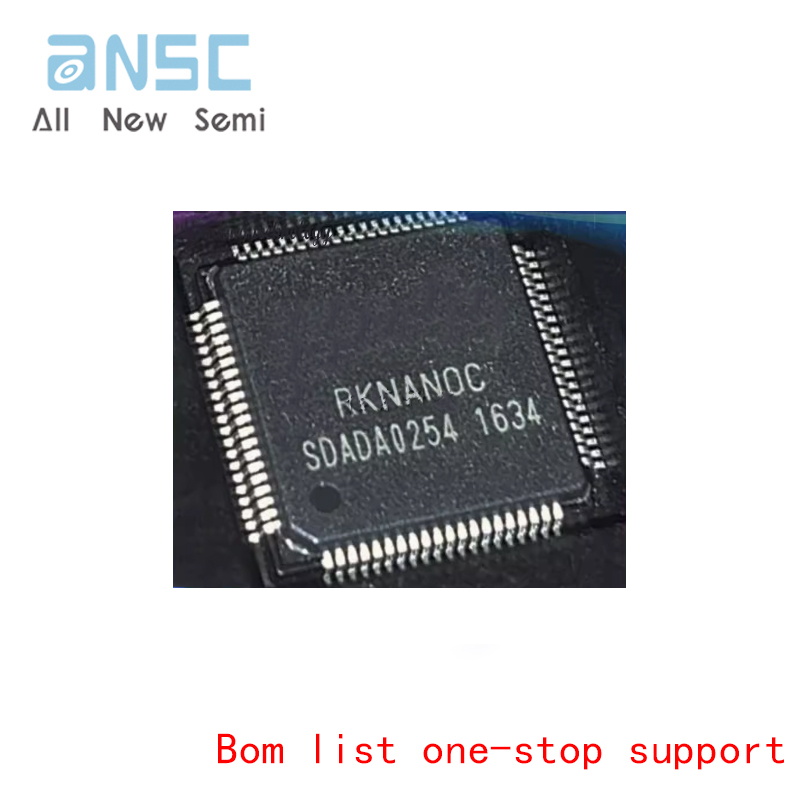

Actual product photos

RKNANOC

Product Data Manual:

搜狗高速浏览器截图20240823104839

搜狗高速浏览器截图20240823104844

搜狗高速浏览器截图20240823104849

​For more product information, please download the PDF
