Product Introduction

P2723T is a fast charging Physical Layer IC dedicated for USB ports, which supports 11 kinds of fast charging standards, including USB PD2.0/PD3.0 /PPS (Programmable Power Supply), HVDCP QC2.0/QC3.0 (Quick Charge), AFC (Samsung® Adaptive Fast Charge)，SCP (Hisilicon® Super Charge Protocol ) and FCP (Hisilicon® Fast Charge Protocol), MTK PE+ 1.1&2.0，Apple 2.4A, Samsung 2.0A and BC1.2.

IP2723T support automatically detecting the connected device’s type and switching standards type to responding for fast charging requirements.

Products Features

 Support charging standards including :

 Support QC4/QC4+

- Compatible with QC2.0/QC3.0

- Support Class B

 USB PD2.0/PD3.0/PPS DFP

 SCP, FCP

 AFC

 MTK PE+ 1.1&2.0

 Apple 2.4A, Samsung 2.0A and BC1.2

 Support USB PD2.0/PD3.0/PPS

 USB PD3.0 with PPS Certificate Number：

TID:3135

 Auto detect USB PD device plug in or out

 Configurable SRC_CAP package broadcast

 Support Samsung® AFC

 Support Huawei® SCP (option)

 Support Huawei® FCP

 Support Apple 2.4A: DP=2.7V, DM=2.7V

 Support Samsung 2.0A: DP=1.2V, DM=1.2V

 Support BC1.2: DP short DM automatically

 Default 5 V mode operation

 Support NTC protection

 Support 100KHz~400KHz IIC interface

 Support DP,DM,CC1,CC2 overvoltage protection

 Support DP,DM weak short to GND protection

 VIN working voltage: 3.3V~30V

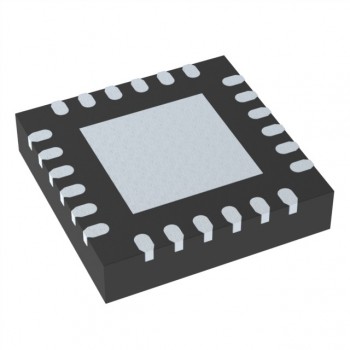

 Package: QFN24

Products Applications

​

 USB power output ports for AC adapters, Power Banka, Car chargers

 Battery chargers for smart phones, tablets,netbooks, digital cameras, and Bluetooth accessories

Specifications
