Product Descriptions

The W78IRD2 is an 8-bit microcontroller which is pin- and instruction-set-compatible with the standard 80C52. The W78IRD2 contains a 64-KB Flash EPROM whose contents may be updated in-system by a loader program stored in an auxiliary, 4-KB Flash EPROM. Once the contents are confirmed, it can be protected for security.

The W78IRD2 also contains 256 bytes of on-chip RAM; 1 KB of auxiliary RAM; four 8-bit, bi-directional and bit-addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; and a serial port. These peripherals are all supported by nine interrupt sources with 4 levels of priority.

The W78IRD2 has two power-reduction modes: idle mode and power-down mode, both of which are software-selectable. Idle mode turns off the processor clock but allows peripherals to continue operating, while power-down mode stops the crystal oscillator for minimum power consumption. Power-down mode can be activated at any time and in any state without affecting the processor.

Product Features

• 8-bit CMOS microcontroller

• Pin-compatible with standard 80C52

• Instruction-set compatible with 80C52

• Four 8-bit I/O ports; Port 0 has internal pull-up resisters enabled by software

• One extra 4-bit I/O port with interrupt and chip-select functions

• Three 16-bit timers

• Programmable clock out

• Programmable Counter Array (PCA) with PWM, Capture, Compare and Watchdog functions

• 9 interrupt sources with 4 levels of priority

• Full-duplex serial port with framing-error detection and automatic address recognition

• 64-KB, in-system-programmable, Flash EPROM (AP Flash EPRAOM)

• 4-KB auxiliary Flash EPROM for loader program (LD Flash EPROM)

• 256-byte on-chip RAM

• 1-KB auxiliary RAM, software-selectable

• Software Reset

• 12 clocks per machine cycle operation (default). Speed up to 20 MHz.

• 6 clocks per machine cycle operation set by the writer. Speed up to 12 MHz.

• 2 DPTR registers

• Low EMI (inhibit ALE)

• Built-in power management with idle mode and power down mode

• Code protection

• Packages:

— Lead Free (RoHS) DIP 40: W78IRD2A25DL

— Lead Free (RoHS) PLCC 44: W78IRD2A25PL

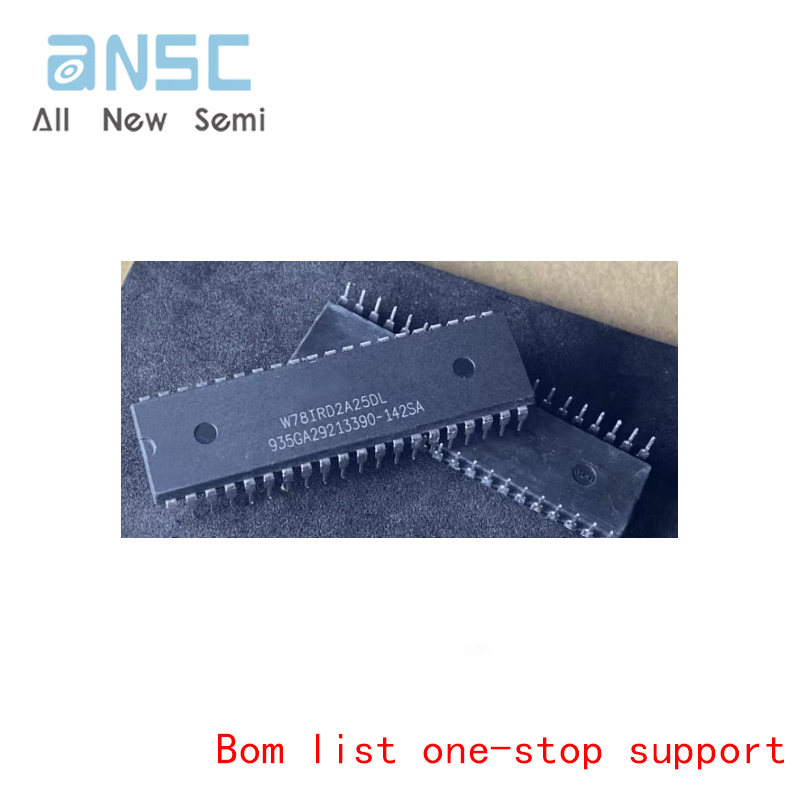

Actual product photos
