Hot sale Original AD5570ARSZ IC DAC 16 Bit Digital to Analog Converters (DAC) Voltage - Buffered SPI, DSP External 16-SSOP

Product Description

The AD5570ARSZ is a 16-bit, dual-supply, voltage-output digital-to-analog converter (DAC) from Analog Devices Inc. It features an R-2R architecture and operates at a conversion rate of 83,000 samples per second (ksps). The DAC is designed for use in a variety of applications, including data acquisition, instrumentation, and industrial control systems.

Product Features

· 16-bit resolution with ±0.6 LSB and ±0.3 LSB INL/DNL

· Dual-supply voltage operation with a range of ±11.4V to ±16.5V

· Voltage-output buffered with a maximum output voltage of 28V

· SPI and DSP interfaces for easy integration into systems

· Surface-mount package with a 16-pin SSOP (0.209, 5.30mm width)

· Operating temperature range of -40°C to 85°C

· Low power dissipation of 165mW

Product Applications

 Primary Applications:

· Data acquisition systems

· Instrumentation and measurement systems

· Industrial control systems

· Medical devices

Secondary Applications:

· Audio and video processing

· Telecommunications

· Automotive systems

Embedded Modules

· Various data acquisition and instrumentation systems

· Industrial control systems

· Medical devices

Product Description

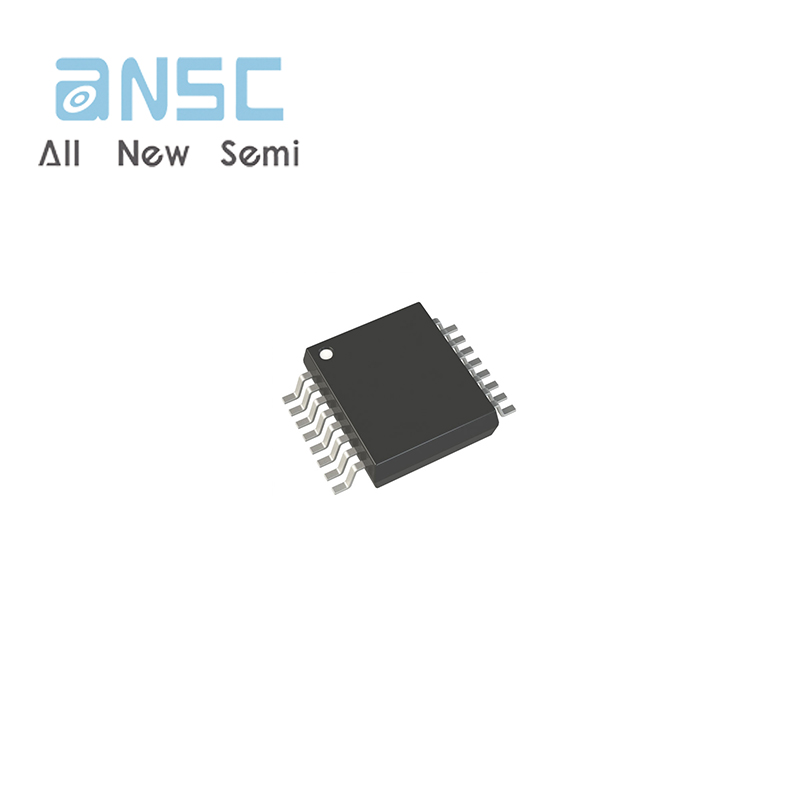

Actual image of the product

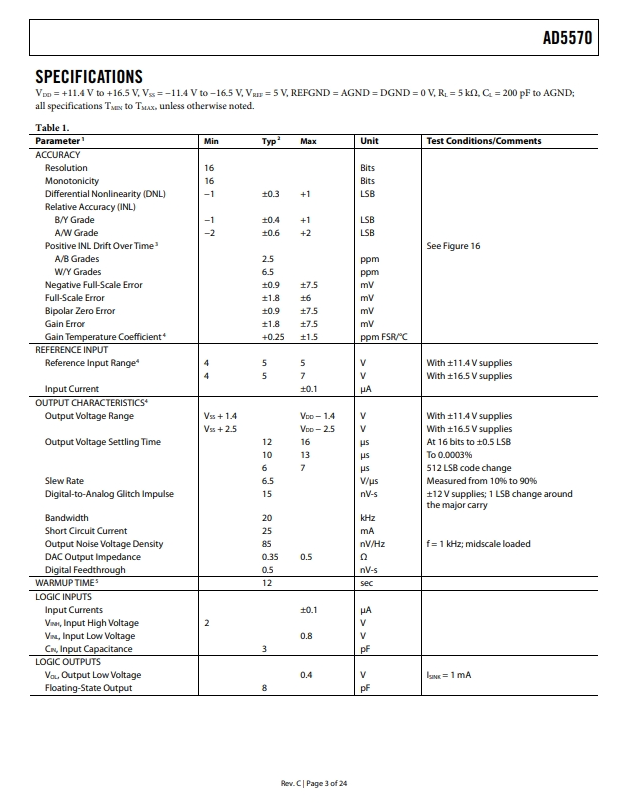

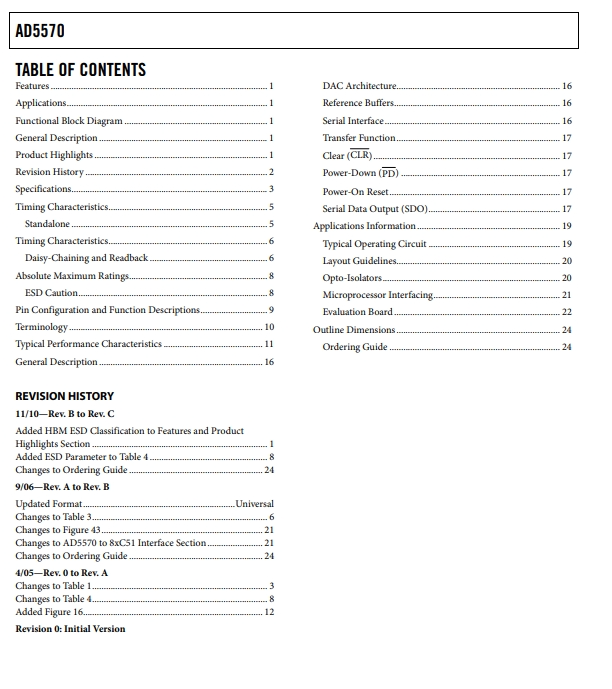

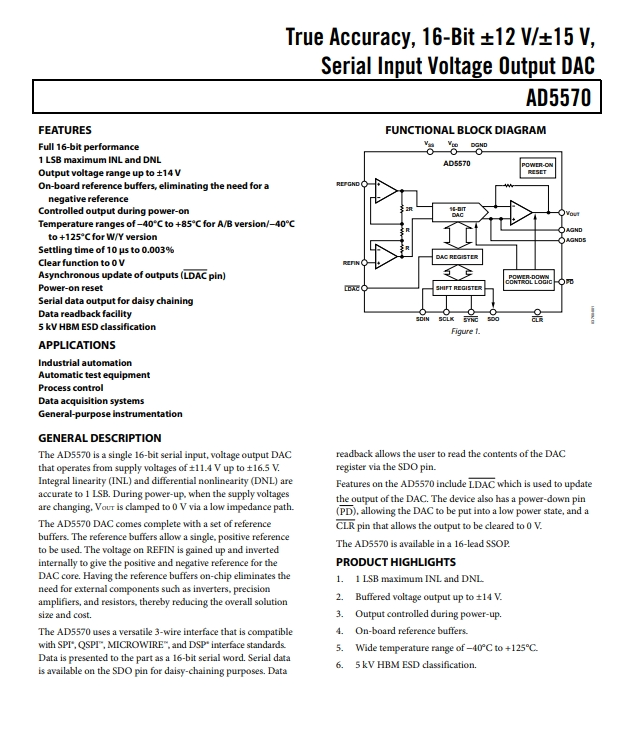

Product datasheet

For more information, please download
