You can contact me for the best price TC4S584F LF IC Logic Gate and Inverter IC 1 Channel Schmitt Trigger SMV Hot sale Original
Manufacturer
Manufacturer Product Number
TC4S584F,LF
Description
Original TC4S584F LF IC Logic Gates and Inverter IC 1 Channel Schmitt Trigger SMV Surface Mount Hot sale Original
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| C4S584F,LF Overview As the part is packed in SC-74A, SOT-753, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Cut Tape (CT). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 3V~18V. Operating temperature extended to -40°C~85°C. It is mounted in position Surface Mount. TC4S is its series number. Total terminations are 5. Users will benefit significantly from 1 functions in this part. Trying searching with 4S584 will yield device variants. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Inputs for the part are set to 1. Quiescent parts carry 4μA current. There are 1 circuits in this device. The device must be supplied with a minimum voltage of 3V. TC4S584F,LF FeaturesInverter Logic Type Operating Temperature: -40°C~85°C Quiescent Current: 4μA TC4S584F,LF Applications TC4S584F,LF Gates and Inverters applications. DVDVCD Computer Television Washing machine Range hood Refrigerator VCR Massager Fan |
Product Description
| Type | Description |
| ANSC PART# | ANSC - TC4S584F,LF |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Original |
| Series | TC4S |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.1V ~ 3.3V |
| Input Logic Level - High | 3.35V ~ 10.6V |
| Max Propagation Delay @ V, Max CL | 120ns @ 15V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMV |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | TC4S584 |

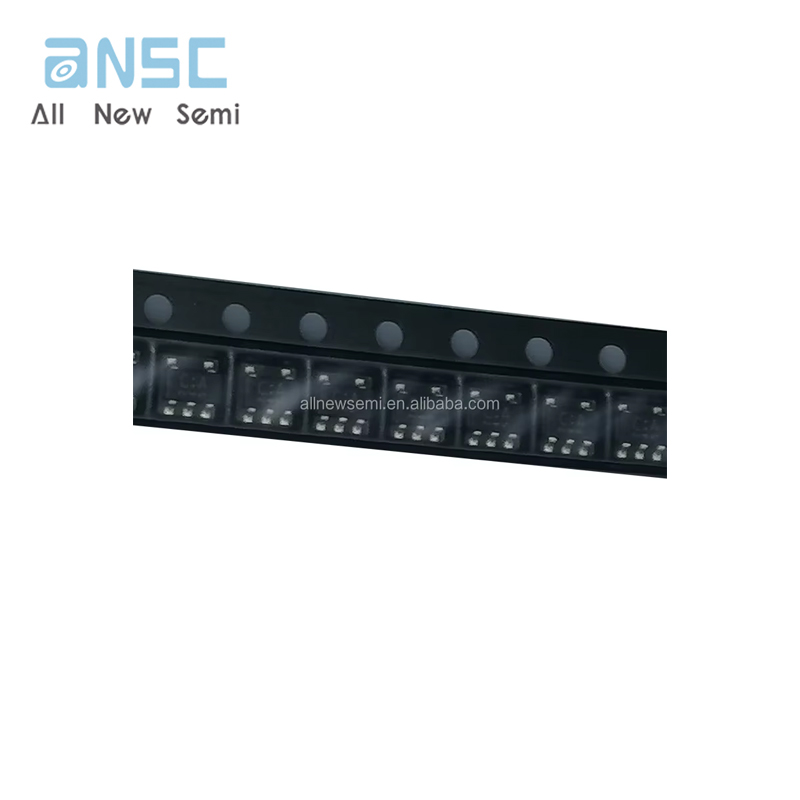

Actual image of the product

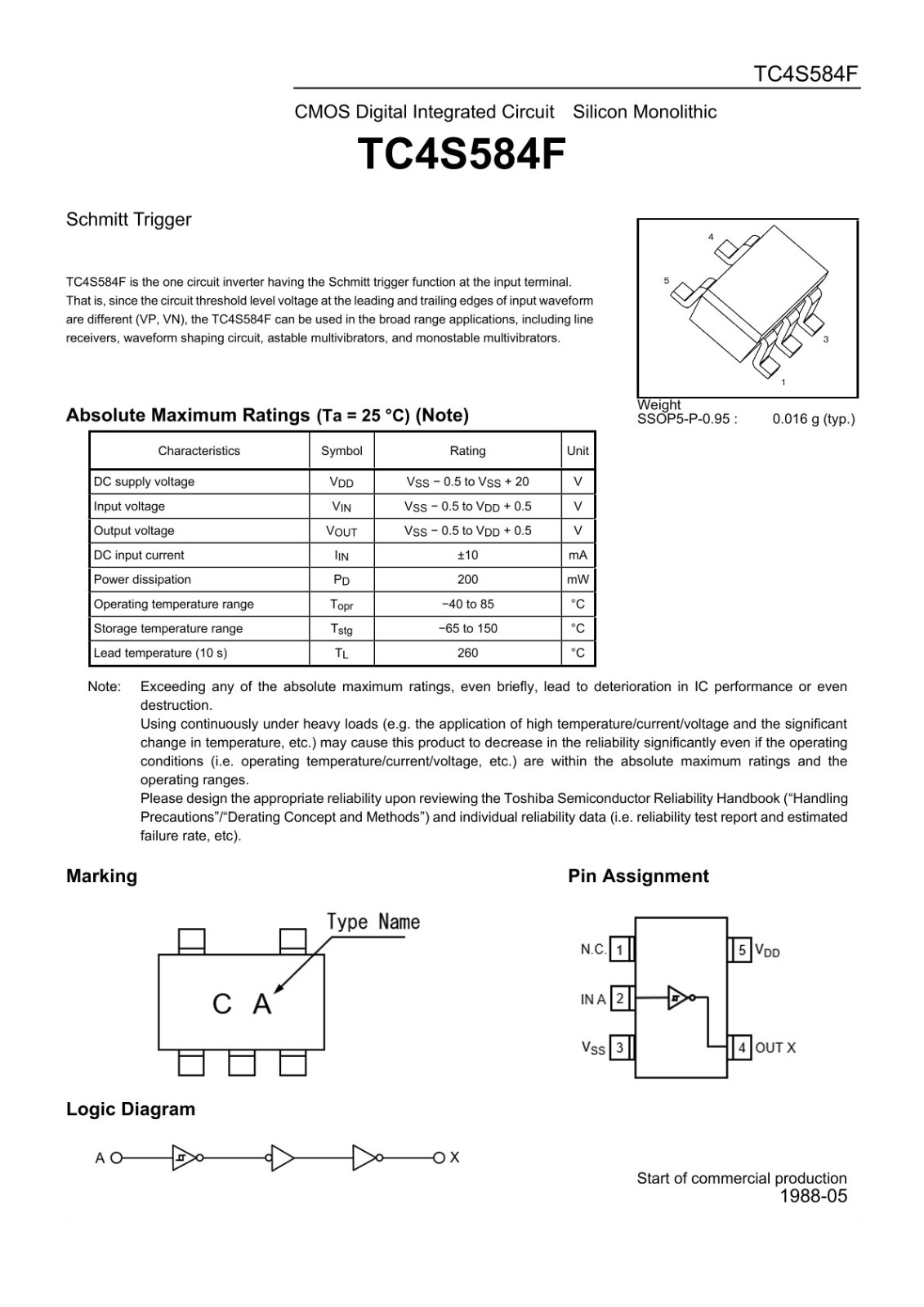

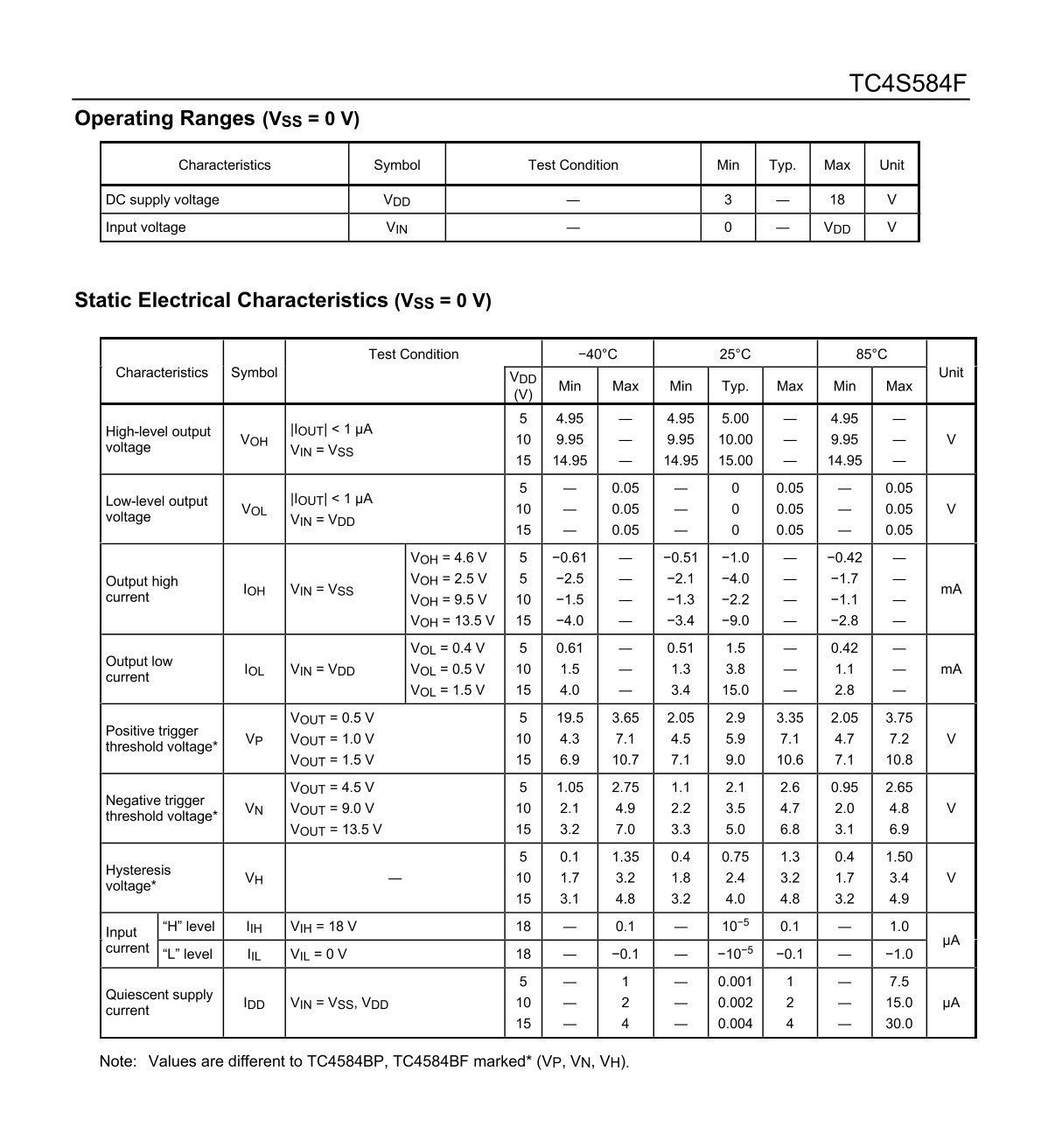

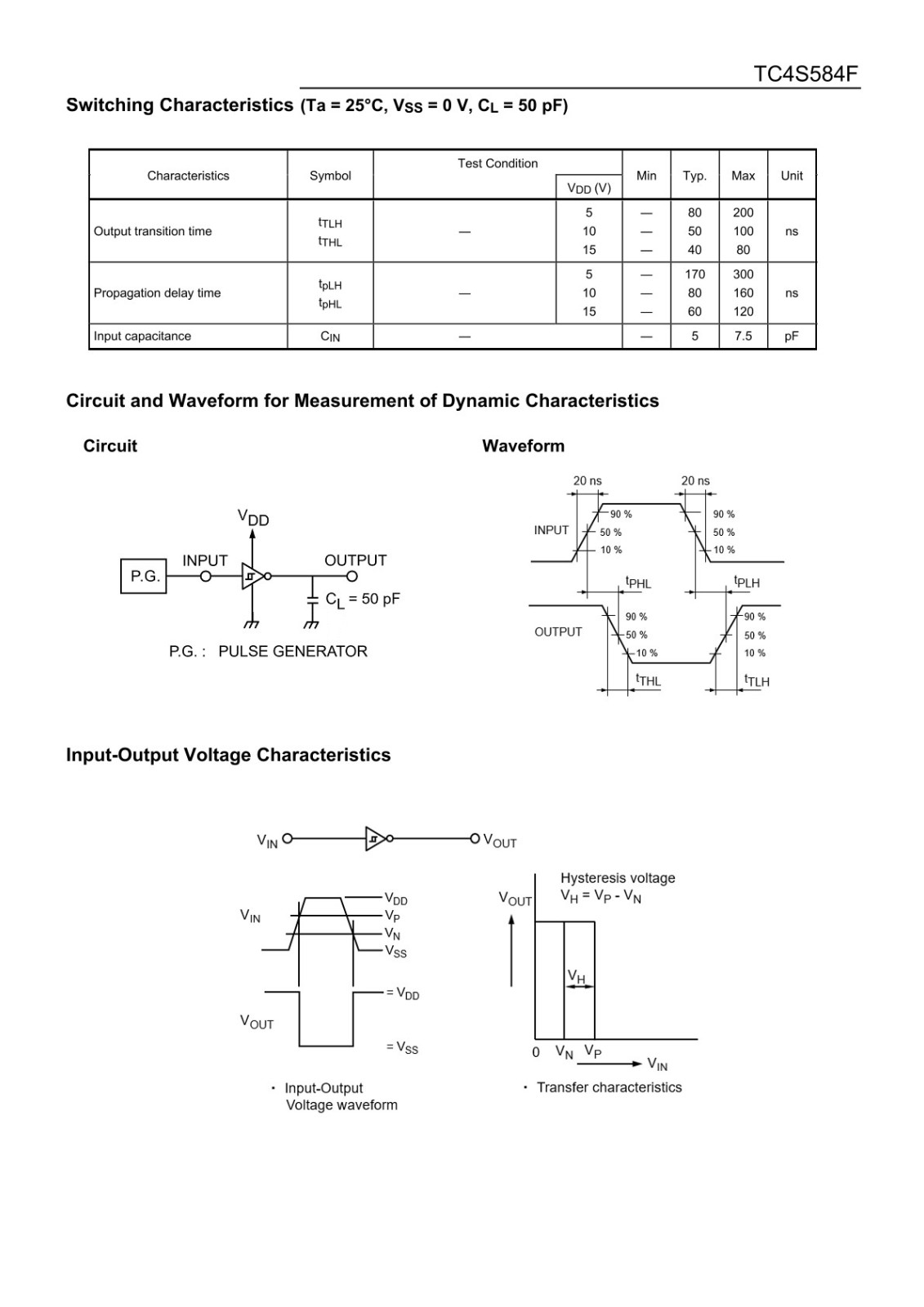

Product datasheet
For more information, please download
