Hot-selling and scarce DM74LS244WM Octal 3-STATE Buffer/Line Driver/Line Receiver sop20 spot stock
Manufacturer Product Number
DM74LS244WM
Description
DM74LS244WM Octal 3-STATE Buffer/Line Driver/Line Receiver sop20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/ drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fanout outputs and can be used to drive terminated lines down to 133Ω.
Product Features
■ 3-STATE outputs drive bus lines directly
■ PNP inputs reduce DC loading on bus lines
■ Hysteresis at data inputs improves noise margins
■ Typical IOL (sink current) 24 mA
■ Typical IOH (source current) −15 mA
■ Typical propagation delay times
Inverting 10.5 ns
Noninverting 12 ns
■ Typical enable/disable time 18 ns
■ Typical power dissipation (enabled)
Inverting 130 mW
Noninverting 135 mW
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74LS244WM |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74LS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 15mA, 24mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74LS244 |

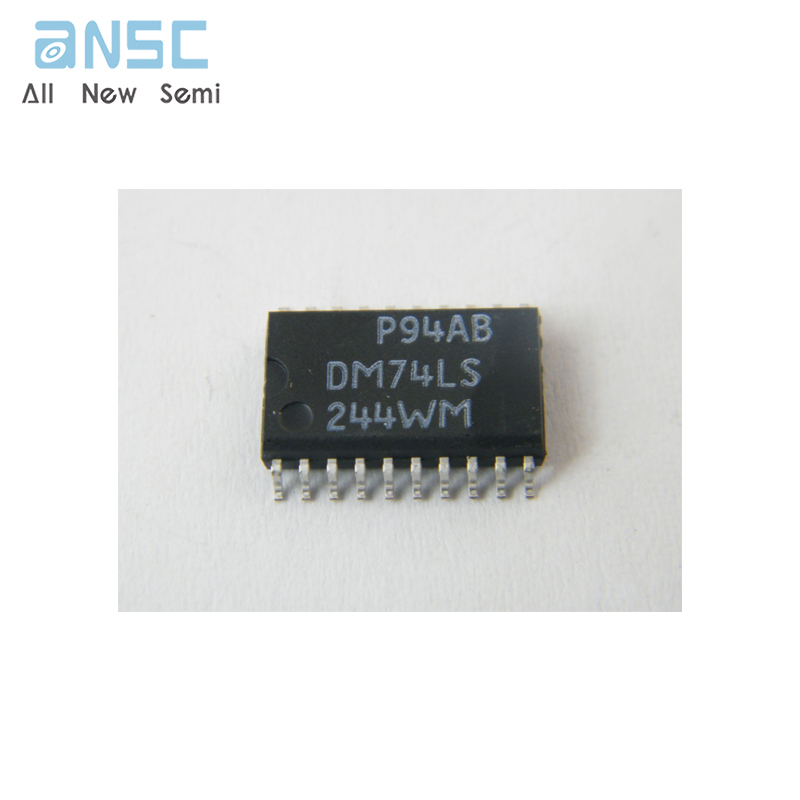

Product Photos
For more product information, please download the PDF
