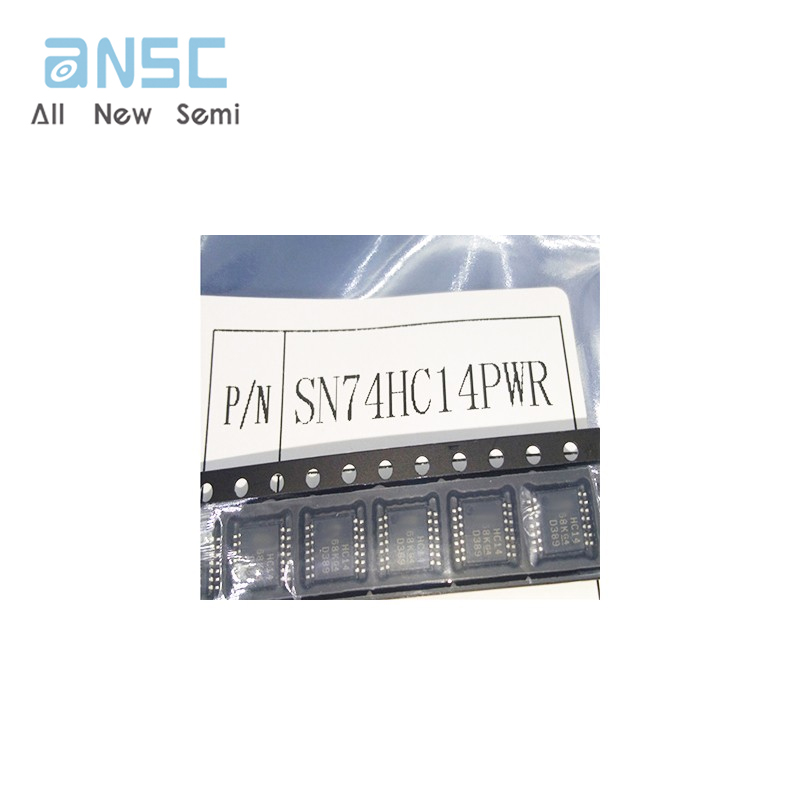

Hot sale Original SN74HC14PWR IC INVERTER 6CH 1-INP 14TSSOP Inverter IC 6 Channel Schmitt Trigger

Product Description:

The SN74HC14PWR is a 14-pin, surface-mount, Schmitt Trigger Inverter IC, part of the HC/UH family. This active, lead-free, and RoHS3 compliant IC is designed for use in a variety of applications where high-speed, low-power, and low-voltage operation is required.

Features:

Schmitt Trigger: The IC features a Schmitt Trigger input stage, which provides a clean and noise-free output signal.
High-Speed Operation: The IC operates at a maximum propagation delay of 21ns at 6V and 50pF, making it suitable for high-speed digital systems.
Low Power Consumption: The IC has a quiescent current of 2μA and a maximum power supply current of 0.02mA, making it energy-efficient.
Wide Operating Temperature Range: The IC operates from -40°C to 85°C, making it suitable for use in a wide range of environments.
Applications:

Primary Applications: The IC is suitable for use in digital logic circuits, such as data transmission systems, data processing systems, and digital control systems.
Secondary Applications: The IC can also be used in other applications where high-speed, low-power, and low-voltage operation is required, such as in automotive systems, industrial control systems, and medical devices.
