Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original 74HC4051D IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 3.90 MM, PLASTIC
Manufacturer Product Number
74HC4051D
Description
74HC4051D IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 3.90 MM, PLASTIC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

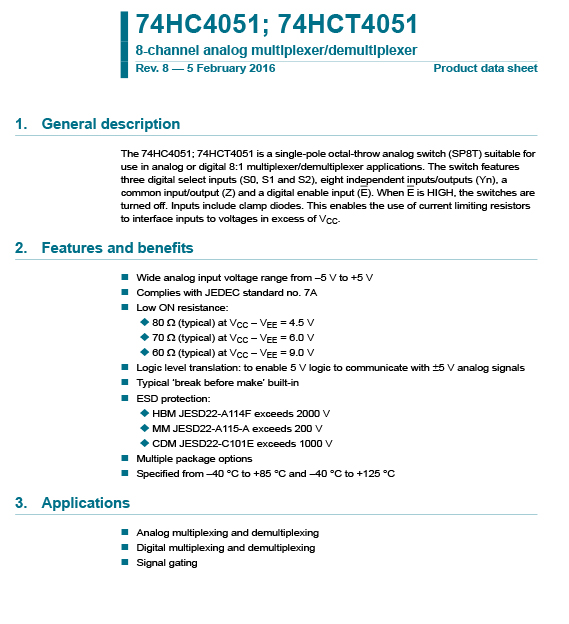

| General description The 74HC4051; 74HCT4051 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard no. 7A. Features and benefits ■ Wide analog input voltage range from -5 V to +5 V ■ Low ON resistance: ◆ 80 Ω (typical) at VCC - VEE = 4.5 V ◆ 70 Ω (typical) at VCC - VEE = 6.0 V ◆ 60 Ω (typical) at VCC - VEE = 9.0 V ■ Logic level translation: to enable 5 V logic to communicate with 5 V analog signals ■ Typical ‘break before make’ built-in ■ ESD protection: ◆ HBM JESD22-A114F exceeds 2000 V ◆ MM JESD22-A115-A exceeds 200 V ◆ CDM JESD22-C101E exceeds 1000 V ■ Multiple package options ■ Specified from -40 °C to +85 °C and -40 °C to +125 °C Applications ■ Analog multiplexing and demultiplexing ■ Digital multiplexing and demultiplexing ■ Signal gating |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74HC4051D |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | SOP, SOP16,.25 |
| Pin Count | 16 |
| Additional Feature | ALSO OPERATES ON VCC-VEE 2 V TO 10 V SUPPLY |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER |
| Length | 9.9 mm |
| Moisture Sensitivity Level | 1 |
| Number of Channels | 8 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Off-state Isolation-Nom | 50 dB |
| On-state Resistance Match-Nom | 9 Ω |
| On-state Resistance-Max (Ron) | 180 Ω |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Signal Current-Max | 0.025 A |
| Supply Voltage-Max (Vsup) | 10 V |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Switch-off Time-Max | 87 ns |
| Switch-on Time-Max | 104 ns |
| Switching | BREAK-BEFORE-MAKE |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3.9 mm |

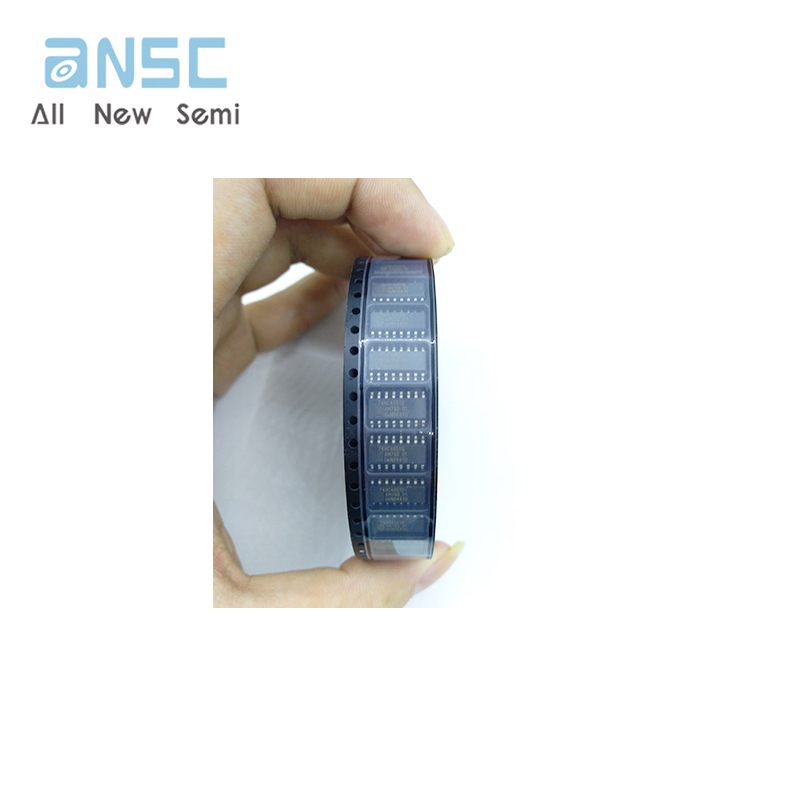

Product Photos

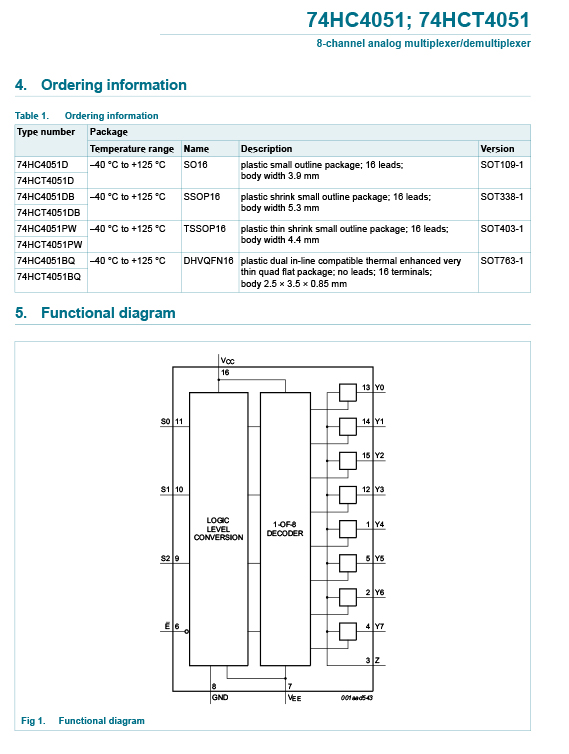

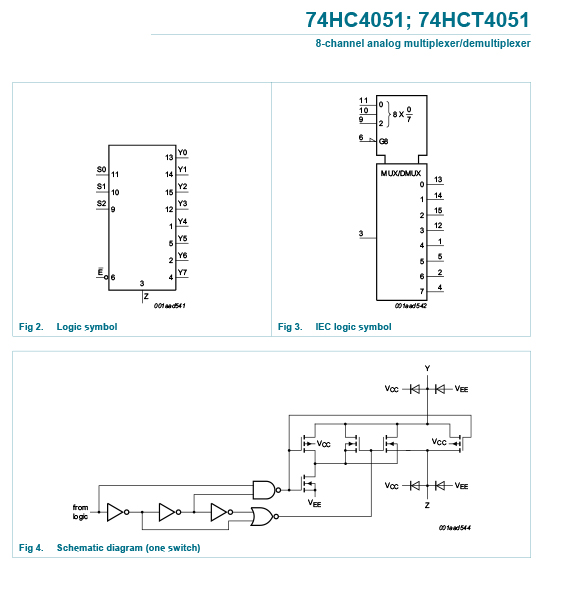

Product datasheet
For more information, please download
