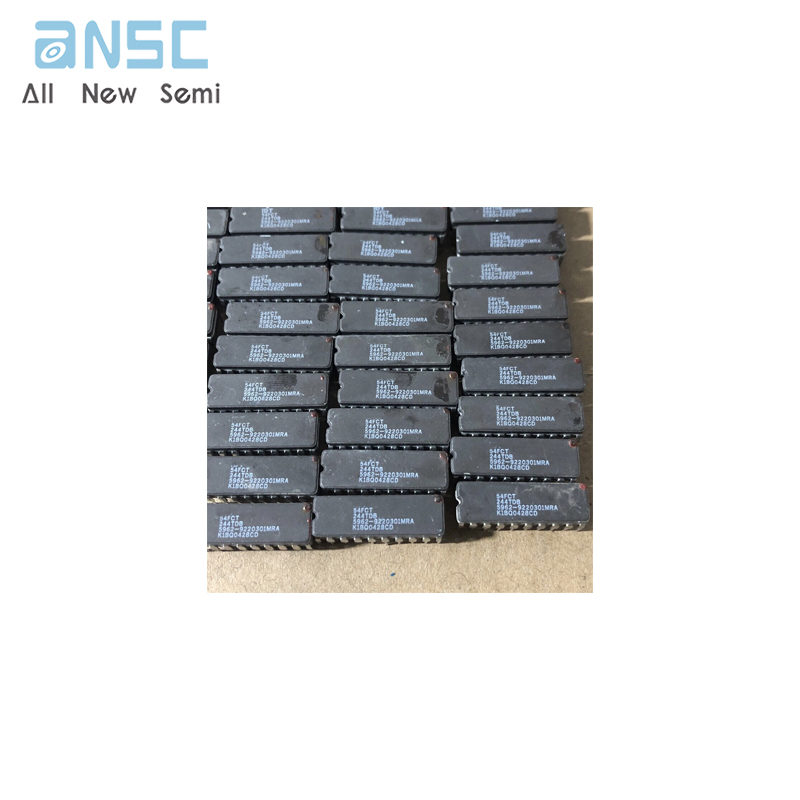

Hot-selling and scarce IDT54FCT244TDB BUFFER/LINE DRIVER IC DIP spot stock
Manufacturer Product Number
IDT54FCT244TDB
Description
IDT54FCT244TDB BUFFER/LINE DRIVER IC DIP spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The octal buffer/line driver is built using an advanced dual metal CMOS technology. The FCT244T is designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/ receiver which provides improved board density .
Product Features
• Std., A, and C grades
• Low input and output leakage ≤1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
– VOH = 3 .3V (typ .)
– VOL = 0 .3V (typ .)
• High Drive outputs (-15mA IOH, 64mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
– Industrial: SOIC, SSOP, QSOP, TSSOP
– Military: CERDIP,LCC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IDT54FCT244TDB |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 48mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP |
| Base Product Number | 54FCT244 |
