Spot sales of SN74HC244DWR Octal Buffers and Line Drivers With 3-State Outputs SOP20
Manufacturer Product Number
SN74HC244DWR
Description
SN74HC244DWR Octal Buffers and Line Drivers With 3-State Outputs SOP20
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SNx4HC244 octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4HC244 devices are organized as two 4- bit buffers and drivers with separate output-enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the highimpedance state.
Product Features
• Wide operating voltage range of 2V to 6V
• High-current outputs drive up to 15 LSTTL loads
• 3-state outputs drive bus lines or buffer memory address registers
• Low power consumption: ICC, 80µA (maximum)
• Typical tpd = 11ns
• ±6mA output drive at 5V
• Low input current of 1µA (maximum)
• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted.
On all other products, production processing does not necessarily include testing of all parameters.
Product Applications
• Servers
• LED Displays
• Network Switches
• Telecom Infrastructure
• Motor Drivers
• I/O Expanders
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HC244DWR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | Texas Instruments |
| Series | 74HC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74HC244 |

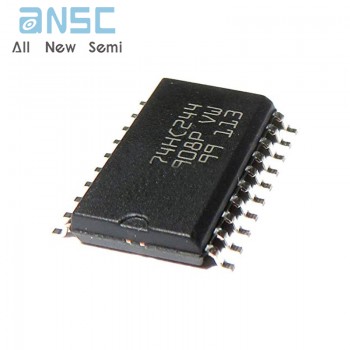

Product Photos
For more product information, please download the PDF
