Hot-selling and scarce ADM202JRN High Speed, +5 V, 0.1 uF CMOS RS-232 Driver/Receivers SOP16 spot stock
Manufacturer Product Number
ADM202JRN
Description

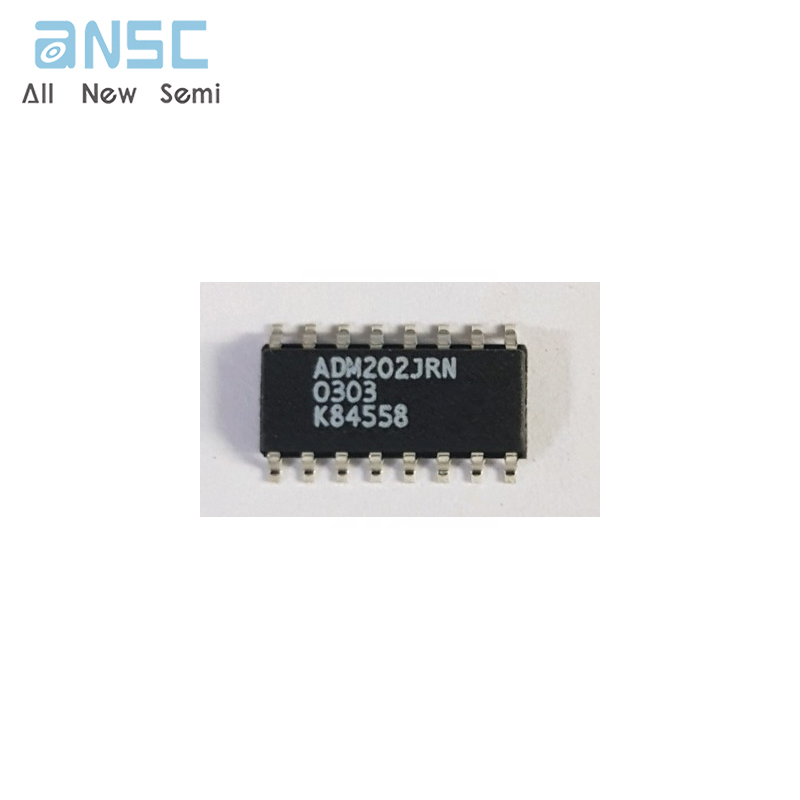

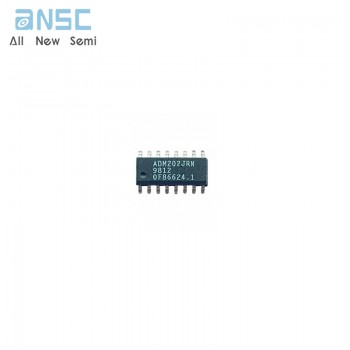

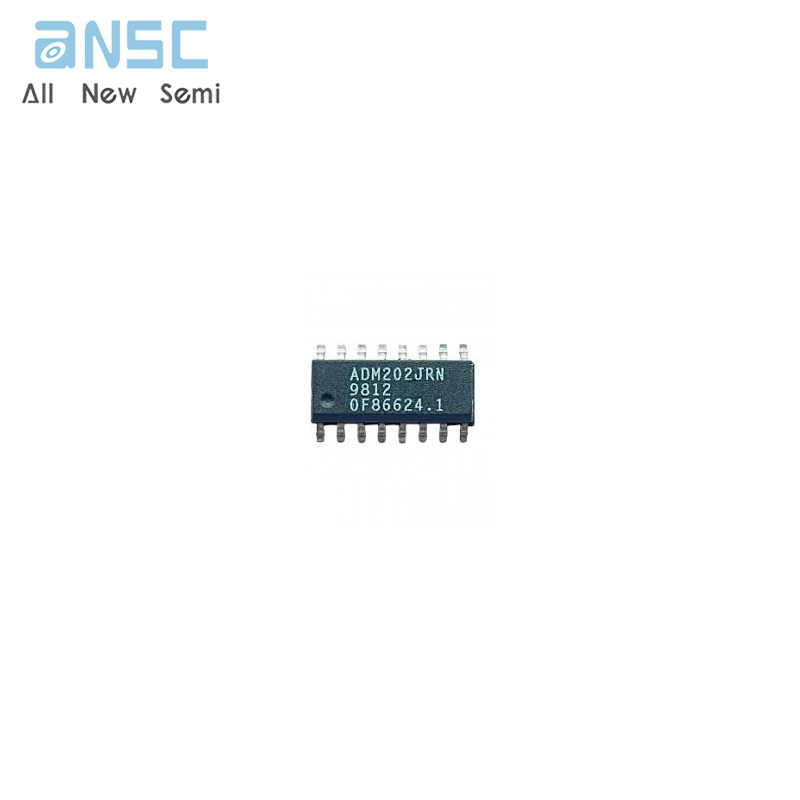

ADM202JRN High Speed, +5 V, 0.1 uF CMOS RS-232 Driver/Receivers SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADM202/ADM203 is a two-channel RS-232 line driver/receiver pair designed to operate from a single +5 V power supply . A highly efficient on-chip charge pump design permitsRS-232 levels to be developed using charge pump capacitors assmall as 0.1 µF . The capacitors are internal to the package onthe ADM203 so no external capacitors are required . These converters generate ±10 V RS-232 output levels .
The ADM202/ADM203 meets or exceeds the EIA-232-E andV.28 specifications . Fast driver slew rates permit operation up to120 kB while high drive currents allows for extended cablelengths .
An epitaxial BiCMOS construction minimizes power consumption to 10 mW and also guards against latch-up . Overvoltageprotection is provided allowing the receiver inputs to withstandcontinuous voltages in excess of ±30 V . In addition, all pinscontain ESD protection to levels greater than 2 kV .
The ADM202 is available in 16-lead DIP and both narrow andwide SOIC packages . The ADM203 is available in a 20-pin DIPpackage .
Product Features
120 kB Transmission Rate
ADM202: Small (0.1 F) Charge Pump Capacitors
ADM203: No External Capacitors Required
Single 5 V Power Supply
Meets EIA-232-E and V.28 Specifications
Two Drivers and Two Receivers
On-Board DC-DC Converters
9 V Output Swing with +5 V Supply
Low Power BiCMOS: 2.0 mA ICC
30 V Receiver Input Levels
Product Applications
Computers
Peripherals
Modems
Printers
Instruments
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADM202JRN |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 46055 |
| Duplex | Full |
| Receiver Hysteresis | 400 mV |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADM202 |
