Hot-selling and scarce ST232CDR 5 V powered multi-channel RS-232 drivers and receivers SOP16 spot stock
Manufacturer Product Number
ST232CDR
Description
ST232CDR 5 V powered multi-channel RS-232 drivers and receivers SOP16 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ST232 is a 2 driver, 2 receiver device following EIA/TIA-232 and V.28 communication standard. It is particularly suitable for applications where ±12 V is not available. The ST232 uses a single 5 V power supply and only four external capacitors (0.1 µF). Typical applications are in:
portable computers, low power modems, interfaces translation, battery powered RS-232 system, multi-drop RS-232 networks.
Product Features
■ Supply voltage range: 4.5 to 5.5 V
■ Supply current no load (typ.): 5 mA
■ Transmitter output voltage swing (typ): ±7.8 V
■ Controlled output slew rate
■ Receiver input voltage range: ± 30 V
■ Data rate (typ.): 220 kbps
■ Operating temperature range:
– -40 ° to 85 °C
– 0 ° to 70 °C
■ Compatible with MAX232 and MAX202
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ST232CDR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 500 mV |
| Data Rate | 220Kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | ST232 |

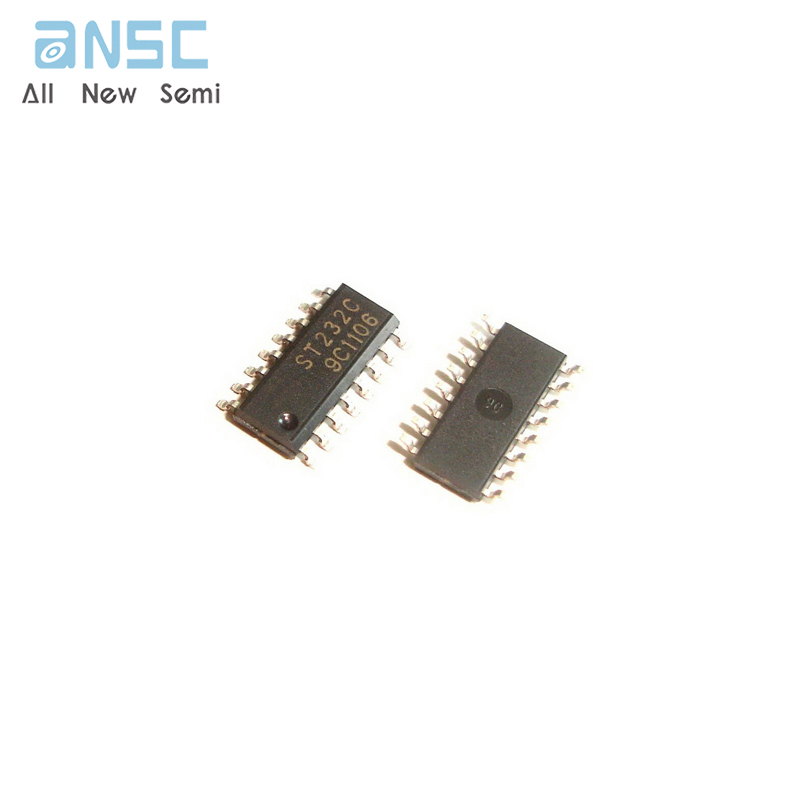

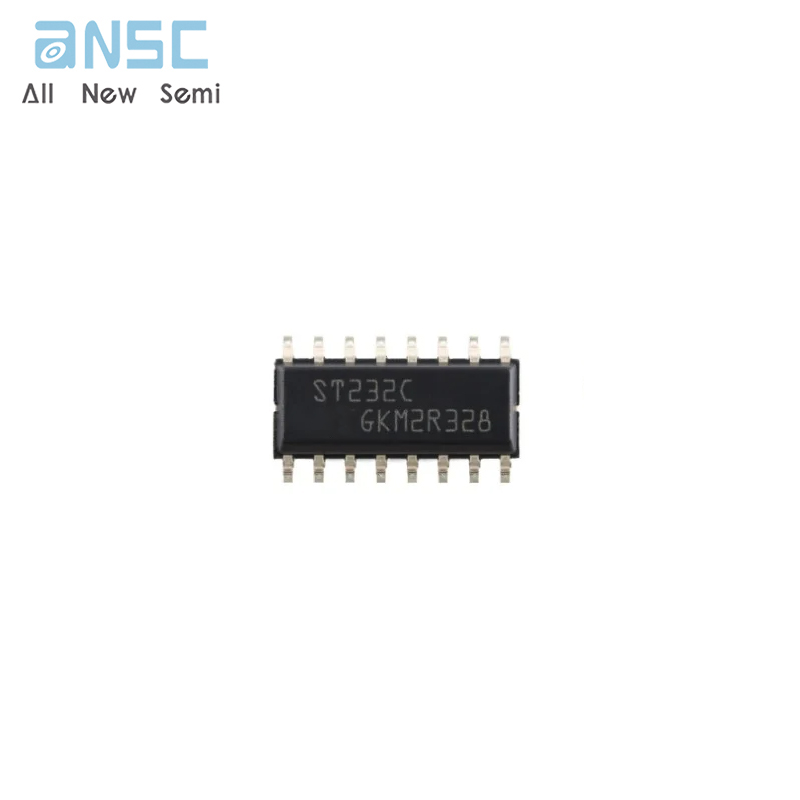

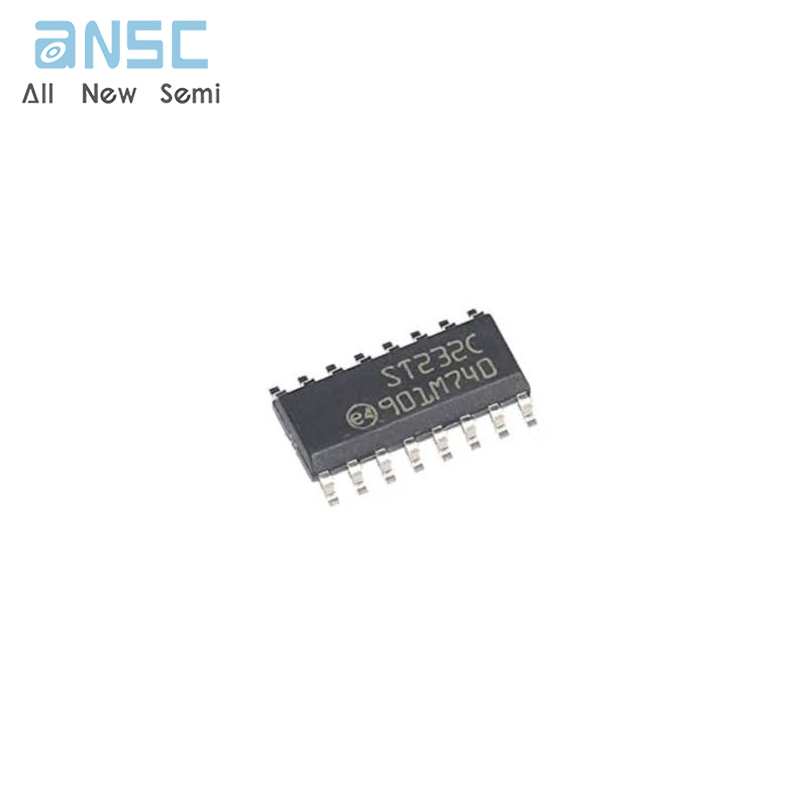

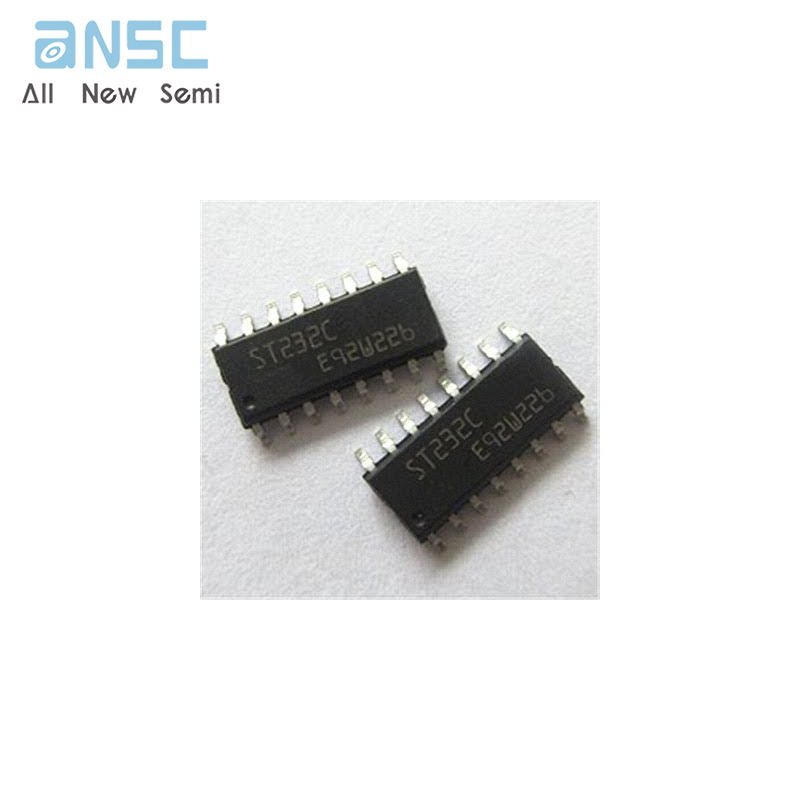

Product Photos
For more product information, please download the PDF
