Hot-selling and scarce 74LVT16244BDGG 3.3V 16-bit buffer/driver (3-State) TSSOP48 spot stock

Product Descriptions

The 74LVT16244B is a high-performance BiCMOS product designed for V CC operation at 3.3V.

This device is a 16-bit buffer and line driver featuring non-inverting3-State bus outputs. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.​

Product Features

•16-bit bus interface

•3-State buffers

•Output capability: +64mA/-32mA

•TTL input and output switching levels

•Input and output interface capability to systems at 5V supply

•Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs

•Live insertion/extraction permitted

•Power-up 3-State

•No bus current loading when output is tied to 5V bus

•Latch-up protection exceeds 500mA per JEDEC Std 17

•ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

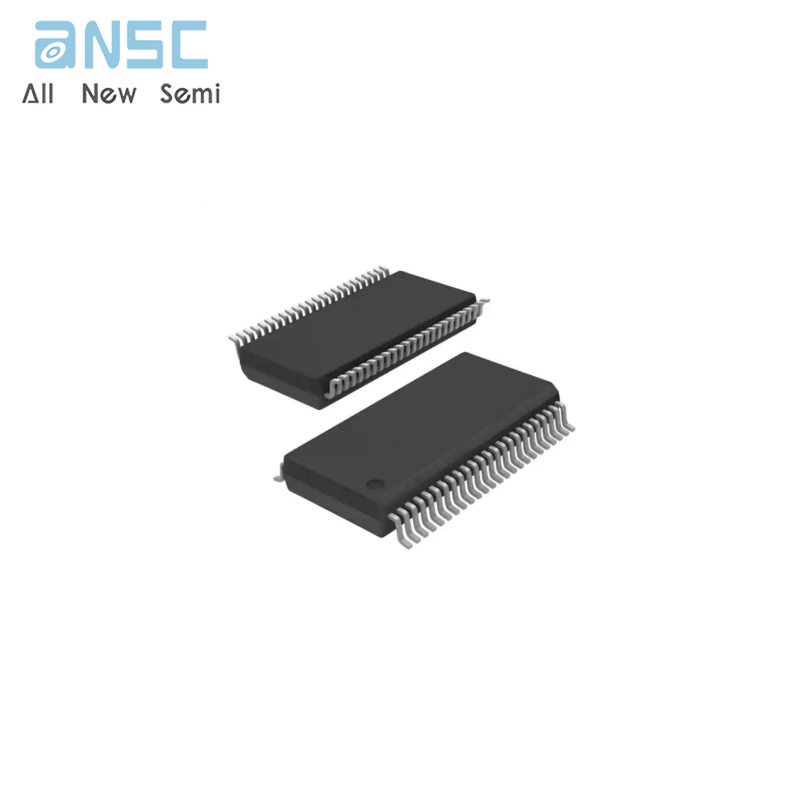

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
