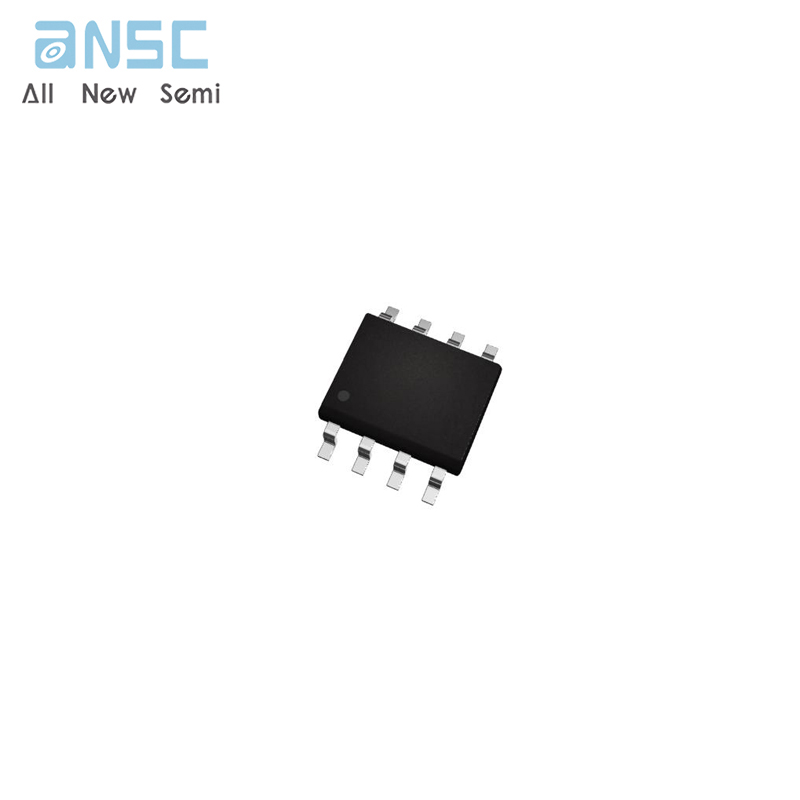

Hot-selling and scarce ATTL7591AS-TR Subscriber Line Interface Circuit Protector SOP8 spot stock

Product Descriptions

The L7591 Subscriber Line Interface Circuit (SLIC)  Protector is designed to protect line-feed circuitry  from fault-induced lightning and power-cross surge  pulses. If a fault current forces TIP and/or RING to a  more negative voltage than VS, current is conducted  through the trip circuit. When the specified trip current level is reached, transistors PNPN1 and/or  PNPN2 will turn on and "crowbar" the majority of the  current to ground. If similar pulses force TIP and/or  RING to a more positive state than ground, diodes  D1 and/or D2 will conduct the pulse to ground. The  L7591 SLIC Protector is available in an 8-pin, plastic  DIP (L7591AB) and in an 8-pin, plastic SONB package (L7591AS).

Product Features

■ Shunts lightning pulses to ground

— Positive or negative 30 A, 10 x 1000 µs

— Positive or negative 40 A, 5 x 320 µs

— Positive or negative 80 A, 2 x 10 µs

■ Power-cross protection

— 3.5 APEAK, 50 Hz to 60 Hz, 1 s

— 5.0 APEAK, 50 Hz to 60 Hz, 10 ms

■ Gate trigger current, 15 mA max

■ Up to –80 V capability

■ Holding current, 150 mA min

​
