Hot-selling and scarce 74LVT244AD 3.3V Octal buffer/line driver 3-State SOP20 spot stock

Product Descriptions

​

The LVT244A is a high-performance BiCMOS product designed for VCC operation at 3.3V.

This device is an octal buffer that is ideal for driving bus lines. The device features two Output Enables (OE1, OE2), each controlling four of the 3-State outputs.

Product Features

• Octal bus interface

• 3-State buffers

• Output capability: +64mA/-32mA

• TTL input and output switching levels

• Input and output interface capability to systems at 5V supply

• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs

• Power-up 3-State

• Live insertion/extraction permitted

• No bus current loading when output is tied to 5V bus

• Latch-up protection exceeds 500mA per JEDEC Std 17

• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

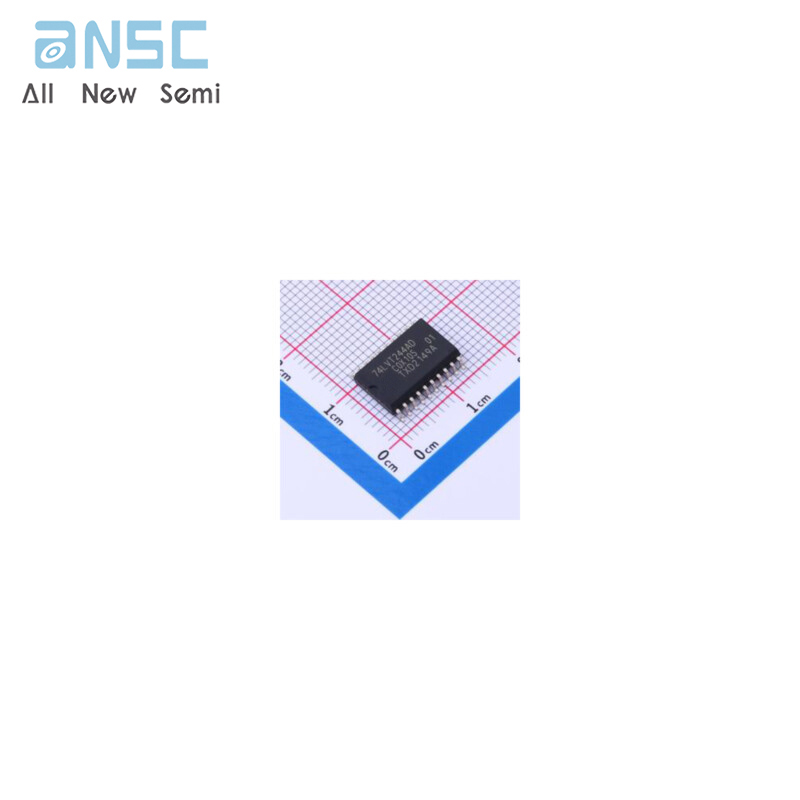

Product Photos

For more product information, please download the PDF
