Hot-selling and scarce DS1489N Quad Line Receiver IC DIP14 spot stock
Manufacturer Product Number
DS1489N
Description
DS1489N Quad Line Receiver IC DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The DS1489/DS1489A are quad line receivers designed to interface data terminal equipment with data communications equipment. They are constructed on a single monolithic silicon chip. These devices satisfy the specifications of EIA Standard RS-232D. The DS1489/DS1489A meet and exceed the specifications of MC1489/MC1489A and are pin-for-pin replacements.
Product Features
n Four separate receivers per package
n Programmable threshold
n Built-in input threshold hysteresis
n “Fail safe” operating mode: high output for open inputs
n Inputs withstand ±30V
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DS1489N |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Receiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 0/4 |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |

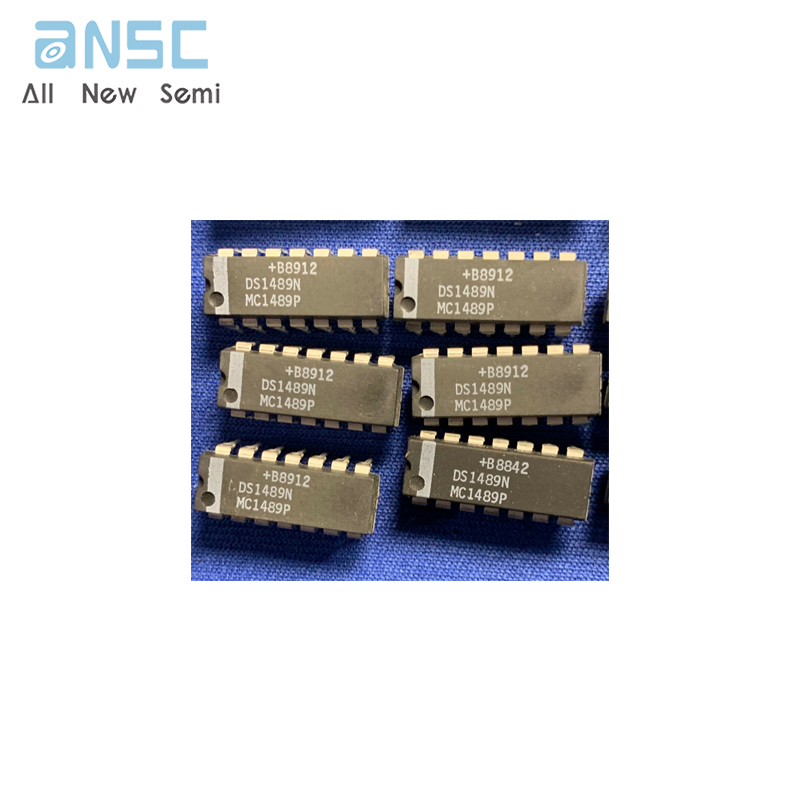

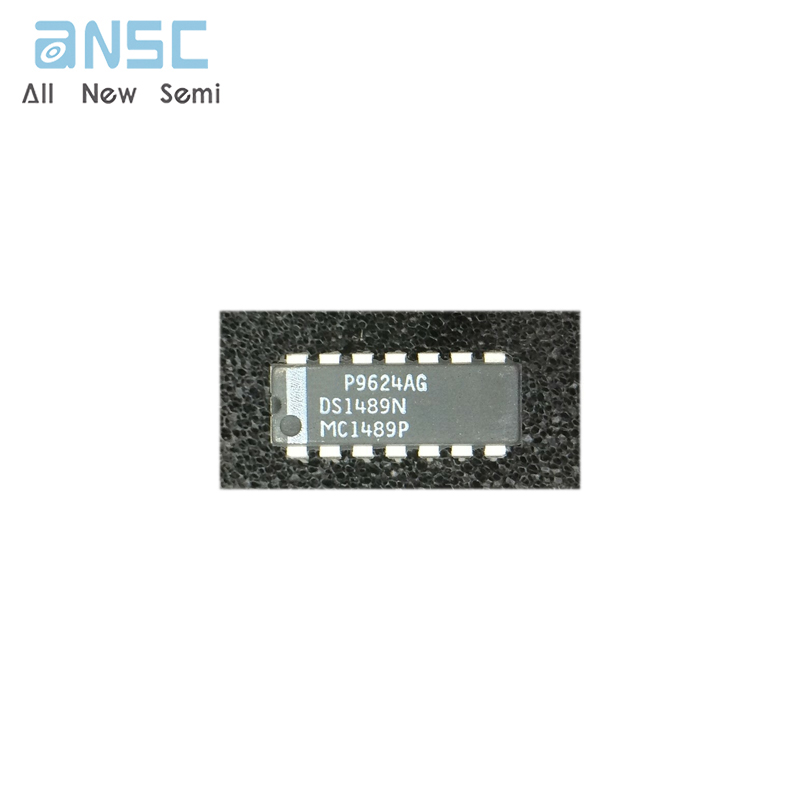

Product Photos
For more product information, please download the PDF
