Hot-selling and scarce LE87281NQC Fast Single Channel Line Driver QFN spot stock
Manufacturer Product Number
LE87281NQC
Description
LE87281NQC Fast Single Channel Line Driver QFN spot stock
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The Le87281 is a single channel differential amplifier designed to drive G.Fast transmission signals as well as VDSL2 and ADSL2+ signals with very low power dissipation. The Le87281 contains a pair of wideband amplifiers designed with Microsemi’s HV15 Bipolar SOI process for low power consumption.
The line driver gain is fixed internally. The amplifiers are powered from a single supply.
The device can be programmed to one-of-three preset Bias levels or to impedance controlled Disable or Standby states. The control pins respond to input levels that can be generated with a standard tri-state GPIO.

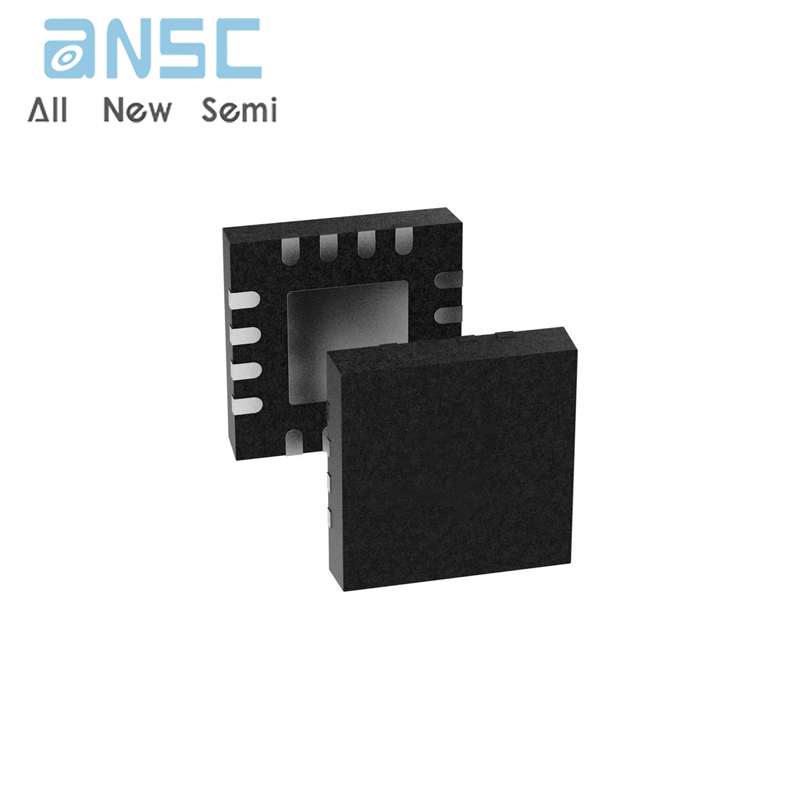

The Le87281 is available in a 16-pin (4 mm x 4 mm) QFN package with exposed pad for enhanced thermal conductivity.
Product Features
• Supports high frequency G.Fast transmission
• Supports VDSL2 and ADSL2+ operation
• Very low power dissipation
– Class AB operation
• 5 programmable states
• No external gain resistors required
• Small footprint package
– 16-pin (4 mm x 4 mm) QFN
• RoHS compliant
Product Applications
• G.Fast Line Driver
• VDSL2 Line Driver
• ADSL2+ CPE Line Driver
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LE87281NQC |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Active |
| Type | Driver |
| Protocol | ADSL2, VDSL2 |
| Number of Drivers/Receivers | 2/0 |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Base Product Number | LE87281 |
Product Photos
For more product information, please download the PDF
