Hot-selling and scarce NCP81166AMNTBG Synchronous Buck MOSFET Drivers DFN8 spot stock

Product Descriptions

The NCP81166/A is a high performance dual MOSFET gate driveroptimized to drive the gates of both high−side and low−side powerMOSFETs in a  synchronous buck converter. 2mm x 2mm DFN8package allows for space−optimized board layout .

Zero current detect feature allows for a high−efficiency solutioneven at light load conditions . Pre−OVP feature aids in protecting theload in the event of a short across the high−side FET. _V CC UVLOensures  the  MOSFETs  are  off when  supply  voltages  are  low.  Abi−directional Enable pin provides a fault signal to the controllerwhen a pre−OVP or UVLO fault is detected .

Product Features

• Space−Efficient 2 mm x 2mm DFN8 Thermally−Enhanced Package

• V CC Range of 4.5 V to 13.2 V

• Integrated Bootstrap Diode

• Pre−OVP Function Protects Load during HS FET Short

♦  NCP81166: 2.25 V SW Trip Threshold

♦  NCP81166A: 1.8 V SW Trip Threshold

• Zero Current Detect Function Provides Power Saving Operation during Light Load Conditions

• Bi−directional Enable Feature pulls Enable pin low during pre−OVP and UVLO Faults

• 5 V tri−state PWM Logic

• Adaptive Anti−Cross−Conduction Circuit Protects against Cross−Conduction during FET turn−on and turn−off

• Output Disable Control turns off both MOSFETs via Enable pin

• VCC Undervoltage Lockout

• Direct interface to ASP 1252, ASP1400 and other compatible PWM Controllers

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Product Applications

• Power Solutions for Desktop Systems

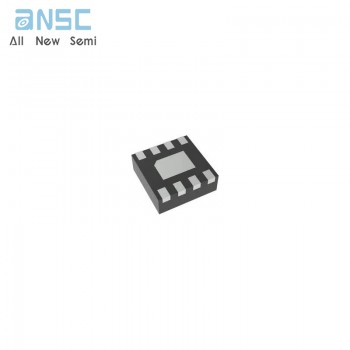

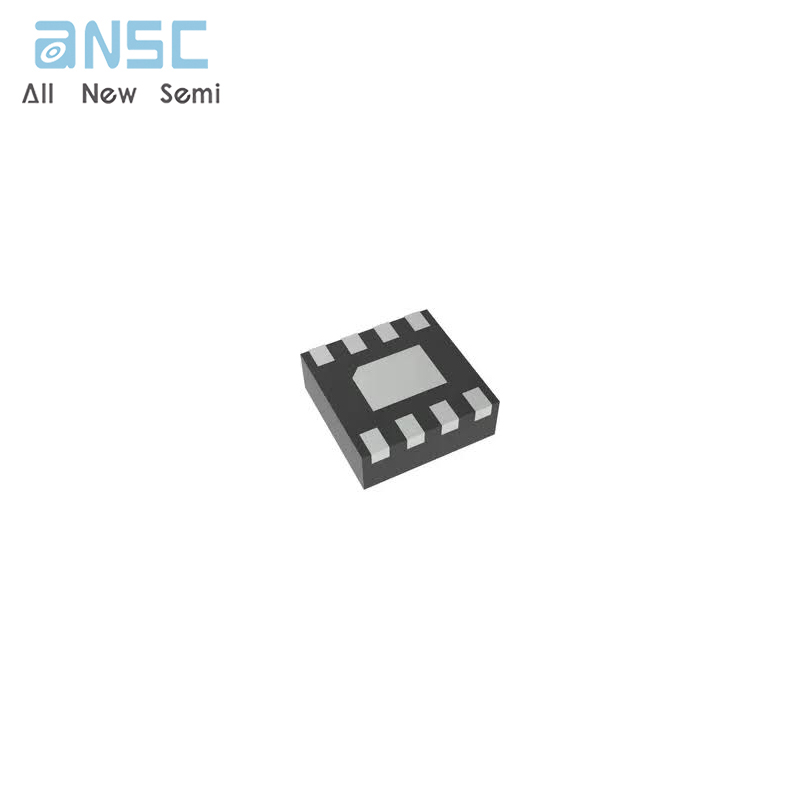

Product Photos

        For more product information, please download the PDF
