Hot-selling and scarce IDT49FCT3805AQGI FAST CMOS BUFFER/CLOCK DRIVER SSOP20 spot stock

 Product Descriptions

The 49FCT805 is a non-inverting buffer/clock driver built using advanced dual metal CMOS technology . Each bank consists of two banks ofdrivers .   Each bank drives five output buffers from a standard TTLcompatible input .   These devices feature a“heart-beat” monitor fordiagnostics and PLL driving . The MON output is identical to all other outputsand complies with the output specifications in this document .

The 49FCT805 offers low capacitance inputs and hysteresis . Rail-to-railoutput swing improves noise margin and allows easy interface with CMOSinputs .

 Product Features

•  0.5 MICRON CMOS Technology

•  Guaranteed low skew < 700ps (max.)

•  Low duty cycle distortion < 1ns (max.)

•  Low CMOS power levels

•  TTL compatible inputs and outputs

•  Rail-to-rail output voltage swing

•  High drive: -24mA IOH, +64mA IOL

•  Two independent output banks with 3-state control

•  1:5 fanout per bank

•  "Heartbeat" monitor output

•  Available in SSOP and SOIC packages

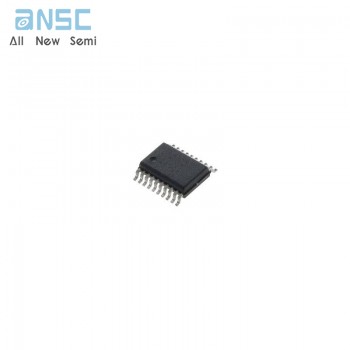

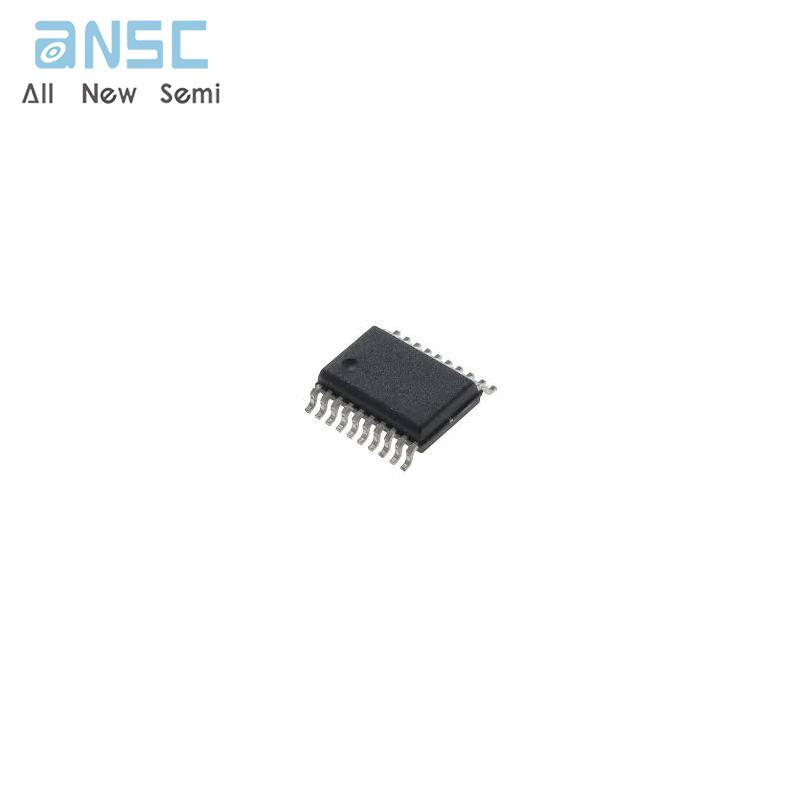

 Product Photos

For more product information, please download the PDF
