Hot-selling and scarce 74VHC541BQ Octal buffer/line driver 3-state QFN spot stock

Product Descriptions

The 74VHC541; 74VHCT541 are high-speed Si-gate CMOS devices.

The 74VHC541; 74VHCT541 are octal non-inverting buffer/line drivers with 3-state bus compatible outputs.

The 3-state outputs are controlled by the output enable inputs OE0 and OE1.

​

A HIGH on OEn causes the outputs to assume a high-impedance OFF-state.

Product Features

■ Balanced propagation delays

■ All inputs have a Schmitt-trigger action

■ Inputs accepts voltages higher than VCC

■ The 74VHC541 operates with CMOS input level

■ The 74VHCT541 operates with TTL input level

■ ESD protection:

◆ HBM JESD22-A114E exceeds 2000 V

◆ MM JESD22-A115-A exceeds 200 V

◆ CDM JESD22-C101C exceeds 1000 V

■ Multiple package options

■ Specified from −40 °C to +85 °C and from −40 °C to +125 °C

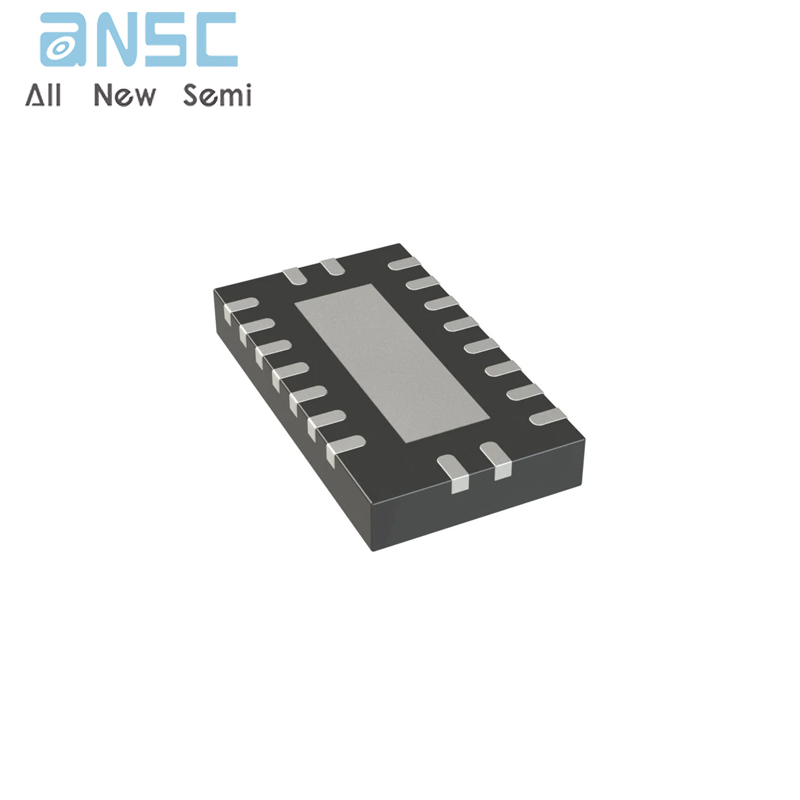

Product Photos

For more product information, please download the PDF
