JM38510/32403BRA/JD54LS244BRA OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS CDIP20 spot stock

Product Descriptions

These octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS’ and SN74S’ devices can be used to drive terminated lines down to 133 Ω.

Product Features

3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

PNP Inputs Reduce DC Loading

Hysteresis at Inputs Improves Noise Margins

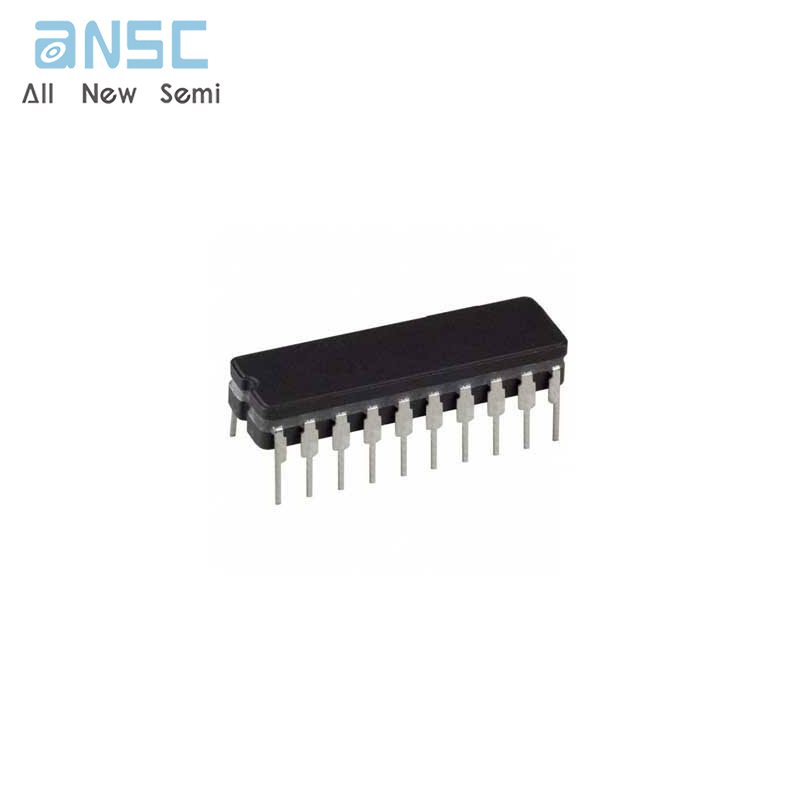

Product Photos

For more product information, please download the PDF
