Hot-selling and scarce SN75188N QUADRUPLE LINE DRIVERS DIP14 spot stock
Manufacturer Product Number
SN75188N
Description
SN75188N QUADRUPLE LINE DRIVERS DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC1488, SN55188, and SN75188 are monolithic quadruple line drivers designed to interface data terminal equipment with data communications equipment in conformance with ANSI EIA/TIA-232-E using a diode in series with each supply-voltage terminal as shown under typical applications.
The SN55188 is characterized for operation over the full military temperature range of –55°C to 125°C. The MC1488 and SN75188 are characterized for operation from 0°C to 70°C.
Product Features
Meet or Exceed the Requirements of ANSI EIA/TIA-232-E and ITU Recommendation V.28
Designed to Be Interchangeable With Motorola MC1488
Current-Limited Output: 10 mA Typical
Power-Off Output Impedance: 300 Ω Minimum
Slew Rate Control by Load Capacitor
Flexible Supply Voltage Range
Input Compatible With Most TTL Circuits
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN75188N |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Driver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 4/0 |
| Voltage - Supply | ±7.5V ~ 15V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Base Product Number | SN75188 |

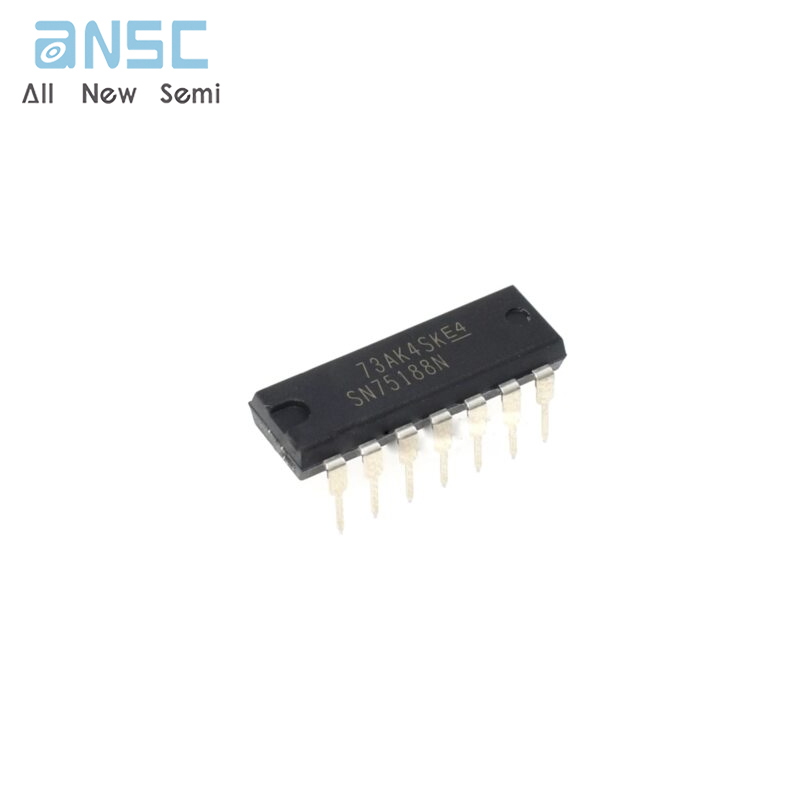

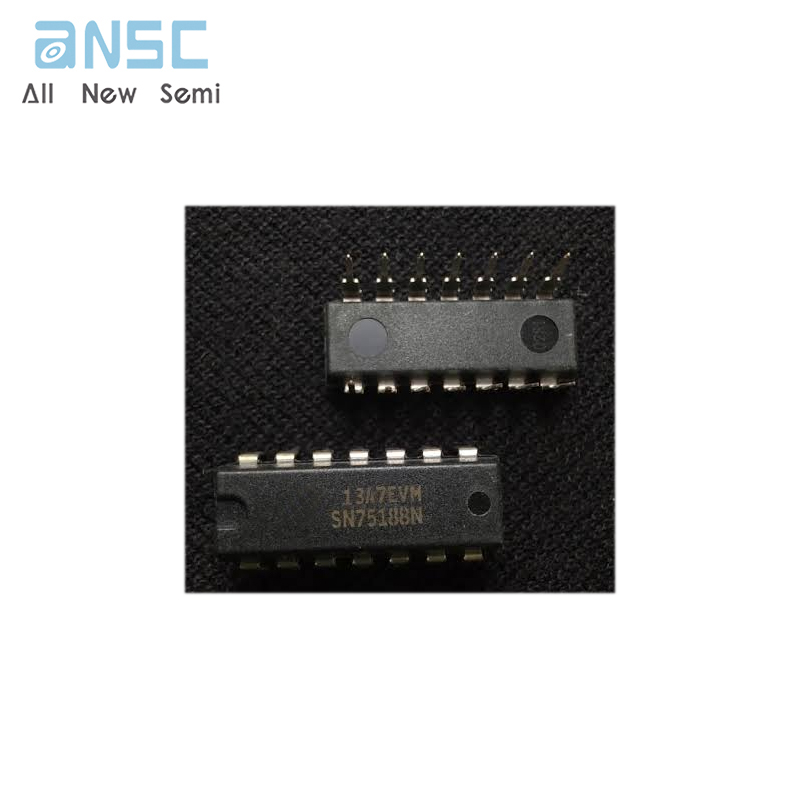

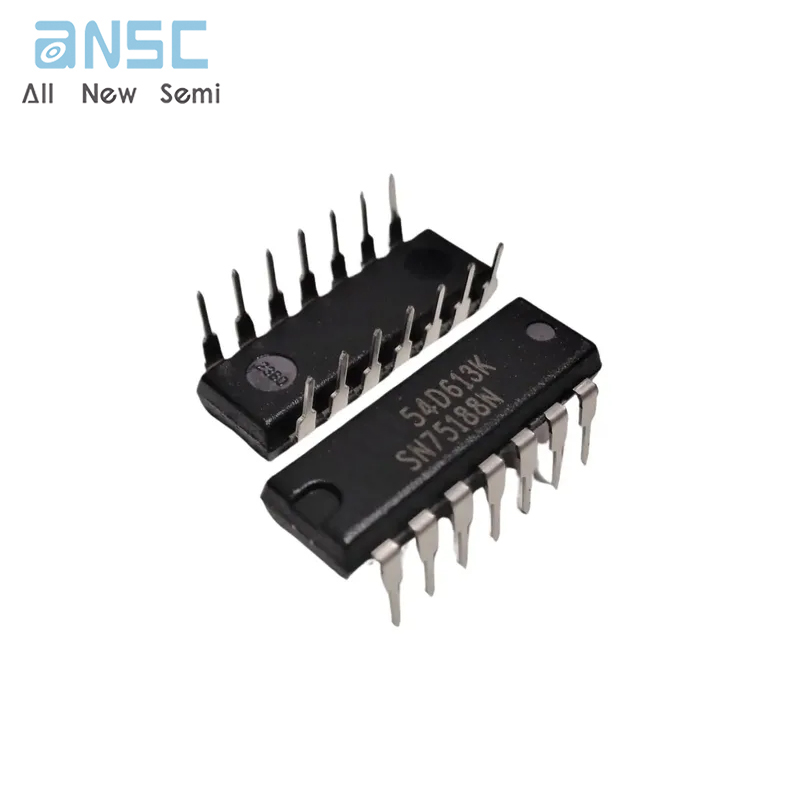

Product Photos
For more product information, please download the PDF
