Hot-selling and scarce SN74LVT16244BDGGR 3-V ABT 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS TSSOP48 spot stock

Product Descriptions

The 'LVT16244B devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable (OE) inputs.

When VCC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

These devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Product Features

• Member of the Texas Instruments Widebus™ Family

• State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation

• Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)

• Support Unregulated Battery Operation Down to 2.7 V

• Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C

• Ioff and Power-Up 3-State Support Hot Insertion

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

– 1000-V Charged-Device Model (C101)

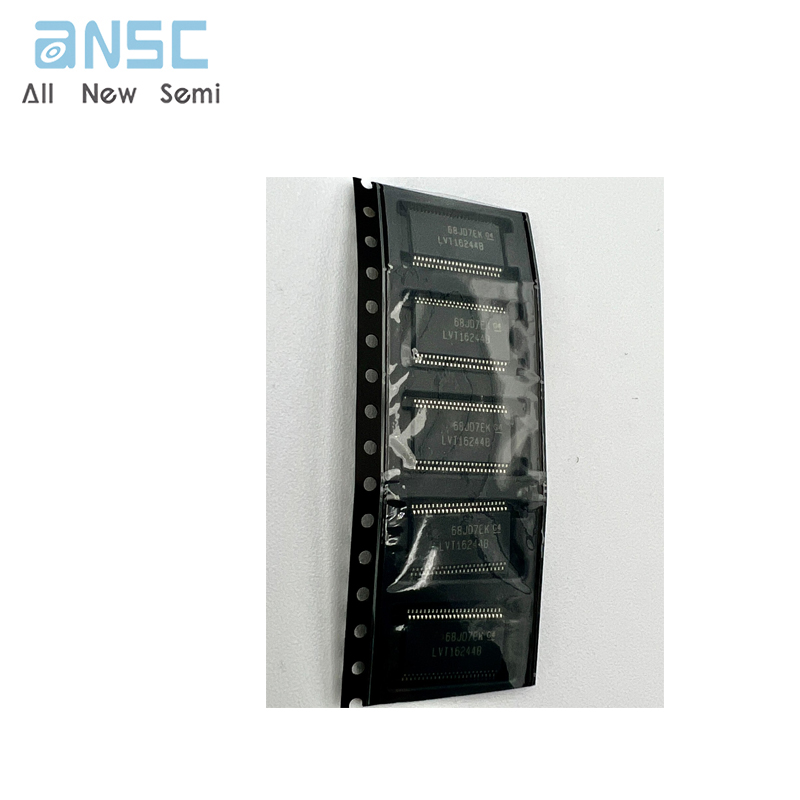

Product Photos

For more product information, please download the PDF
