Hot-selling and scarce MSP430F2013IPWR MIXED SIGNAL MICROCONTROLLER TSSOP14 spot stock

Product Descriptions

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430F20xx series is an ultra-low-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. In addition, the MSP430F20x1 has a versatile analog comparator. The MSP430F20x2 and MSP430F20x3 have built-in communication capability using synchronous protocols (SPI or I2C) and a 10-bit A/D converter (MSP430F20x2) or a 16-bit sigma-delta A/D converter (MSP430F20x3).

Product Features

• Low Supply Voltage Range 1.8 V to 3.6 V

• Ultra-Low Power Consumption

– Active Mode: 220 µA at 1 MHz, 2.2 V

– Standby Mode: 0.5 µA

– Off Mode (RAM Retention): 0.1 µA

• Five Power-Saving Modes

• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs

• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time

• Basic Clock Module Configurations:

– Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%

– Internal Very Low-Power Low-Frequency Oscillator

– 32-kHz Crystal

– External Digital Clock Source

• 16-Bit Timer_A With Two Capture/Compare Registers

Product Specification

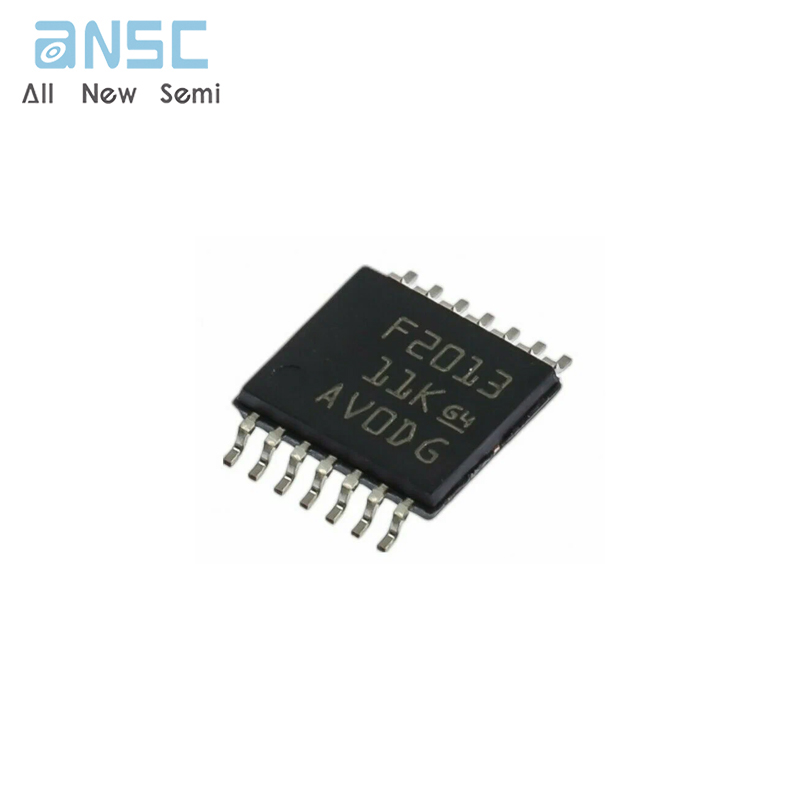

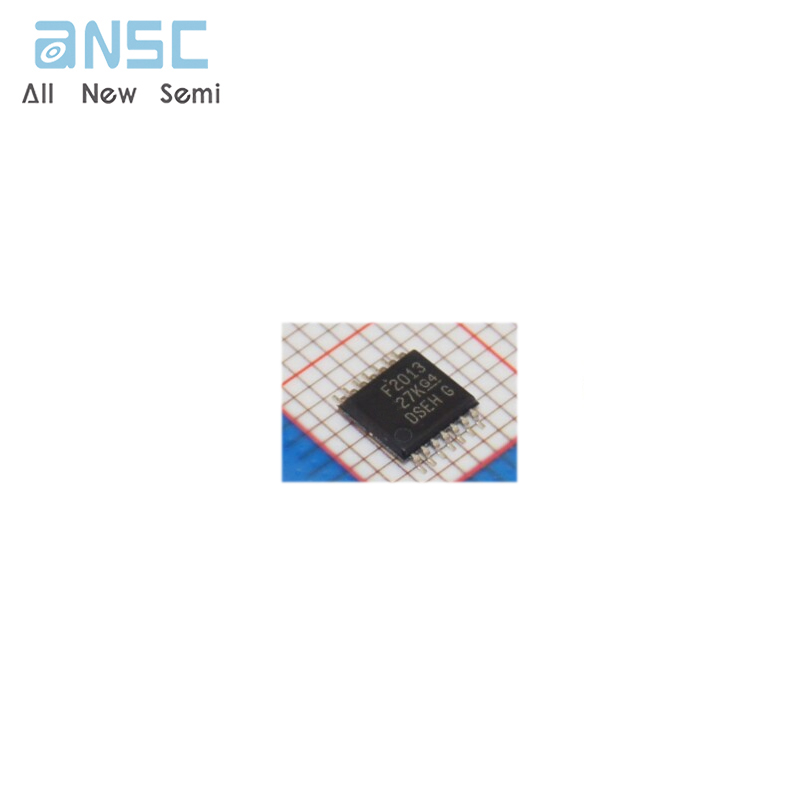

Product Photos

For more product information, please download the PDF
